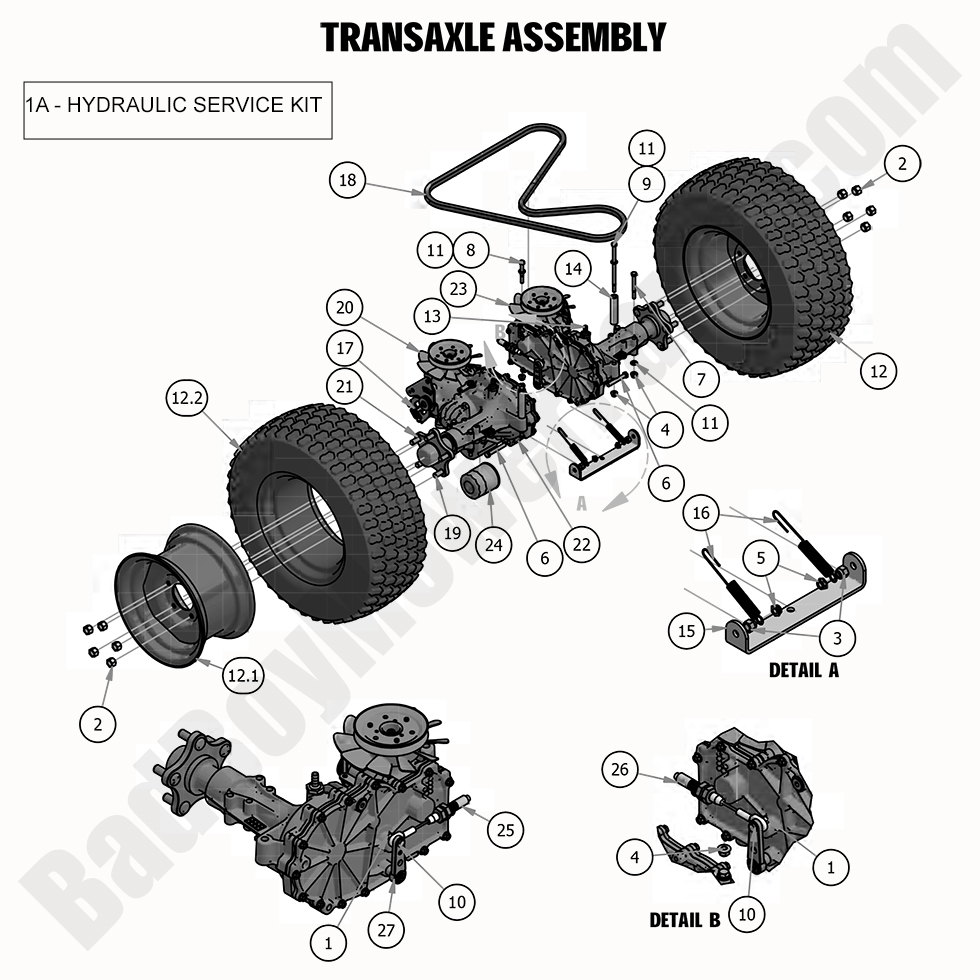

2020 Compact Outlaw - Transaxle Assembly

2020 Compact Outlaw - Transaxle Assembly

The 2020 Compact Outlaw Transaxle Assembly is essential for the drivetrain of your mower, helping transfer power to the wheels. If you need to replace or repair the transaxle, we offer an extensive selection of Bad Boy Mower Parts to suit your needs. Our Bad Boy Mower Part diagrams make it easy to identify the specific components needed for your transaxle assembly. We carry Bad Boy Lawn Mower Parts that ensure smooth operation and durability, helping you maintain your mower’s performance. Ordering from Bad Boy Parts Online is quick and simple, and you can take advantage of Free Shipping On Orders Over $100. Visit BadBoyMowerParts.com to find the parts you need for your 2020 Compact Outlaw Transaxle Assembly and get your mower back to work without delay.

Bad Boy Mower Parts Lookup

2020 Compact Outlaw - Transaxle Assembly
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
2 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
3 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 013-9003-00 013-9003-00 - 3/8 Nylock Jam Nut 1/2 Nut
$2.99
6 018-2071-00 018-2071-00 - 3/8 x 2 1/2 Hex Tap Bolt - Ful l Thread - ACS
$2.99
7 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
8 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
9 018-5355-00 018-5355-00 - 5/16-18 X 6 Hex Bolt Zinc
$2.99
10 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
11 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
12.1 022-3011-00 022-3011-00 - 12x7" Black Wheel-48" EZT Only
$109.99
12.2 022-4035-00 022-4035-00 - 23x9 - 12 Reaper Turf Tire Only
$201.99
12 022-4040-00 022-4040-00 - 23x9-12 Reaper Turf (See Models Used On for Details)
$329.99
13 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
14 025-0070-00 025-0070-00 - Transaxle Spacer
$6.41
15 028-4801-00 028-4801-00 - Crossover Bar (See Models Used On For Detail)
$28.10
16 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
17 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89
18 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
19 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
20 050-2072-00 050-2072-00 - Fan/Pulley Kit
$63.96
21 050-2076-00 050-2076-00 - Transaxle Wheel Hub (See Models Used On For Details)
$90.56
22 050-6000-00 050-6000-00 - ZT3400 Transaxle - Left (obsolete)
use part #050-6000-02
$819.99
23 050-6001-00 050-6001-00 - ZT3400 Transaxle - Right (obsolete)
use part #050-6001-02
$819.99
24 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
25 064-3050-00 064-3050-00 - Brake Cable - 18.50"
$51.47
26 064-3051-00 064-3051-00 - Brake Cable-24.50" (See Models Used On For Details)
$57.72
27 092-8000-00 092-8000-00 - Transaxle Brake Lever
$21.28
