2020 Diesel - 1500cc - Back Pump Cover

2020 Diesel - 1500cc - Back Pump Cover

The 2020 Diesel - 1500cc Back Pump Cover is a vital component for protecting your mower's hydraulic pump system. At BadBoyMowerParts.com, we offer a wide range of Bad Boy Mower Parts, including the back pump cover and related components. Whether you need a replacement cover or additional hydraulic parts, our website makes it easy to find exactly what you need. Our Bad Boy Mower Part diagrams provide visual guides to ensure accurate part selection. With Bad Boy Lawn Mower Parts tailored for your specific model, maintaining your 2020 Diesel - 1500cc is a breeze. Shop Bad Boy Parts Online and enjoy a seamless shopping experience. Plus, get Free Shipping On Orders Over $100 and have your parts delivered directly to your doorstep. Ensure your 2020 Diesel - 1500cc Back Pump Cover is protected and functional with high-quality parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

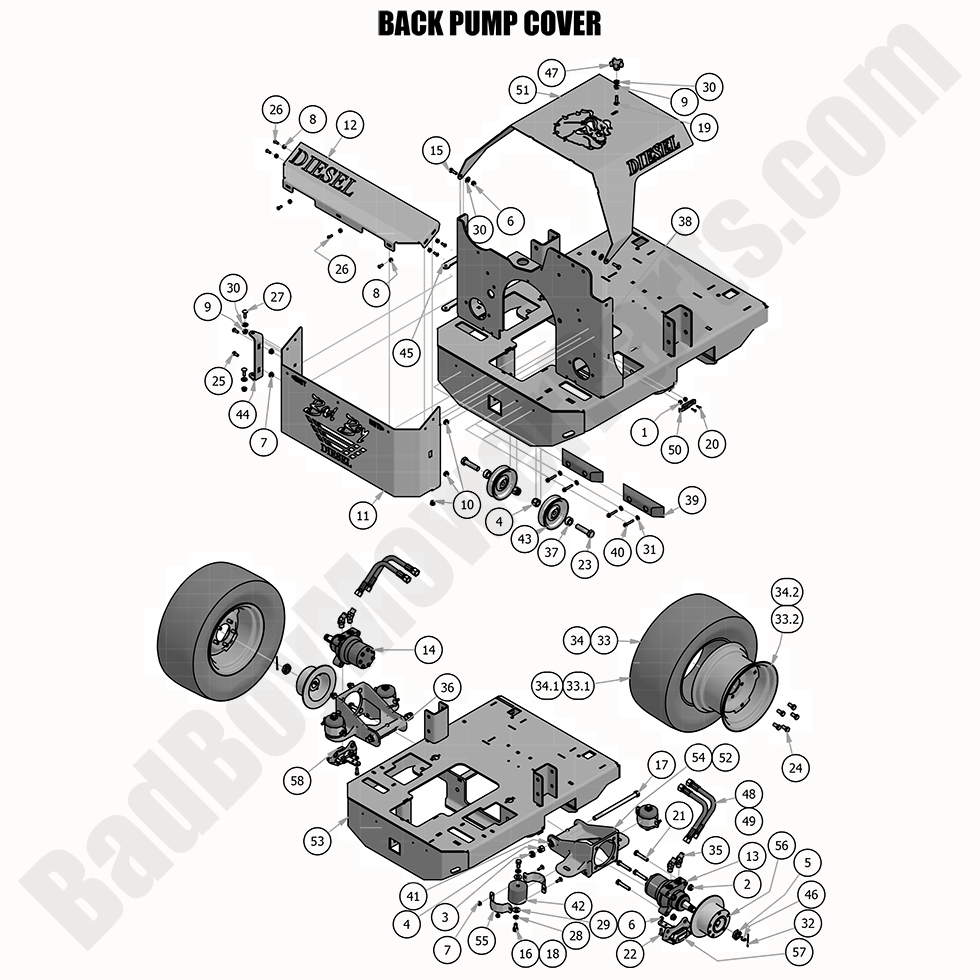

2020 Diesel - 1500cc - Back Pump Cover
  Position Number SKU Product Title Price
1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
2 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
3 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
4 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
5 013-7050-00 013-7050-00 - 1" Castle Nut for Wheel Motor (obsolete)
use part #013-7055-00
$18.18
6 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
7 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
8 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
9 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
10 014-3010-00 014-3010-00 - 5/8 Round Insert
$2.99

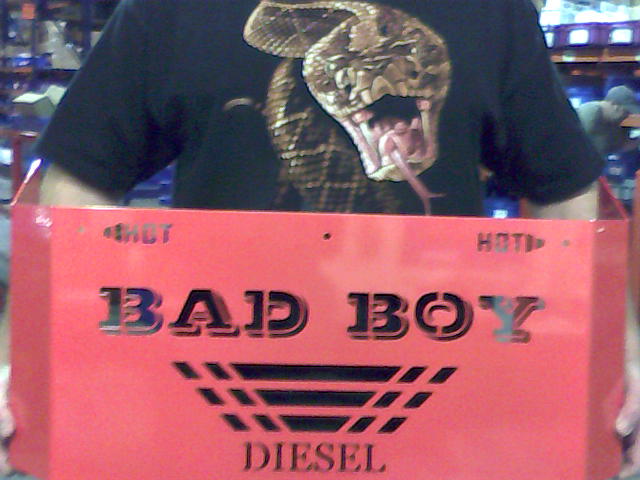

11 014-5920-00 014-5920-00 - Diesel Back Pump Cover 2008
$42.79

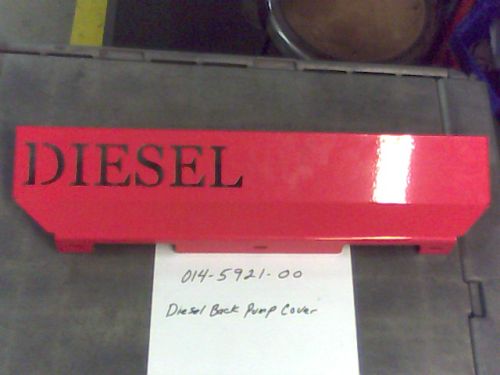

12 014-5921-00 014-5921-00 - Diesel Back Pump Cover - Top
$26.75
13 015-4600-00 015-4600-00 - 18cc Parker Wheel Motor-Right (See Models Used On for Detail)
$599.99
14 015-4601-00 015-4601-00 - 18cc Parker Wheel Motor
$599.99
15 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
16 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
17 018-2051-00 018-2051-00 - 5/8 x 10 Bolt Grade 8
$15.61
18 018-2080-00 018-2080-00 - 1/2-13 X 1-1/4 Hex Bolt
$2.99
19 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
20 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
21 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
22 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
23 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
24 018-7033-00 018-7033-00 - 1/2-20 X 1-1/2 Lug Bolts Zinc
$2.99
25 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
26 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99
27 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
28 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
29 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
30 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
31 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
32 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
33.1 022-7032-00 022-7032-00 - 26x12.00-12 Tire (One Tire Only)
$309.99
33.2 022-7034-00 022-7034-00 - 12 x 10.5 Wheel - AOS/Diesel Rear
$219.99
33 022-7031-00 022-7031-00 - 26x12.00-12 Orange Wheel and Tire Assembly
$428.99
34.1 022-4085-00 022-4085-00 - 2019-2025 26x12-12 Reaper Turf
$249.99

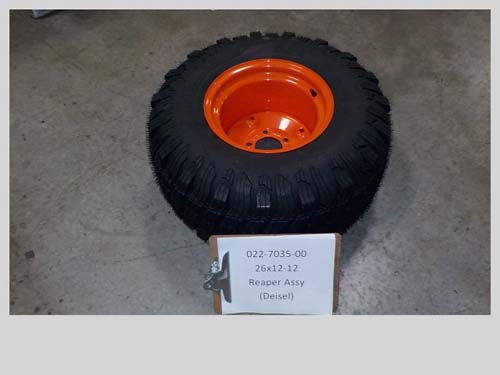

34 022-7035-00 022-7035-00 - 26x12 -12 Reaper Tire & Wheel Assembly for Diesels
$393.99
35 024-2050-00 024-2050-00 - 45 Degree Wheel Motor Fitting
$17.02
36 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
37 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37

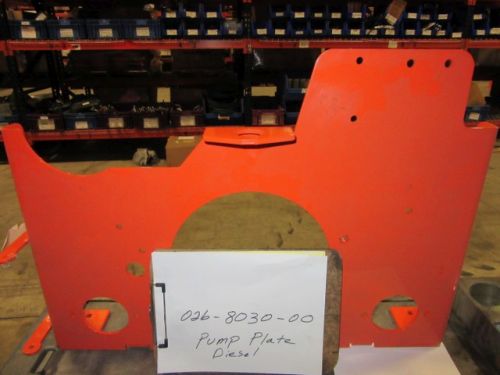

38 026-8030-00 026-8030-00 - Pump Plate Diesel (See Models Used On For Details)
$109.99
39 029-7038-00 029-7038-00 - 8 Bumper
$28.32
40 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
41 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
42 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
43 033-7025-00 033-7025-00 - 5 V Idler Pulley - BCVI-81 Frame Mounted AOS/Diesel
$28.39
44 039-0070-00 039-0070-00 - Back Cover Hinge Bracket
$14.19
45 039-0072-00 039-0072-00 - Obsolete Diesel Hinge Tab No Longer Available
Obsolete.
46 042-7041-00 042-7041-00 - Woodruff Key-Wheel Motor
$14.19
47 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
48 051-2080-00 051-2080-00 - 26" Hydraulic Hose Assembly w/Adaptors
$145.95
49 051-6085-00 051-6085-00 - 26" Hydro Hose Only
$40.53
50 052-3000-00 052-3000-00 - Steel Pump Cover Latch-Diesel 97-60-120-15
$29.95

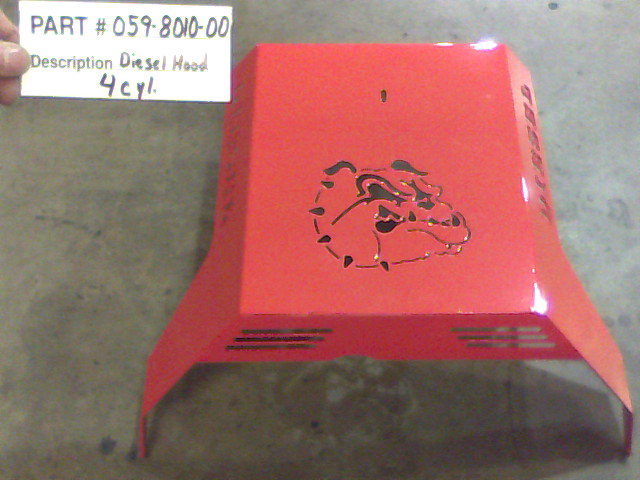

51 059-8010-00 059-8010-00 - 2008-2020 Diesel Hood 4cyl
$159.99
52 070-8001-00 070-8001-00 - 72 Suspension Kit Wheel Motor
$265.37
53 070-5570-00 070-5570-00 - 2012-2014 Outlaw Diesel Frame
$1399.99
54 070-8000-00 070-8000-00 - Suspension Kit Wheel Motor (See Models Used On For Details)
$291.91
55 072-1000-00 072-1000-00 - Isolator Band Clamp
$7.28
56 092-5201-00 092-5201-00 - 2007-2008 AOS/Diesel, 2014-2020 Diesel/Outlaw XP, 2019-2025 Renegade/Rogue Brake Disc 8
$119.36
57 092-7000-00 092-7000-00 - 2014-2018 Right Brake Caliper Outlaw XP/Diesel, 2019-2024 Renegade/Rogue Left Brake Caliper w/bracket
$99.32
58 092-7001-00 092-7001-00 - 2014-2018 Left Brake Caliper Outlaw XP/Diesel, 2019-2025 Renegade/Rogue
$99.32
