2020 Diesel - 1500cc - Diesel Engine

2020 Diesel - 1500cc - Diesel Engine

The 2020 Diesel - 1500cc Diesel Engine powers your mower with efficiency and durability. At BadBoyMowerParts.com, we specialize in providing high-quality Bad Boy Mower Parts for maintaining your engine. Whether you need replacement engine parts or upgrades, our extensive catalog has what you need for your 2020 Diesel - 1500cc Diesel Engine. Our Bad Boy Mower Part diagrams make it easy to identify the right components, whether it’s the fuel system, ignition parts, or cooling components. Shop for Bad Boy Lawn Mower Parts and have everything delivered directly to your door. With Bad Boy Parts Online, maintaining your 2020 Diesel - 1500cc Diesel Engine is hassle-free. Plus, enjoy the added benefit of Free Shipping On Orders Over $100 when you purchase from us. Ensure your engine continues to run smoothly for years with high-performance parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2020 Diesel - 1500cc - Diesel Engine
  Position Number SKU Product Title Price
1A 041-0010-00 041-0010-00 - Caterpillar/Perkins Fan Belt
$85.17
1 201-8001-00 201-8001-00 - Hood Holder Diesel
$42.79
2A 055-8018-75 055-8018-75 - Diesel Thottle Cable ONLY
$32.09
2 032-4050-00 032-4050-00 - Rubber Compression Mount Side Motor Mount-Diesel
$76.53
3 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
4 019-5010-00 019-5010-00 -.565x1.25x.095 Washer Brass
$2.99
5 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
6 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
7 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
8 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
9 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
10 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
11 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
12 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
13 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
14 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
15 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
16 064-4001-00 064-4001-00 - Black Battery Cable (See Models Used On For Details)
$22.31
17 063-2010-00 063-2010-00 - Caterpillar Oil Filter
$34.23
18 072-8090-00 072-8090-00 - Diesel Clamp - 1 3/4 Vinyl
$3.63
19 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
20 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
21 029-4010-00 029-4010-00 - Button Bumper
$2.99
22 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
23 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
24 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
25 039-1010-00 039-1010-00 - Diesel Throttle Bracket 4 Tier
$5.49
26 017-3000-00 017-3000-00 - Stub shaft- Diesel
$229.90
27 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
29 018-2001-00 018-2001-00 - M8 X 1.25 X 25MM Class 10.9 He x Bolts Zinc
$2.99
30 018-5320-00 018-5320-00 - M8 x 1.25 x 30MM Hex Head Bolt
$2.99
31 201-8008-00 201-8008-00 - Diesel Motor Side Support Right (See Models Used On For Details)
$31.22
32 018-2000-00 018-2000-00 - M6x1.0x20MM 8.8 Hex Bolts Zinc
$2.99
33 086-7004-00 086-7004-00 - Oil Pressure Sender- For 2012 and Newer Units
$119.99
34 039-1015-00 039-1015-00 - Radiator Hose Clamp Bracket
$2.99
35 018-6022-00 018-6022-00 - 12mm Bolt - Diesel
$2.99
36 203-8000-00 203-8000-00 - Muffler Brace Diesel
$19.25
37 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
38 051-3001-00 051-3001-00 - Diesel Radiator Hose - Bottom
$28.09
39 051-3000-00 051-3000-00 - 2010-2020 Top Radiator Hose - Diesel
$22.03
40 072-2003-00 072-2003-00 - 1 1/8" Hose Clamp
$5.82
41 201-8009-00 201-8009-00 - Diesel Side Motor Mount Left (See Models Used On For Details)
$31.22
43 015-0010-00 015-0010-00 - 28/35hp Caterpillar Engine Muffler
$225.56

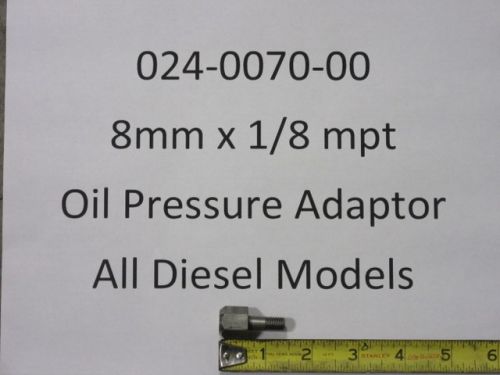

46 024-0070-00 024-0070-00 - 8mm x 1/8 mpt Adaptor - All Di esel Models
$50.28
