2020 Diesel - 1500cc - Fuel Tanks

2020 Diesel - 1500cc - Fuel Tanks

The 2020 Diesel - 1500cc Fuel Tanks are essential for keeping your mower running efficiently. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts to keep your mower operating at its best. Whether you need a replacement fuel tank, fuel cap, or related components, we have everything to ensure your mower stays powered up. Our Bad Boy Mower Part diagrams make it easy to identify the parts you need. Browse Bad Boy Lawn Mower Parts and order Bad Boy Parts Online for a seamless shopping experience. We also offer Free Shipping On Orders Over $100, making it more affordable to get your parts delivered directly to your home. Keep your 2020 Diesel - 1500cc Fuel Tanks in top condition with high-quality parts from BadBoyMowerParts.com, and enjoy reliable performance each time you mow.

Bad Boy Mower Parts Lookup

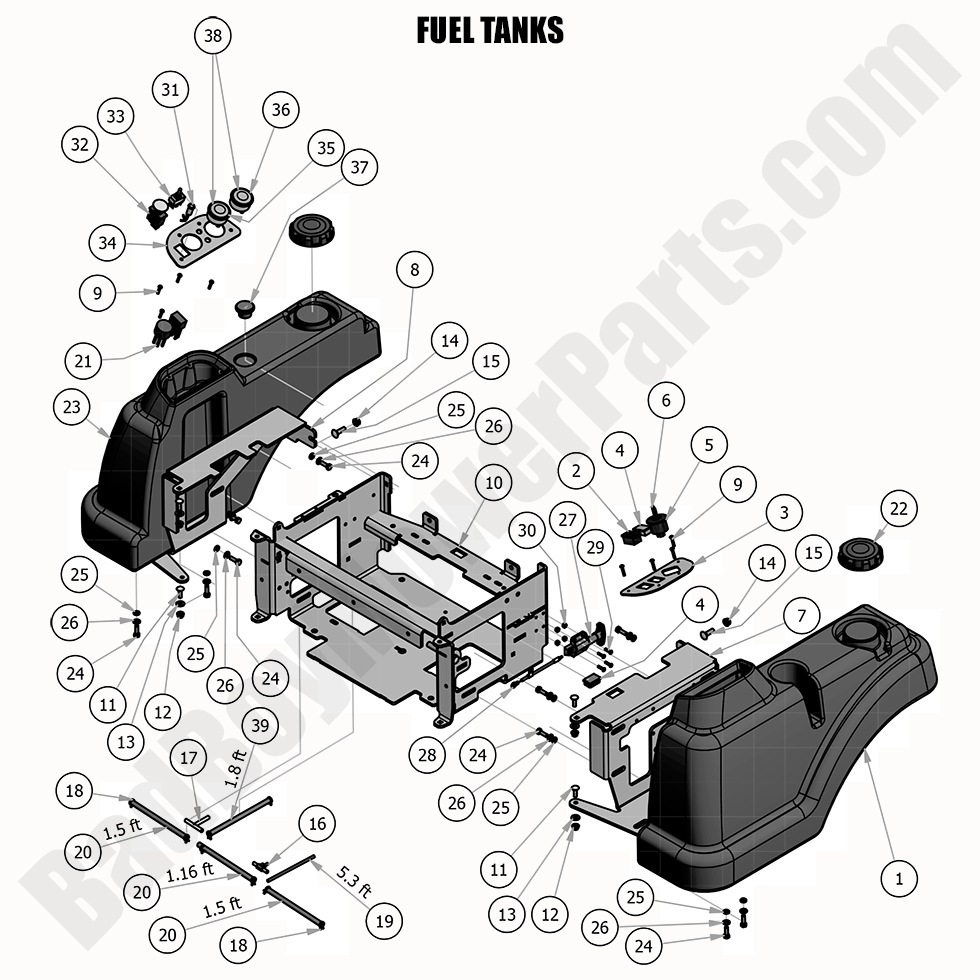

2020 Diesel - 1500cc - Fuel Tanks
  Position Number SKU Product Title Price
1 067-3000-00 067-3000-00 - Diesel/AOS Fuel Tank - Left
$509.99
2 083-4014-00 083-4014-00 - Diesel Hourmeter
$62.40
3 079-3402-00 079-3402-00 - Left Diesel Instrument Panel (See Models Used On For Details)
$22.71
4 018-1040-00 018-1040-00 - Light Plug
$2.99
5 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
6 042-9000-00 042-9000-00 - Ignition Key
$4.06
7 031-2010-00 031-2010-00 - 72 Tank Supports- Left
$59.91
8 031-2011-00 031-2011-00 - 72 Tank Support- Right (See Models Used On For Details)
$59.91
9 018-2015-00 018-2015-00 - 10-32 x 1 Button Head Bolt
$2.99
10 080-7000-00 080-7000-00 - 2007 Diesel Seat Frame
$399.99
11 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
12 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
13 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
14 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
15 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
16 073-2000-00 073-2000-00 - Brass Fuel Line T - Diesels
$10.21
17 073-8068-00 073-8068-00 - Fuel Line T
$9.70
18 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
19 051-8068-00 051-8068-00 - 3/16 Fuel Line
$3.59
20 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
21 086-0035-00 086-0035-00 - Harness-28/35 Diesel w/Plastic Tank
$463.10
22 066-8090-00 066-8090-00 - Diesel Fuel Cap-3.5 inch Neck
$39.86
23 067-3001-00 067-3001-00 - Diesel/AOS Fuel Tank - Right
$214.99
24 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
25 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
26 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
27 039-2016-00 039-2016-00 - T Handle Seat Release (See Models Used On For Details)
$28.32
28 064-0002-00 064-0002-00 - T-Handle Seat Release Cable
$23.53
29 018-8058-00 018-8058-00 - 10-24 X 1 BS C/S 18-8 SS
$2.99
30 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
31 089-1000-00 089-1000-00 - Oil Light
$12.63
32 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
33 078-8077-00 078-8077-00 - Joystick - Deck Lift
$42.79
34 079-3405-00 079-3405-00 - Right Diesel Control Panel (See Models Used On For Details)
$17.11
35 086-7001-00 086-7001-00 - 2" Water Temperature Gauge (See Models Used On For Details)
$100.71
36 086-7000-00 086-7000-00 - 2" Oil Pressure Gauge (See Models Used On For Details)
$100.71
37 067-4025-00 067-4025-00 - Fuel Gauge and Grommet (See Models Used On For Details)
$54.56
38 086-7002-00 086-7002-00 - Pigtail-2" Faria Gauge-2012
$28.32
39 051-8075-00 051-8075-00 - 5/16 Fuel Line Hose Priced per Foot
$7.69
