2020 Diesel - 1500cc - Pump Plate Assembly

2020 Diesel - 1500cc - Pump Plate Assembly

The 2020 Diesel - 1500cc Pump Plate Assembly is a critical component for ensuring your mower's hydraulic system operates smoothly. At BadBoyMowerParts.com, we offer a full range of Bad Boy Mower Parts, including this essential pump plate assembly. Whether you’re replacing the pump plate itself or other related hydraulic parts, our site provides the quality components you need to keep your mower in peak condition. Use our Bad Boy Mower Part diagrams to easily locate and identify the correct parts for your 2020 Diesel - 1500cc. With our wide selection of Bad Boy Lawn Mower Parts, shopping for replacements has never been easier. Order Bad Boy Parts Online and take advantage of our Free Shipping On Orders Over $100. Ensure the longevity and performance of your 2020 Diesel - 1500cc Pump Plate Assembly with durable, reliable parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

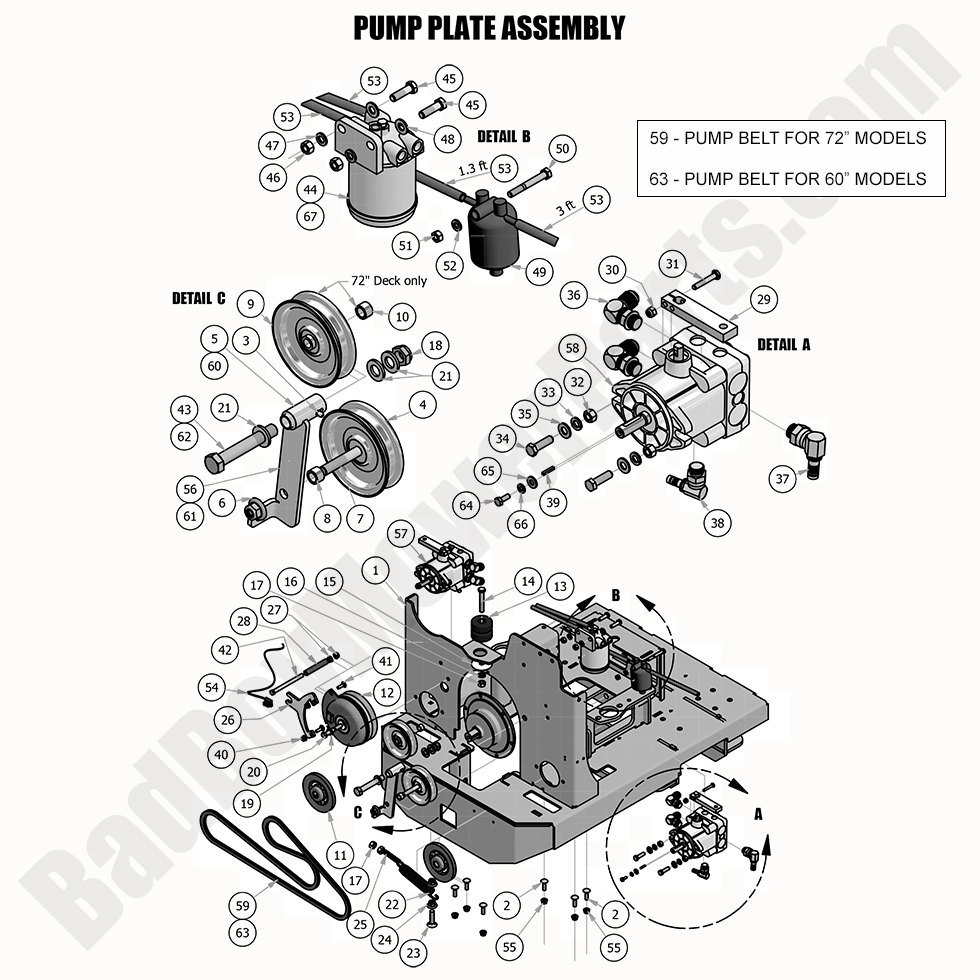

2020 Diesel - 1500cc - Pump Plate Assembly
  Position Number SKU Product Title Price
1 026-8030-00 026-8030-00 - Pump Plate Diesel (See Models Used On For Details)
$109.99
2 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
3 024-3050-00 024-3050-00 - 1/4" Drive-in Grease Fitting (See Models Used On For Details)
$2.99
4 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
5 039-5950-00 039-5950-00 - Pump Idler Bracket 60 Diesel
$32.65
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
8 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
9 033-4050-00 033-4050-00 - 5" V Idler 35hp Diesel
$37.79
10 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
11 033-5011-00 033-5011-00 - Cast Pump Pulley - 17mm AOS/Diesel Models
$35.48
12 070-5040-00 070-5040-00 - Diesel/Vanguard PTO Clutch
$399.00
13 032-4000-00 032-4000-00 - Rubber for Rear Diesel Motor Mount
$76.53
15 032-4051-00 032-4051-00 - Snubbing Washer for Rubber Compression Mount
$17.02
16 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
17 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
18 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
19 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
20 018-5401-00 018-5401-00 - 7/16 x 2 3/4 Fine Thread Bolt
$2.99
21 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
22 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
23 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
25 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
26 057-5910-10 057-5910-10 - 2010-2020 Diesel PTO Engager Holder
$22.71
27 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
28 051-8076-00 051-8076-00 - 3/8 Fuel Line-Priced per Foot
$6.59
29 031-5923-00 031-5923-00 - Pump Arm
$30.07
30 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
31 018-5005-00 018-5005-00 - 1/4-20 X 1-1/2 Hex Bolt
$2.99
32 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
33 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
34 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
35 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
36 024-2080-00 024-2080-00 - 90 Degree Adaptor-Diesel Models (See Models Used On For Details)
$9.67
37 024-5002-00 024-5002-00 - 90 Degree Fitting, 1/2 x 3/4, 986741
$17.63
38 024-5206-00 024-5206-00 - 90 Degree Fitting, 3/8 x 9/16, 4601-6-6
$12.42
39 042-5012-00 042-5012-00 - 5MM X 1.25 Square Key (obsolete)
use part #042-5013-00
$2.99
40 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
41 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
42 018-7055-00 018-7055-00 - 3/8-16 x 5 Hex Bolt -
$2.99
43 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
44 063-2011-00 063-2011-00 - CAT Fuel Filter - Big
$29.95
45 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
49 015-0007-00 015-0007-00 - Caterpillar Fuel Bowl Kit
$150.99
50 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
51 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
52 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
53 051-8075-00 051-8075-00 - 5/16 Fuel Line Hose Priced per Foot
$7.69
54 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
55 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
56 039-5946-98 039-5946-98 - Pump Idler Bracket Assy Diesel
$56.77
57 050-5308-00 050-5308-00 - Left Pump 16cc - AOS/Diesel (See Models Used On For Details)
$899.99
58 050-5407-00 050-5407-00 - Right Pump 16cc - AOS/Diesel (See Models Used On For Details)
$899.99
59 041-8411-00 041-8411-00 - Pump Belt (See Models Used On For Detail)
$64.19
60 039-5945-00 039-5945-00 - Diesel Pump Idler 72 (35HP)
$32.65
61 039-5945-98 039-5945-98 - Pump Idler 72" (35HP) Assy (See Models Used On For Details)
$56.77
62 018-6016-00 018-6016-00 - 5/8 x 5 1/2 Bolt
$2.99
63 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
64 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
65 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
66 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
67 063-2011-01 063-2011-01 - Perkins Fuel Filter
$26.96
