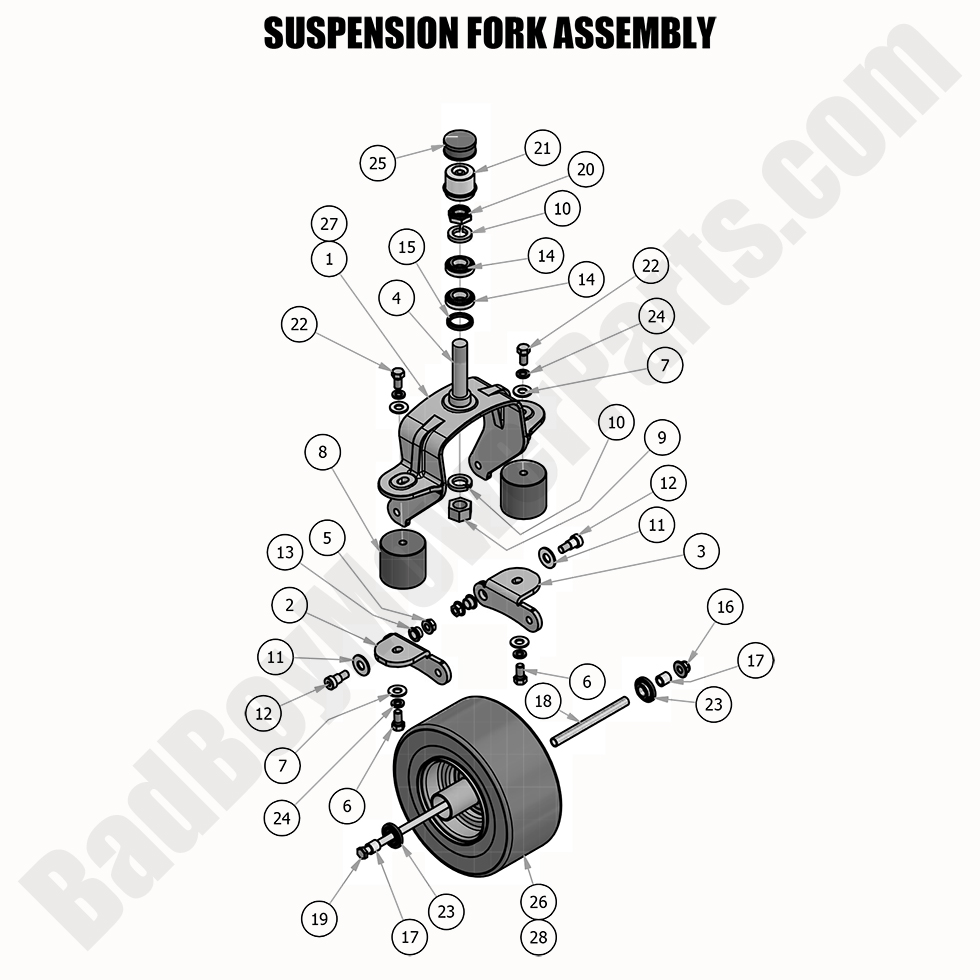

2020 Diesel - 1500cc - Suspension Fork Assembly

2020 Diesel - 1500cc - Suspension Fork Assembly

The 2020 Diesel - 1500cc Suspension Fork Assembly is a vital part of your mower’s overall comfort and handling. At BadBoyMowerParts.com, we provide an extensive collection of Bad Boy Mower Parts, including suspension forks and related components. Whether you're replacing worn suspension forks or upgrading your system, our website has everything you need for your 2020 Diesel - 1500cc mower. With detailed Bad Boy Mower Part diagrams available, finding the right part for your mower’s suspension system is quick and easy. Shop for Bad Boy Lawn Mower Parts with confidence, knowing that each part is built to last. When you order Bad Boy Parts Online, you can enjoy fast delivery and Free Shipping On Orders Over $100. Enhance your mower’s handling and comfort by ensuring your 2020 Diesel - 1500cc Suspension Fork Assembly is in top shape with parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2020 Diesel - 1500cc - Suspension Fork Assembly
  Position Number SKU Product Title Price
1 023-0020-00 023-0020-00 - 2012-2016 Outlaw XP, 2012-2020 Diesel Suspension Fork Top/Side Combo
$263.99
2 023-0012-00 023-0012-00 - Suspension Fork - Bottom Left
$31.58
3 023-0013-00 023-0013-00 - Suspension Fork - Bottom Right
$31.58
4 037-0010-00 037-0010-00 - Front Suspension Fork Spindle Shaft - Black
$42.58
5 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
6 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
7 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
8 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
9 013-6016-00 013-6016-00 - 1 Fine Thread Nut
$4.39
10 019-3000-00 019-3000-00 - 1" Lock Washer
$3.29
11 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
12 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
13 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
14 010-7001-00 010-7001-00 - Tapered Roller Bearing - Caster- Race not included (See Models Used On For Details)
$6.26
15 012-7003-00 012-7003-00 - Bearing Seal - Front Caster (See Models Used On For Details)
$10.21
16 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
17 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
18 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
19 018-3002-00 018-3002-00 - 1/2 x 10 Bolt
$8.02
20 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
21 014-7005-00 014-7005-00 - Dust Cover - Yellow Zinc
$9.34
22 018-2080-00 018-2080-00 - 1/2-13 X 1-1/4 Hex Bolt
$2.99
23 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
24 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
25 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
26 022-1050-00 022-1050-00 - 13 x 6.50-6 No-Flat Tire and Wheel Assembly
$177.99
27 023-7915-98 023-7915-98 - Suspension Fork Assembly
$350.99
