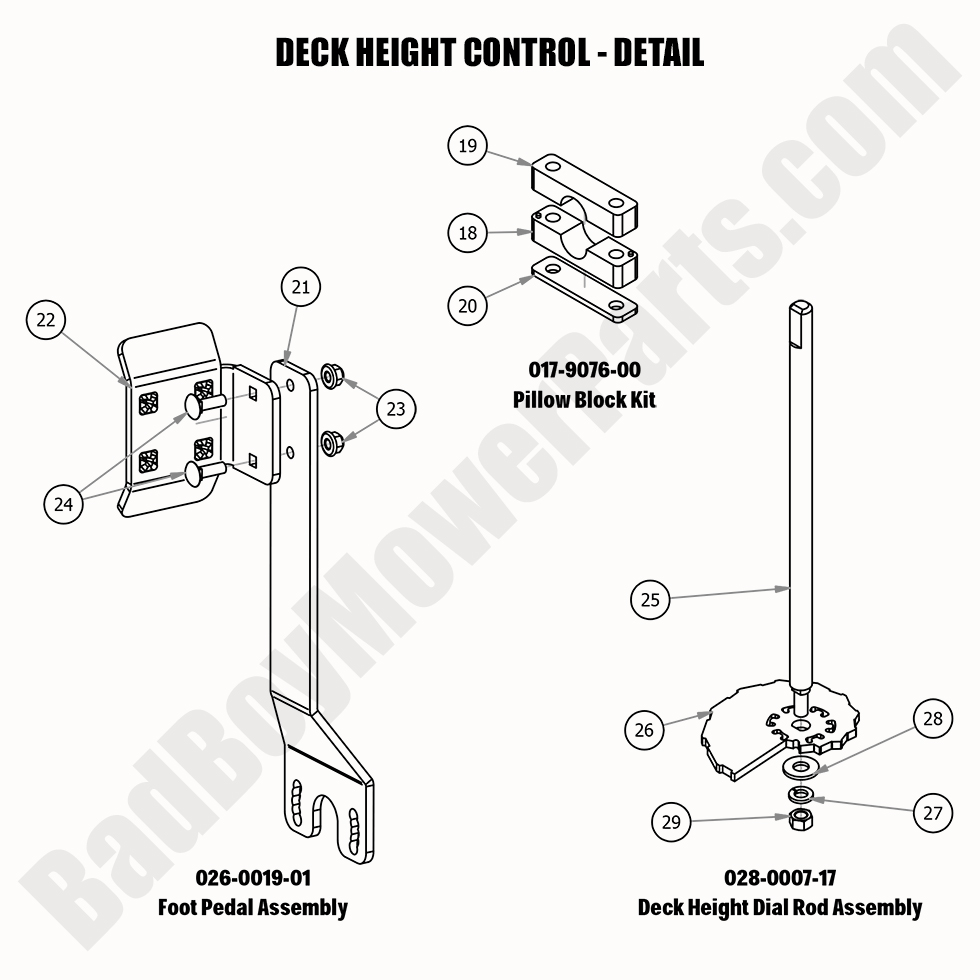

2020 MZ & MZ Magnum - Deck Height Control - Detail

2020 MZ & MZ Magnum - Deck Height Control - Detail

For a closer look at the 2020 MZ & MZ Magnum Deck Height Control - Detail, understanding its mechanism is vital for proper maintenance. This system allows you to adjust your mower’s cutting height with precision, ensuring your lawn receives the best possible cut. At BadBoyMowerParts.com, you can explore Bad Boy Mower Parts for this system, including the height control linkages and related components. Using Bad Boy Mower Part diagrams, you’ll have a clear guide to each part's location and function. Whether you’re replacing a worn part or upgrading the system, our extensive collection of Bad Boy Lawn Mower Parts will meet your needs. Bad Boy Parts Online ensures a hassle-free shopping experience, and with Free Shipping On Orders Over $100, you can maintain your mower with confidence. Keep your mower in perfect shape with the right deck height control parts.

Bad Boy Mower Parts Lookup

2020 MZ & MZ Magnum - Deck Height Control - Detail
  Position Number SKU Product Title Price
18.0 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
18 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
19 017-9078-00 017-9078-00 - Pillow Block-Female (obsolete)
use part #017-9077-00
$21.28
20 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
21.0 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
21 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
22 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
23 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
24 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
25.0 028-0007-17 028-0007-17 - 2018-2022 MZ Magnum Deck Height Rod Assy.
$28.88
25 028-0007-00 028-0007-00 - 2017-2024 MZ Deck Height Dial Rod
$31.17
26 026-1100-00 026-1100-00 - 2017-Newer CAM Plate Use With Deck Adjuster (See Models Used On For Detail)
$15.55
27 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
28 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
29 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
