2020 MZ & MZ Magnum - Drive System Detail

2020 MZ & MZ Magnum - Drive System Detail

The 2020 MZ & MZ Magnum Drive System Detail focuses on ensuring your mower’s drive system is operating smoothly and efficiently. Whether you're maintaining the drive belts, pulleys, or the transmission itself, BadBoyMowerParts.com offers the Bad Boy Mower Parts you need to keep your mower in top working condition. With Bad Boy Mower Part diagrams, finding the right part is simple and quick. Our comprehensive selection of Bad Boy Lawn Mower Parts is designed specifically for the 2020 MZ & MZ Magnum series, so you can be sure you're getting the right fit. Shopping Bad Boy Parts Online provides you with a streamlined, easy way to buy parts. Additionally, we offer Free Shipping On Orders Over $100, making it even easier to maintain your mower's performance. Keep your mower’s drive system running at its best with quality parts from us.

Bad Boy Mower Parts Lookup

2020 MZ & MZ Magnum - Drive System Detail
  Position Number SKU Product Title Price
2 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
5 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99

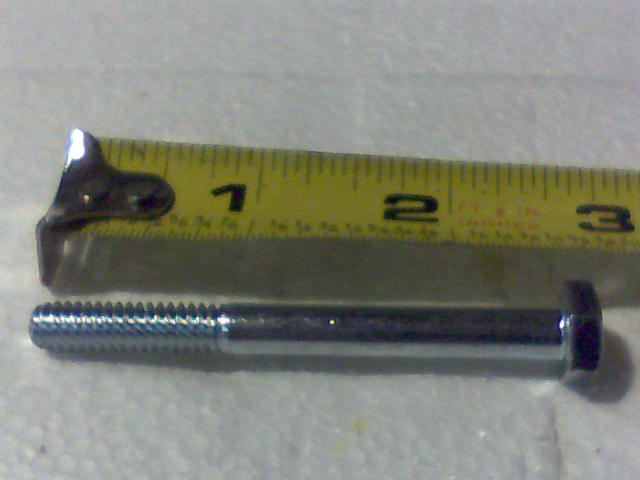

6 018-1076-00 018-1076-00 - 1/4-20 x 2-1/2 Gr2 Hex C/S Zinc
$2.99
10 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
13 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
14 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
15 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
16 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
24 034-3050-00 034-3050-00 - Spring-Brake Lock Bracket MZ
$2.99
25 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
26 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
27 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89
28 039-0035-01 039-0035-01 - 2017-2023 MZ/Magnum Brake Plate Assy.
$18.72
35 050-4032-98 050-4032-98 - MZ Brake Cog Kit (See Models Used On For Details)
$65.27
36 050-4070-00 050-4070-00 - 2017-2025 - Right Transaxle - MZ Models
$599.99
37 050-4071-00 050-4071-00 - 2017-2025 - Left Transaxle- MZ Models
$599.99
38 064-8057-17 064-8057-17 - 2017-2025 MZ Brake Cable- 18.37" CABLE ONLY
$25.54
41 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
43 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
44 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
49.0 022-2050-17 022-2050-17 - 18x8.50-8 Tire/Wheel Assy 42" MZ (See Models Used On For Details)
$175.99
49 022-2055-17 022-2055-17 - 8.50-8 MZ Wheel fits the 022-2050-17
$106.99
50 022-8027-00 022-8027-00 - 18x8.50-8 Rear Tire Only 42 MZ (One Tire Only)
$136.99

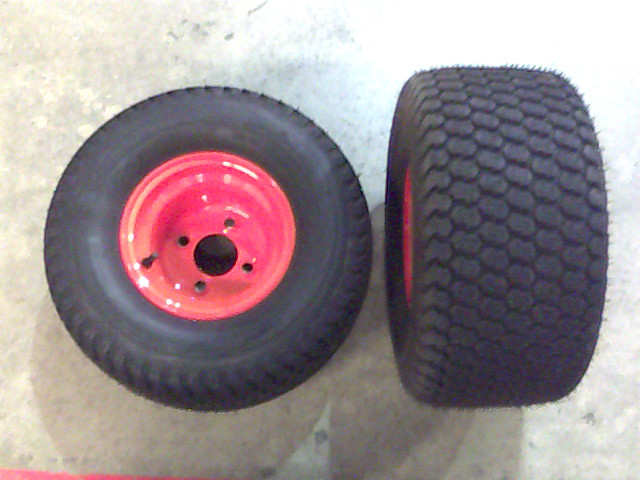

51.0 022-8050-00 022-8050-00 - 18x9.50-8 Tire and Wheel Assembly (One Tire & Rim Assy)
$229.99
51 022-8026-00 022-8026-00 - Rear Wheel 48in MZ (One Rim Only)
$106.19
52 022-8025-00 022-8025-00 - 18x9.50-8 Rear Tire Only (One Tire Only)
$197.99
53 039-0035-00 039-0035-00 - MZ Brake Lock Bracket (See Models Used On for more details)
$9.61
54 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
55 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
56 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
57.0 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
57 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
58 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
59 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
60 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
61 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
62 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
63 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
64 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
