2020 MZ & MZ Magnum - Front Fork Assembly

2020 MZ & MZ Magnum - Front Fork Assembly

The 2020 MZ & MZ Magnum Front Fork Assembly plays a critical role in the stability and maneuverability of your mower. If you're in need of replacement parts, BadBoyMowerParts.com provides an extensive selection of Bad Boy Mower Parts for the front fork assembly. From bearings to the fork frame itself, we have all the components to ensure smooth steering and control. Bad Boy Mower Part diagrams make it easy to identify the specific parts you need for your 2020 MZ & MZ Magnum. With our range of Bad Boy Lawn Mower Parts, you can quickly restore or upgrade your front fork system. By shopping Bad Boy Parts Online, you’ll have access to affordable, high-quality parts, and with Free Shipping On Orders Over $100, maintaining your mower is more cost-effective than ever.

Bad Boy Mower Parts Lookup

2020 MZ & MZ Magnum - Front Fork Assembly
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
3 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
4 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
5 018-0005-00 018-0005-00 - 1-14 X 5 BOLT GR 8 Zinc
$7.69
6 018-0035-00 018-0035-00 - 1/2-13 x 7 1/2 Hex Bolt
$4.83
7 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
8 022-8049-00 022-8049-00 - 11x6.00-5 Front Assembly (One Tire and Rim Assy)
$99.39

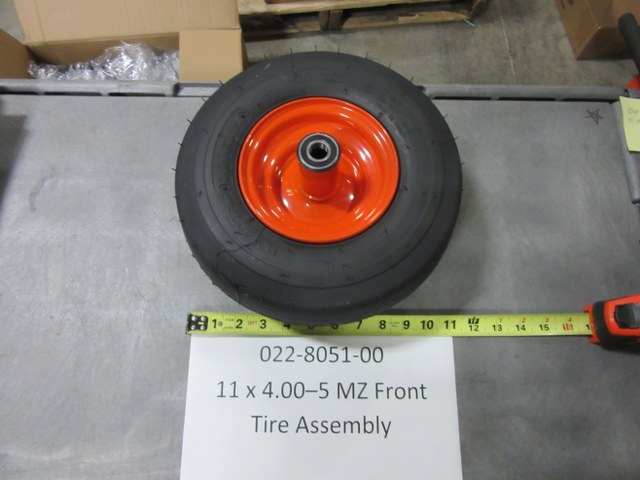

9 022-8051-00 022-8051-00 - 11 x 4.00 - 5 Front Tire and Wheel Assembly, 2010 MZ and 2019-2021 42" MZ
$76.60
10 023-0002-00 023-0002-00 - 2017-2025 Walkbehind & MZ Front Fork
$31.23
11 023-0005-00 023-0005-00 - MZ 8mm Front Fork 42" only
$42.58
12 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
13 025-0008-00 025-0008-00 - Front Wheel Spanner - MZ
$15.60
14 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
15 070-5420-00 070-5420-00 - 2017-2021 MZ/ZT Frame For 54" & 60" Deck Units
$1199.99
16 070-5810-00 070-5810-00 - 2017-2021 ZT/MZ/MZ Magnum Frame For 42" & 48" Deck Units
$1199.99
