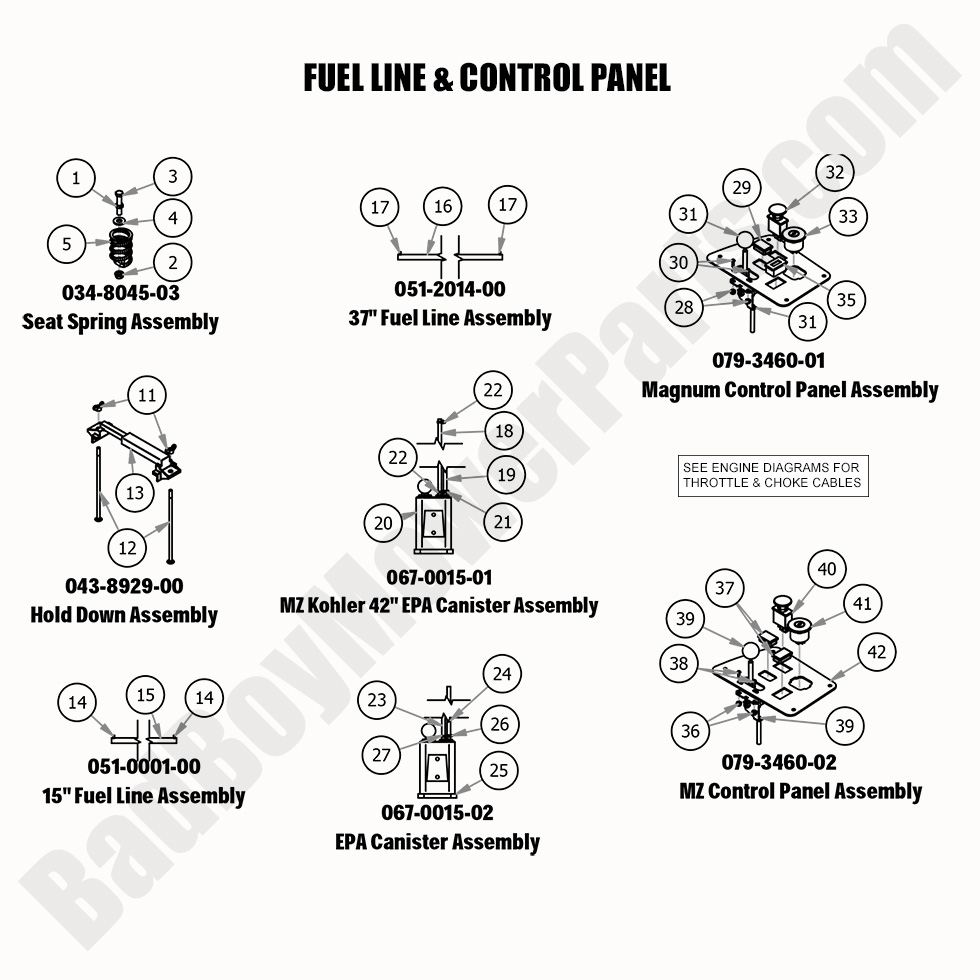

2020 MZ & MZ Magnum - Fuel Line & Control Panel

2020 MZ & MZ Magnum - Fuel Line & Control Panel

For optimal performance of your 2020 MZ & MZ Magnum, the fuel line and control panel need to be in top condition. At BadBoyMowerParts.com, you’ll find a full range of Bad Boy Mower Parts to replace or repair these critical components. Our Bad Boy Mower Part diagrams provide a clear, detailed view of the fuel system, so you can easily locate the right parts. Whether you're dealing with a fuel line leak or need to replace the control panel, we offer a variety of Bad Boy Lawn Mower Parts designed for the 2020 MZ & MZ Magnum series. With Bad Boy Parts Online, you can shop for fuel system components from the comfort of your home, and take advantage of Free Shipping On Orders Over $100 to save on your purchase.

Bad Boy Mower Parts Lookup

2020 MZ & MZ Magnum - Fuel Line & Control Panel
  Position Number SKU Product Title Price
1A 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
1B 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
1C 079-3460-01 079-3460-01 - 2017 - 2021 MZ Magnum Control Panel Assy.
$105.93
1D 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
1E 067-0015-01 067-0015-01 - MZ Briggs EPA Cannister Assy (obsolete)
use part #067-0015-00
$46.78
1F 051-0001-00 051-0001-00 - Fuel Line-15" (See Models Used On For Details)
$40.53
1G 067-0015-02 067-0015-02 - MZ Kohler EPA Cannister Assy
$56.72
1H 079-3460-02 079-3460-02 - 2017-2022 MZ Control Panel Assy.
$105.93
1 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
4 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
5 034-8045-00 034-8045-00 - Seat Spring
$20.49
11 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
12 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
14 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
15 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
16 051-2014-01 051-2014-01 - 37" 1/4 Fuel Line (No Clamp)
$19.25
18 051-2023-01 051-2023-01 - 3/16 Vinyl 53" EPA Line
$9.67
19 051-2027-01 051-2027-01 - 3/16 Clear 44" EPA Line
$7.25
20 067-0015-00 067-0015-00 - Carbon Canister RY320CC
$46.78
21 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
22 072-8075-00 072-8075-00 - 8.6 Mm Hose Clamp
$3.62
23 051-2023-02 051-2023-02 - 44" x 3/16" Black Hose
$12.48
24 051-2027-02 051-2027-02 - 52" x 3/16" clear hose
$7.25
28 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
29 018-1040-00 018-1040-00 - Light Plug
$2.99
30 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
32 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
33 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
35 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
42 079-3460-00 079-3460-00 - Control Panel (See Models Used On For Details)
$23.53
