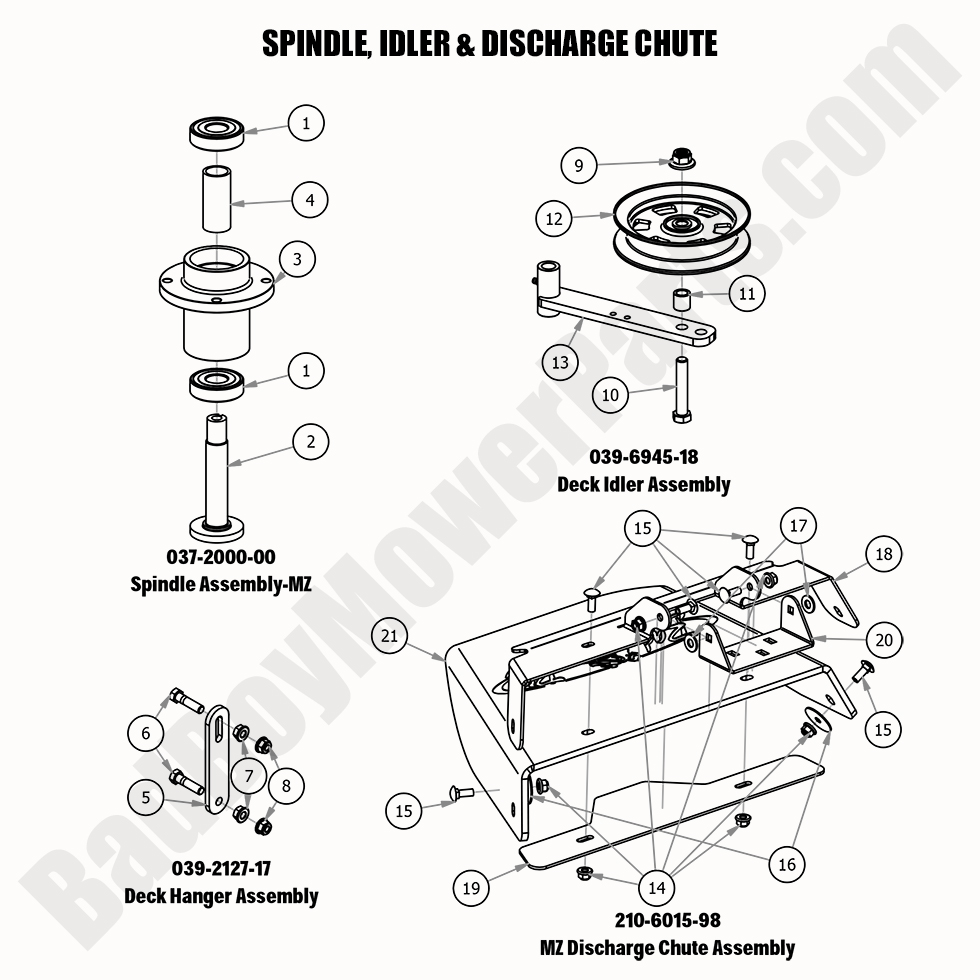

2020 MZ & MZ Magnum - Spindle, Idler & Discharge Chute

2020 MZ & MZ Magnum - Spindle, Idler & Discharge Chute

The 2020 MZ & MZ Magnum Spindle, Idler & Discharge Chute assembly plays an essential role in ensuring your mower runs smoothly and efficiently. At BadBoyMowerParts.com, we offer a variety of Bad Boy Mower Parts to maintain or replace components like spindles, idlers, and the discharge chute. Whether you're dealing with a worn-out spindle or need to replace the discharge chute, our Bad Boy Mower Part diagrams make it easy to find the correct parts for your 2020 MZ & MZ Magnum mower. Our collection of Bad Boy Lawn Mower Parts ensures you get reliable, high-quality replacements. Shopping Bad Boy Parts Online means you can easily order everything you need for a complete repair or upgrade. Plus, take advantage of Free Shipping On Orders Over $100 to get your parts delivered to your door at no extra cost.

Bad Boy Mower Parts Lookup

2020 MZ & MZ Magnum - Spindle, Idler & Discharge Chute
  Position Number SKU Product Title Price
1.0 037-2000-00 037-2000-00 - Spindle Assembly fits All ZT Avengers and MZ/MZ Magnum Also Fits 2016-2022 36" Stand-On
$204.33
1 037-6024-00 037-6024-00 - All MZ Models & 2016-2022 Stand-On (36" Deck) Spindle Bearing
$34.35
2 037-6025-00 037-6025-00 - Spindle Shaft - All MZ/MZ Magnum & 2016-2022 Stand-On (36" Deck)
$60.98
3 037-6027-00 037-6027-00 - Spindle Housing For 037-2000-00 Spindle Assembly (See Models Used On For Details)
$99.32
4 037-6028-00 037-6028-00 - Spacer for 037-2000-00 Spindle
$14.19
5.0 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
5 039-2127-00 039-2127-00 - Deck Hanger (See Models Used On For Details) (obsolete)
use part #039-2127-17
$15.60
6 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
7 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
8 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
9.0 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
9 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
10 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
11 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
12 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
13 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
14.0 210-6015-98 210-6015-98 - Discharge Chute Assembly (See Models Used On For Detail)
$145.95
14 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
15 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
16 019-0002-00 019-0002-00 - 5/16 Fender Washer
$2.99
17 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
18 039-4891-00 039-4891-00 - Discharge Chute Bracket 48 MZ (Upper)
$35.43
19 039-4892-00 039-4892-00 - 2017-2022 MZ Discharge Chute Bracket (Lower) (obsolete)
use part #039-4890-00
$35.43
20 206-6020-00 206-6020-00 - Chute Hanger
$28.39
21 210-6014-00 210-6014-00 - Discharge Chute Rubber Only (See Models Used On For Details)
$53.49
