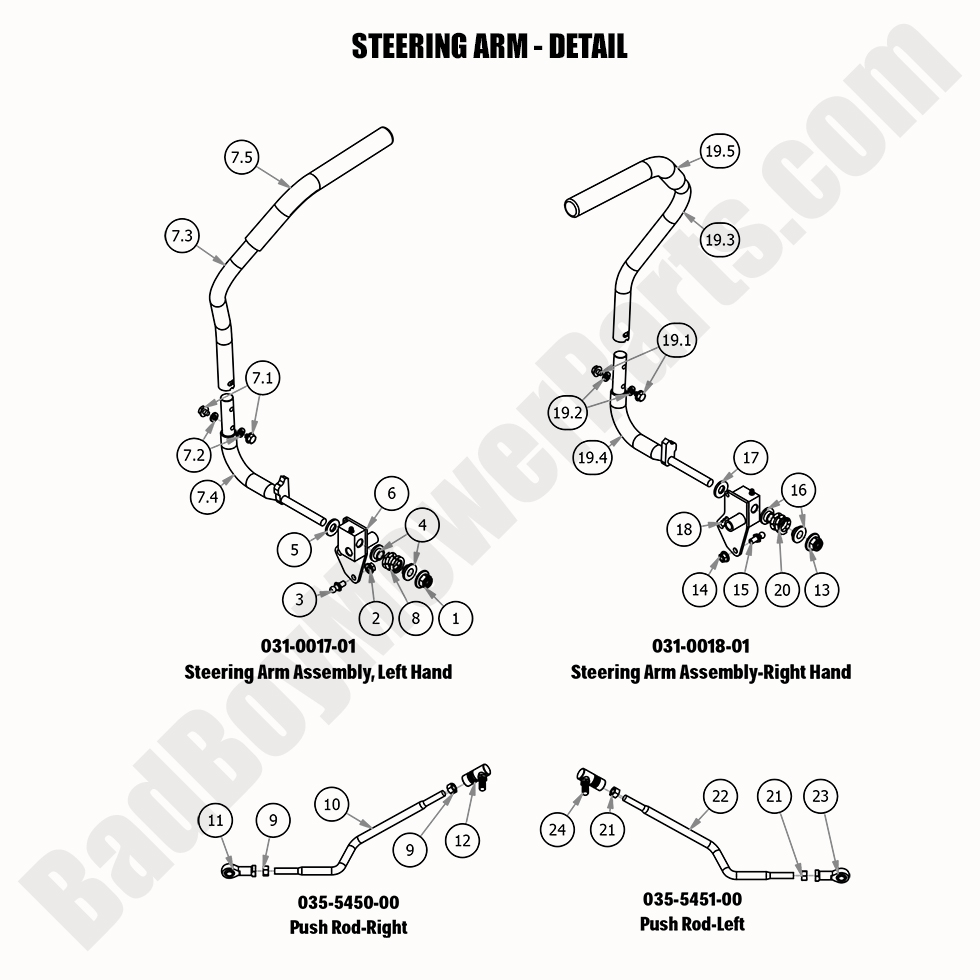

2020 MZ & MZ Magnum - Steering Arm - Detail

2020 MZ & MZ Magnum - Steering Arm - Detail

The 2020 MZ & MZ Magnum Steering Arm - Detail is a crucial component that ensures precise control and steering ability for your mower. If you need to replace or repair the steering arm, BadBoyMowerParts.com has an extensive selection of Bad Boy Mower Parts that are compatible with your 2020 MZ & MZ Magnum model. Our Bad Boy Mower Part diagrams make it easy to find the exact part you need, whether it's the steering arm itself or related components like bearings or bushings. With our range of Bad Boy Lawn Mower Parts, you can be confident that you're getting high-quality replacements. Bad Boy Parts Online allows you to shop quickly and easily, and with Free Shipping On Orders Over $100, your parts arrive at no additional cost. Keep your mower’s steering in top condition by shopping with us today.

Bad Boy Mower Parts Lookup

2020 MZ & MZ Magnum - Steering Arm - Detail
  Position Number SKU Product Title Price
1.0 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1.1 031-0017-01 031-0017-01 - Left Steering Arm Assembly (See Models Used On for Details)
$145.99
1 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
2 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
3 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
4 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
5 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
6 031-0017-98 031-0017-98 - 2017-2023 Left Drive Lever Housing (See Models Used On For Details)
$31.23
7.0 031-8850-70 031-8850-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$93.64
7.1 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
7.2 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
7.3 031-8850-02 031-8850-02 - Steering Arm Left - Tubing (See Models Used On For Details)
$85.12
7.4 031-9020-70 031-9020-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$85.17
7.5 069-4007-00 069-4007-00 - Rubber Steering Arm USE 069-4010-00 (obsolete)
use part #069-4010-00
$8.12
8 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
9.0 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
9 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
11 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
12 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
13.0 031-0018-01 031-0018-01 - Right Steering Arm Assembly (See Models Used On for Details)
$145.99
18 031-0018-98 031-0018-98 - 2017-2023 Right Drive Lever Housing (See Models Used On For Details)
$23.42
19.0 031-8851-70 031-8851-70 - Right Steering Arm Black Elbow (See Models Used On For Details)
$93.64
19.3 031-8851-02 031-8851-02 - Steering Arm Right - 5" Tubing (See Models Used On For Details)
$85.12
19.4 031-9025-70 031-9025-70 - Right Steering Arm Black Elbow
$85.17
21.0 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
