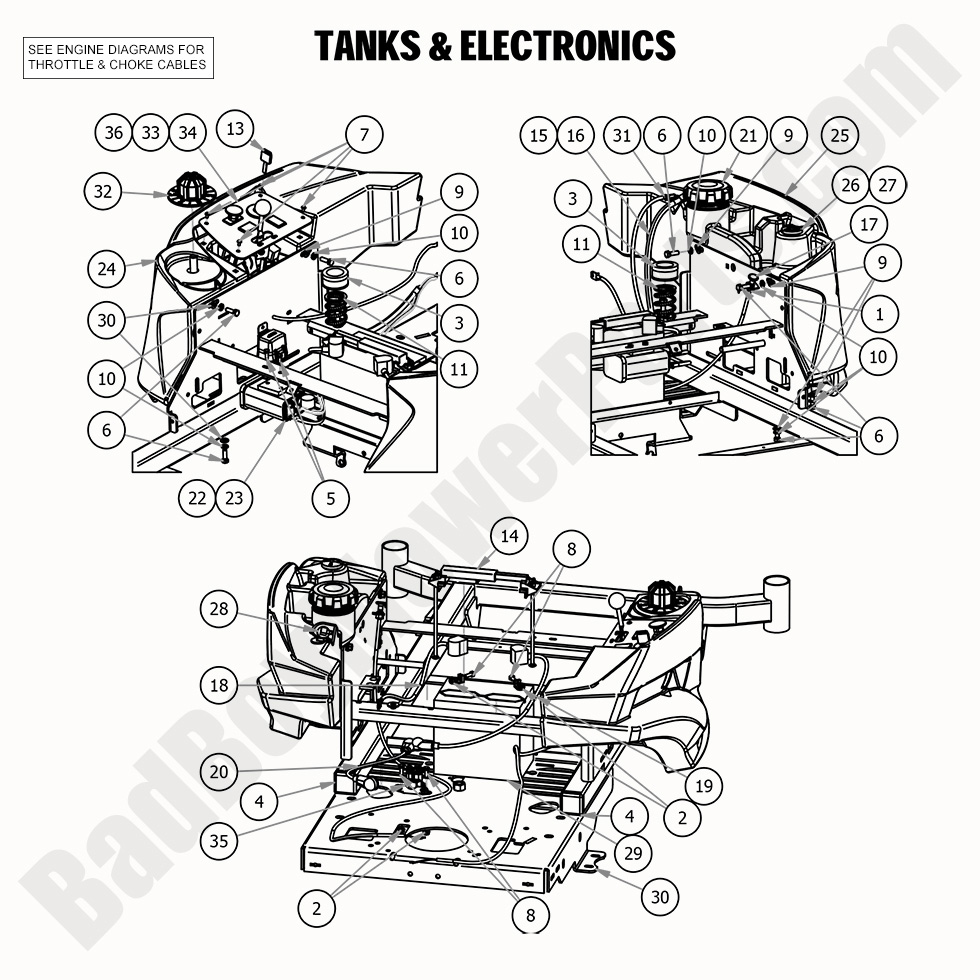

2020 MZ & MZ Magnum - Tanks & Electronics

2020 MZ & MZ Magnum - Tanks & Electronics

The 2020 MZ & MZ Magnum Tanks & Electronics are critical components that help ensure your mower operates efficiently. Whether it's the fuel tank, battery, or wiring system, having high-quality replacement parts is essential for maintaining optimal performance. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts for the 2020 MZ & MZ Magnum series, including tanks and electrical components. Our Bad Boy Mower Part diagrams make it easy to locate the parts you need, whether you’re replacing a fuel tank or repairing a wiring issue. With our Bad Boy Lawn Mower Parts, you can trust that each component is built for durability and precision. When you shop Bad Boy Parts Online, you can find everything needed for your mower’s tanks and electronics. Plus, enjoy Free Shipping On Orders Over $100, ensuring you get your parts delivered with ease.

Bad Boy Mower Parts Lookup

2020 MZ & MZ Magnum - Tanks & Electronics
  Position Number SKU Product Title Price
1 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
2 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
3 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
4 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
5 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
6 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
7 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
8 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
9 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
10 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
11 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
13 042-9000-00 042-9000-00 - Ignition Key
$4.06
14 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
15 051-0001-00 051-0001-00 - Fuel Line-15" (See Models Used On For Details)
$40.53
16 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
18 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
19 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
20 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
21 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
22 067-0015-01 067-0015-01 - MZ Briggs EPA Cannister Assy (obsolete)
use part #067-0015-00
$46.78
23 067-0015-02 067-0015-02 - MZ Kohler EPA Cannister Assy
$56.72
24 067-2080-50 067-2080-50 - Right Side Console (See Models Used On For Details)
$228.99
25 067-2090-50 067-2090-50 - Left Side Fuel Tank 2017-2024 MZ & MZ Magnum
$248.99
26 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
27 067-6056-00 067-6056-00 - Fuel Gauge Grommet (See Models Used On For Detail)
$7.14
28 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
30 070-5810-00 070-5810-00 - 2017-2021 ZT/MZ/MZ Magnum Frame For 42" & 48" Deck Units
$1199.99
31 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
32 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39
33 079-3460-01 079-3460-01 - 2017 - 2021 MZ Magnum Control Panel Assy.
$105.93
34 079-3460-02 079-3460-02 - 2017-2022 MZ Control Panel Assy.
$105.93
35 108-0001-00 108-0001-00 - Solenoid
$29.41
36 216-1000-17 216-1000-17 - 2017-2024 MZ/ZT/MAV Tach Wire Assy
$7.28
