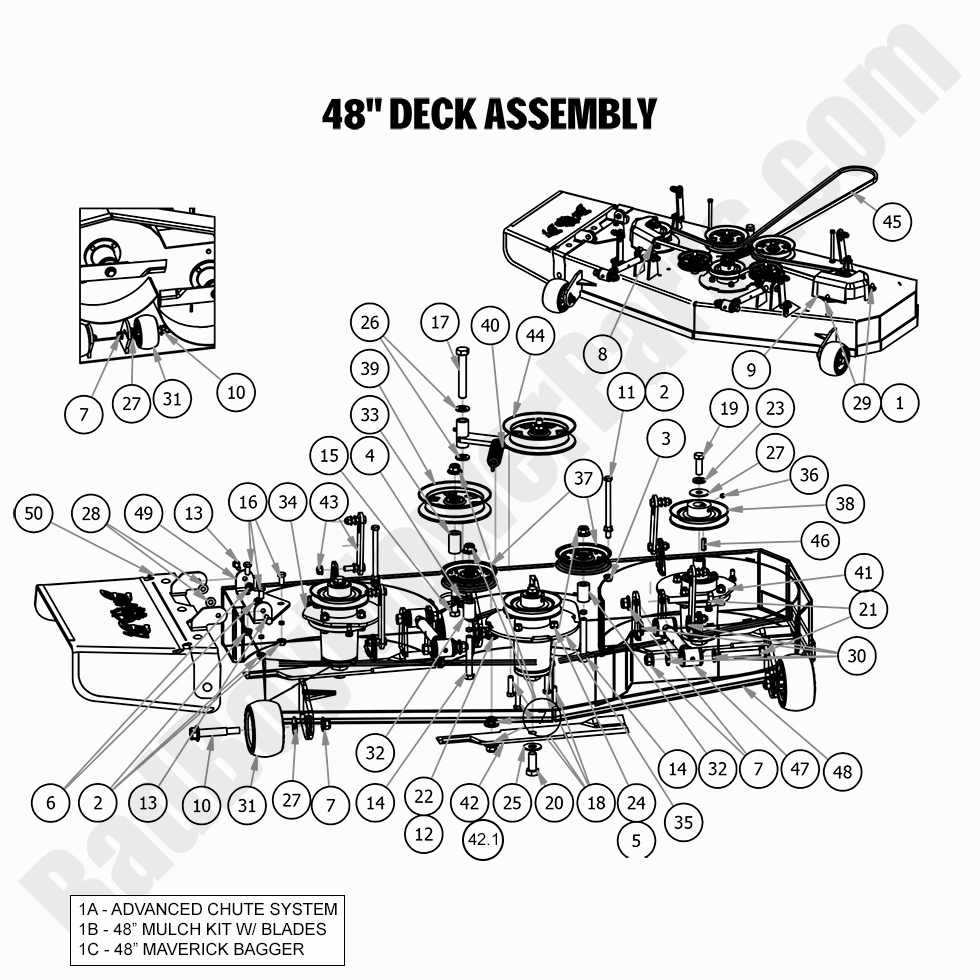

2020 Maverick - 48" Deck Assembly

2020 Maverick - 48" Deck Assembly

For those with the 2020 Maverick 48" Deck Assembly, maintaining and replacing parts is crucial for optimal performance. At BadBoyMowerParts.com, we specialize in offering the highest quality Bad Boy Mower Parts to keep your deck functioning perfectly. Whether you're looking for replacement blades, pulleys, or belts, we carry all the Bad Boy Lawn Mower Parts you need. Our website provides detailed Bad Boy Mower Part diagrams to help you navigate through the parts, ensuring you get exactly what you need. With Free Shipping On Orders Over $100, you can save on essential deck assembly components. If your 2020 Maverick needs a new deck assembly or individual parts for the 48" deck, we’re your one-stop shop for everything, and we make it easy to order parts online.

Bad Boy Mower Parts Lookup

2020 Maverick - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1B 210-0248-50 210-0248-50 - 2017- 2025 48" Mulch Kit w/Blades (Not for Avenger and MZ)
$318.45
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
5 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-4025-00 014-4025-00 - Extra Small Pulley Cover - Right (See Models Used On For Details)
$17.86
9 014-4026-00 014-4026-00 - Extra Small Pulley Cover - Left
$17.86
10 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48

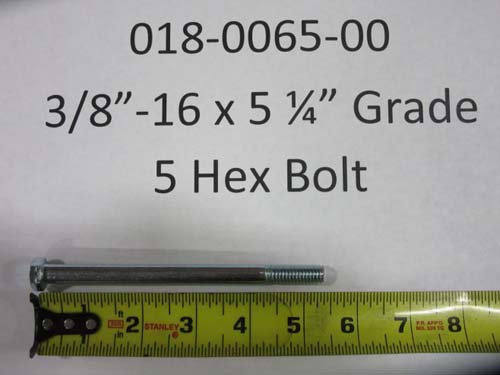

11 018-0065-00 018-0065-00 - 3/8"-16 x 5 1/4" Hex Bolt
$4.39
12 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
13 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
14 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
15 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
16 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
17 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
18 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
19 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
20 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
21 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
22 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
23 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
24 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
25 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
26 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
27 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
28 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
29 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
30 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
31 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
32 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
33 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
34 026-0024-00 026-0024-00 - 42 & 48 Deck Spindle Support Plate
$14.19
35 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
36 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
37 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
38 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
39 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
40 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
41 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
42.1 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
42 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
43 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
44 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
45 041-1470-00 041-1470-00 - B147 Deck Belt (See Models Used On For Details)
$87.39
46 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
47 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
48 060-4817-00 060-4817-00 - 48" Deck Shell (See Models Used On For Details)
$1059.99
49 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
50 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
