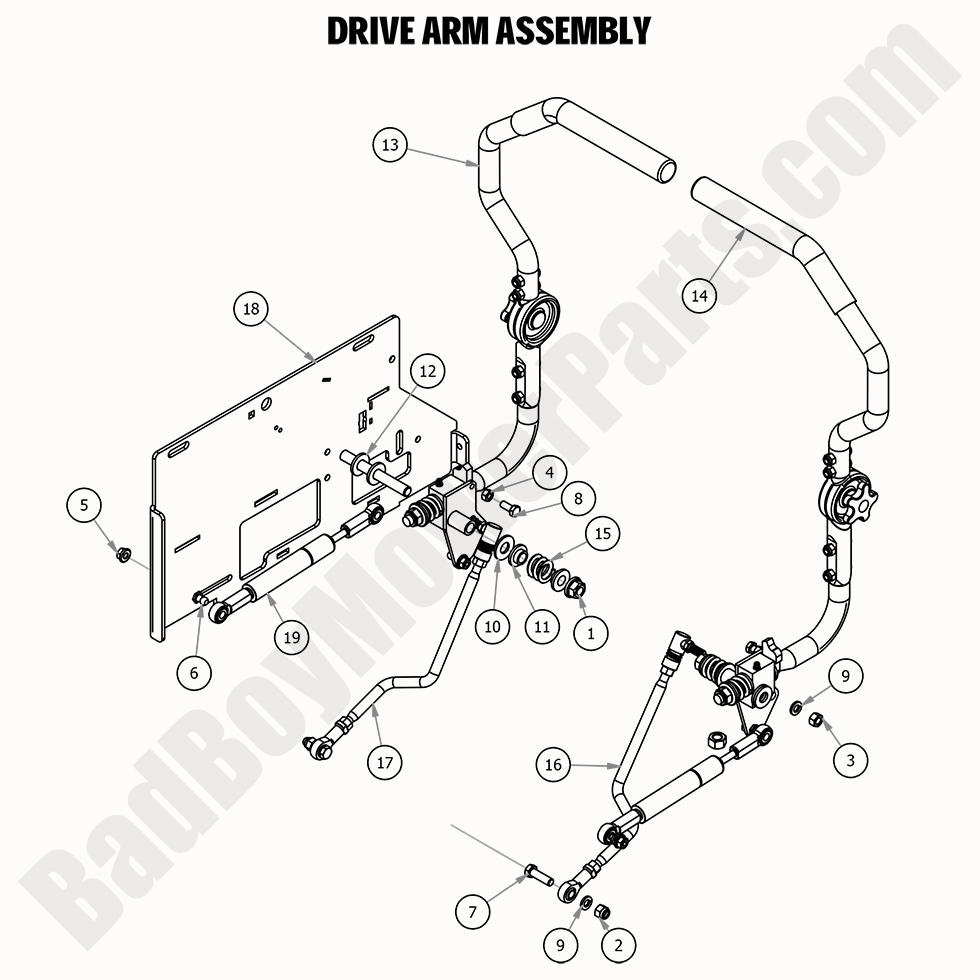

2020 Maverick - Drive Arm Assembly

2020 Maverick - Drive Arm Assembly

If you need a new 2020 Maverick Drive Arm Assembly, BadBoyMowerParts.com is the perfect place to shop. We offer a comprehensive range of Bad Boy Mower Parts that cater specifically to your 2020 Maverick model. Whether you're replacing a worn-out drive arm or need a complete assembly, we have you covered. Our easy-to-use platform allows you to browse detailed Bad Boy Mower Part diagrams to ensure you're getting the correct parts for your mower. Plus, with Free Shipping On Orders Over $100, it's easier than ever to complete your repairs without worrying about shipping fees. Get your parts fast and keep your 2020 Maverick running smoothly with the right drive arm assembly.

Bad Boy Mower Parts Lookup

2020 Maverick - Drive Arm Assembly
  Position Number SKU Product Title Price
1 013-0010-00 013-0010-00 - 1/2-13 Mechanical Lock Nut
$2.99
2 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
3 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
4 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
5 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
6 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
7 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
8 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
9 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
10 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
11 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
12 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
13 031-0017-03 031-0017-03 - 2019-2020 Maverick Left Steering Arm Assembly
$154.99
14 031-0018-03 031-0018-03 - 2019-2020 Maverick Right Steering Arm Assembly
$144.59
15 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
16 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
17 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
18 070-5490-18 070-5490-18 - 2018-2020 Maverick Frame
$1099.99
19 087-0001-00 087-0001-00 - Steering Damper (See Models Used On For Details)
$62.40
