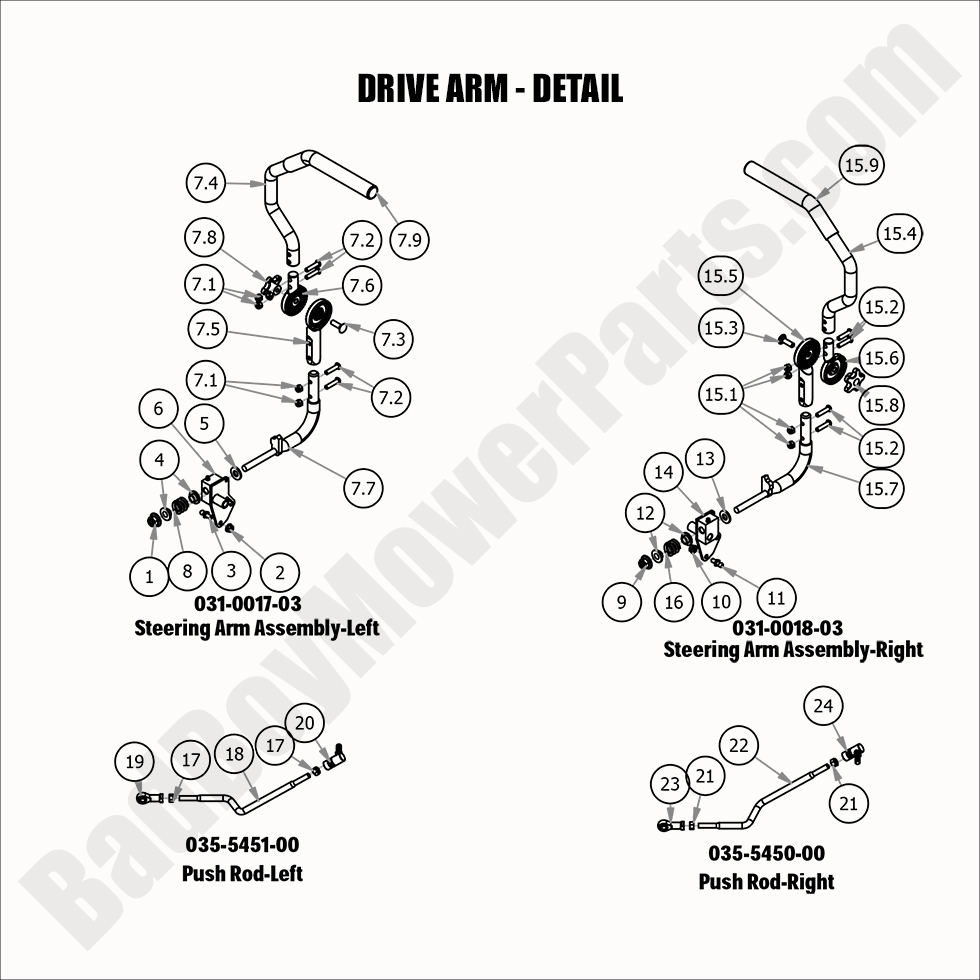

2020 Maverick - Drive Arm - Detail

2020 Maverick - Drive Arm - Detail

The 2020 Maverick Drive Arm is an essential part of the mower's drivetrain system. Whether you need to replace or repair it, BadBoyMowerParts.com has all the Bad Boy Mower Parts you need to keep your mower functioning like new. From detailed Bad Boy Mower Part diagrams to high-quality Bad Boy Lawn Mower Parts, our website is a one-stop shop for mower parts. You can quickly locate the Bad Boy Parts Online to replace your drive arm and get back to mowing. Our easy-to-navigate platform also offers Free Shipping On Orders Over $100, ensuring you get your parts quickly and affordably. Whether you're tackling a repair or routine maintenance, we provide the necessary components to keep your 2020 Maverick running at its best.

Bad Boy Mower Parts Lookup

2020 Maverick - Drive Arm - Detail
  Position Number SKU Product Title Price
1.0 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1.1 031-0017-03 031-0017-03 - 2019-2020 Maverick Left Steering Arm Assembly
$154.99
1 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
2 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
3 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
4 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
5 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
6 031-0017-98 031-0017-98 - 2017-2023 Left Drive Lever Housing (See Models Used On For Details)
$31.23
7.0 031-9000-18 031-9000-18 - Left Adjustable Steering Arm (See Models Used On For Details)
$144.50
7.1 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
7.2 018-2020-18 018-2020-18 - 5/16-18 x 1 3/8" Button Head Torx Drive
$2.99
7.3 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
7.4 031-9010-18 031-9010-18 - Upper Steering Arm (See Models Used On For Details)
$28.32
7.5 031-9014-18 031-9014-18 - Black Lower Adjuster Steering Arm 2019-2022 Maverick, Compact Outlaw
$53.24
7.6 031-9017-18 031-9017-18 - Black Upper Adjuster - Steering Arm (See Models Used On For Details)
$53.24
7.7 031-9020-18 031-9020-18 - Left Black Steering Arm Elbow
$85.17
7.8 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
7.9 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
8 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
9.0 031-0018-03 031-0018-03 - 2019-2020 Maverick Right Steering Arm Assembly
$144.59
14 031-0018-98 031-0018-98 - 2017-2023 Right Drive Lever Housing (See Models Used On For Details)
$23.42
15.0 031-9050-18 031-9050-18 - 2017 - 2022 Right Adjustable Steering Arm Black
$144.50
15.5 031-9015-18 031-9015-18 - Left Lower Steering Arm Adjuster Black
$53.24
15.6 031-9016-18 031-9016-18 - Black Upper Adjuster - Steering Arm (See Models Used On For Details)
$53.24
15.7 031-9025-18 031-9025-18 - 2019 and Newer Black Steering Arm Elbow - Right
$85.17
17.0 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
17 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
19 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
20 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
21.0 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
