2020 Maverick - Seat and Brake Handle - Detail

2020 Maverick - Seat and Brake Handle - Detail

The 2020 Maverick Seat and Brake Handle - Detail are crucial for comfort and control while mowing. At BadBoyMowerParts.com, we offer a full selection of Bad Boy Mower Parts to replace or upgrade your seat and brake handle. Whether you're looking for a new seat, handle, or hardware, we’ve got all the Bad Boy Lawn Mower Parts you need. Use our Bad Boy Mower Part diagrams to help you easily find the right parts for your 2020 Maverick. Enjoy the added benefit of Free Shipping On Orders Over $100 for a seamless shopping experience. Find all your replacement parts online with Bad Boy Parts Online, and keep your mower in excellent condition.

Bad Boy Mower Parts Lookup

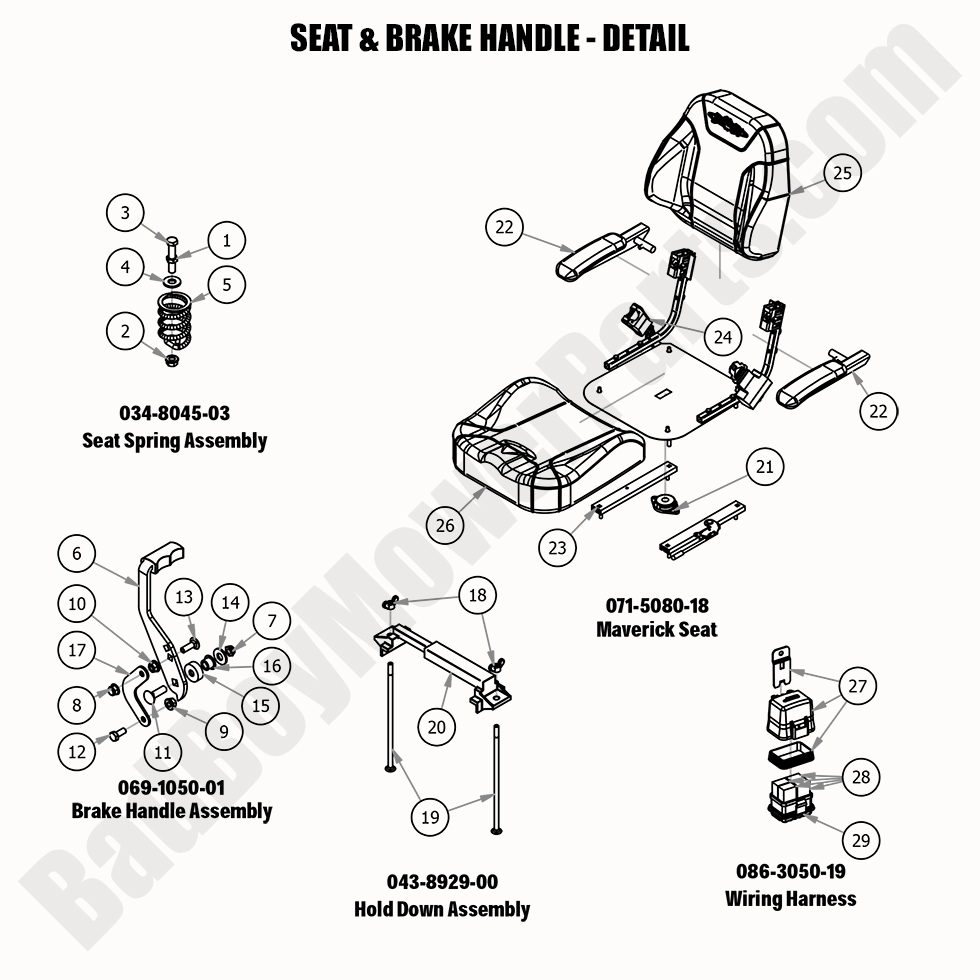

2020 Maverick - Seat and Brake Handle - Detail
  Position Number SKU Product Title Price
1.0 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
1 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
4 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
5 034-8045-00 034-8045-00 - Seat Spring
$20.49
6.0 069-1050-01 069-1050-01 - Brake Handle Assembly
$21.39
6 069-1050-00 069-1050-00 - Brake Handle Cam Over (See Models Used On For Details)
$18.45
7 013-0012-00 013-0012-00 - 3/8-16 Centerlock Half Nut
$3.29
8 013-8042-00 013-8042-00 - 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
$2.99
9 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
10 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
11 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
12 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
13 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
15 025-0001-00 025-0001-00 - Brake Lever Spacer (See Models Used On For Detail)
$8.01
16 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
17 039-0150-00 039-0150-00 - Brake Cable Adapter Bracket (See Models Used On For Details)
$18.72
18.0 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
18 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
19 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
21.0 071-5080-18 071-5080-18 - 2019-2020 Maverick Seat/Compact Outlaw Seat
$599.99
22 071-2054-00 071-2054-00 - Arm Rest Kit (See Models Used On For Details) (obsolete)
use part #071-2119-00
$139.99
23 071-5015-00 071-5015-00 - Seat Rails
$93.69
24 071-5083-00 071-5083-00 - Seat Belt (See Models Used On For Details)
$106.14
25 071-5084-00 071-5084-00 - Back Cover for 071-5080-18
$119.41
26 071-5089-00 071-5089-00 - Seat Cover for 071-5080-18
$119.41
27.0 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
27 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
28 086-1202-19 086-1202-19 - Relay Terminal
$24.97
