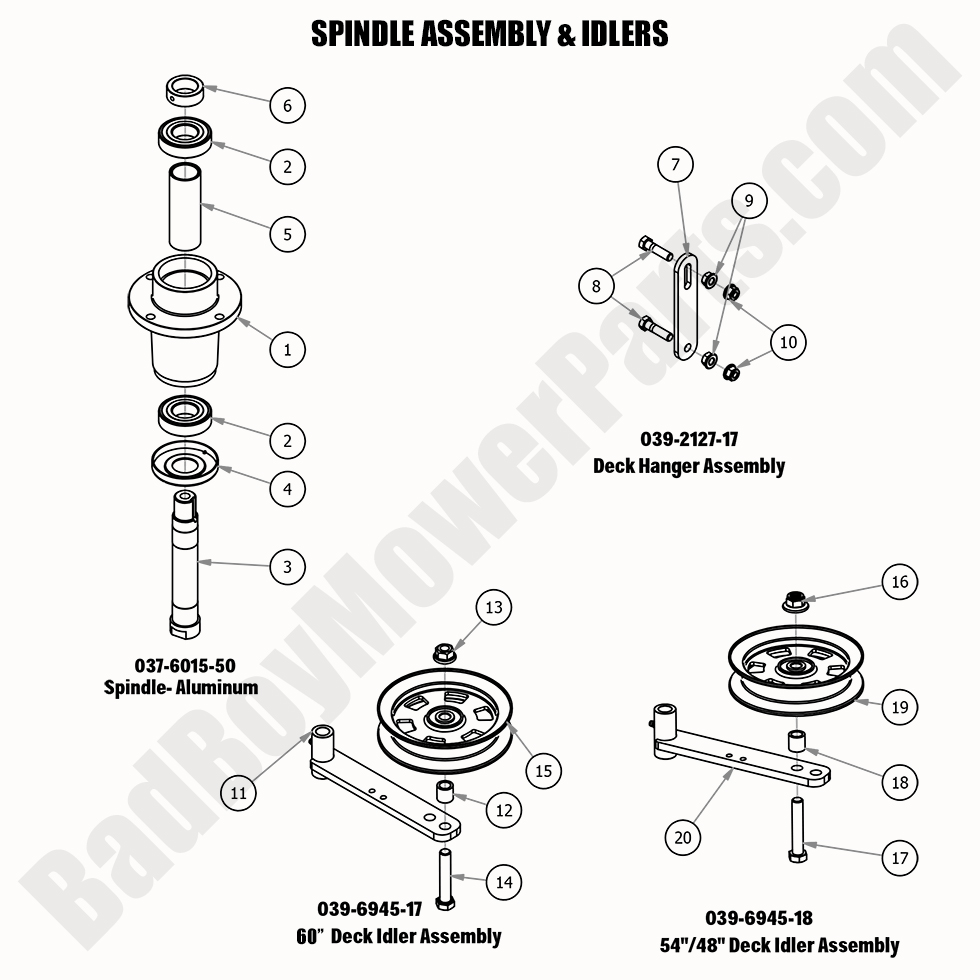

2020 Maverick - Spindle Assembly & Idlers

2020 Maverick - Spindle Assembly & Idlers

The 2020 Maverick Spindle Assembly & Idlers are essential for proper deck movement and cutting performance. At BadBoyMowerParts.com, we carry high-quality Bad Boy Mower Parts designed to keep your spindle assembly and idlers in excellent condition. Whether you need to replace a worn-out spindle or idler, our selection of Bad Boy Lawn Mower Parts ensures your mower works like new. Use our Bad Boy Mower Part diagrams to easily locate the correct parts for your 2020 Maverick. With Free Shipping On Orders Over $100, we make it more affordable to maintain your mower. Shop Bad Boy Parts Online for all your spindle and idler needs.

Bad Boy Mower Parts Lookup

2020 Maverick - Spindle Assembly & Idlers
  Position Number SKU Product Title Price
1.0 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
1 037-6017-50 037-6017-50 - Compact Outlaw / Maverick / Walkbehind / ZT & 2007 Pup Aluminum Spindle Housing (obsolete)
use part #037-6015-50
$199.99
2 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
3 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
4 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76

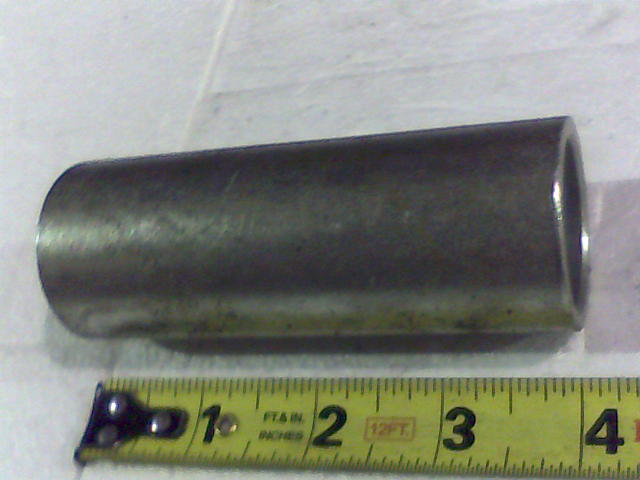

5 037-8050-00 037-8050-00 - Tube Spacer For Spindle Shaft - Small Spindle
$8.69

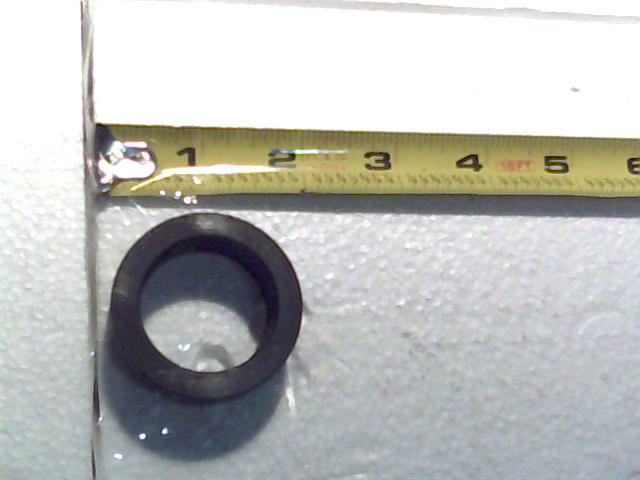

6 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28

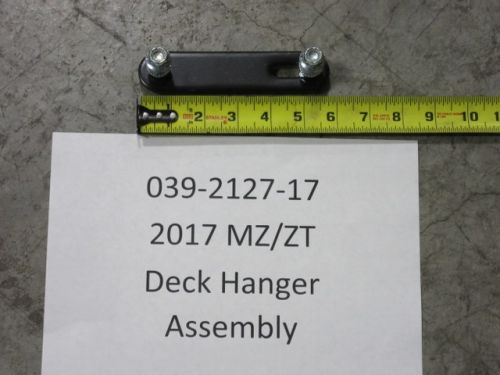

7.0 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60

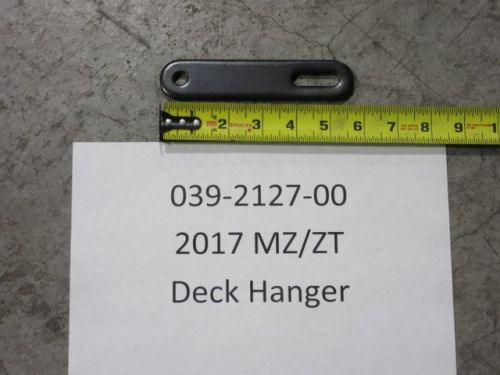

7 039-2127-00 039-2127-00 - Deck Hanger (See Models Used On For Details) (obsolete)
use part #039-2127-17
$15.60
8 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99

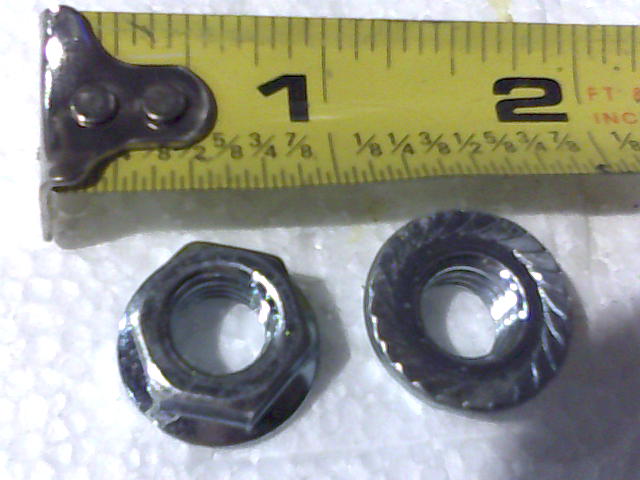

9 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
11.0 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
11 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
12 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
13 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
14 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
15 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
16.0 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
