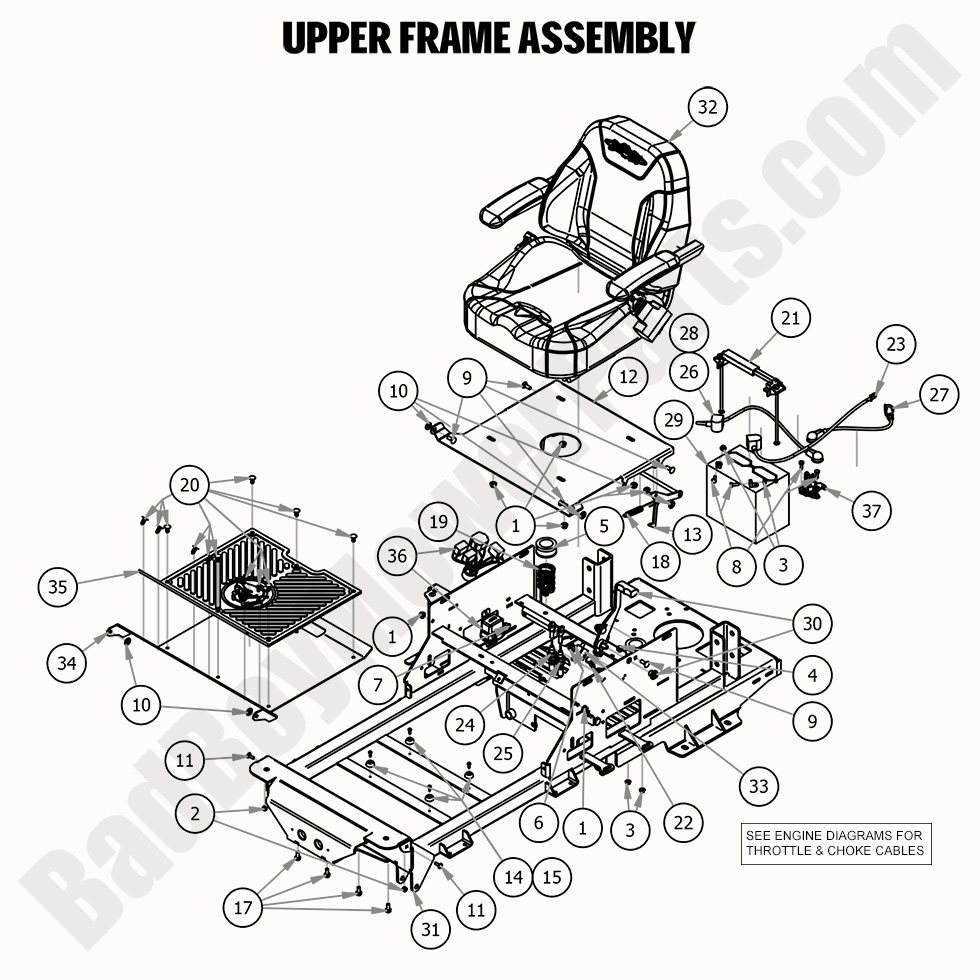

2020 Maverick - Upper Frame Assembly

2020 Maverick - Upper Frame Assembly

The 2020 Maverick Upper Frame Assembly is essential for supporting the upper structure of your mower. At BadBoyMowerParts.com, we provide a comprehensive selection of Bad Boy Mower Parts to replace or repair your upper frame. Whether you need individual components or a complete assembly, we’ve got you covered. Browse our Bad Boy Mower Part diagrams to identify the right parts for your 2020 Maverick. Take advantage of Free Shipping On Orders Over $100 to get the parts you need without the extra cost. Order all your Bad Boy Lawn Mower Parts online and ensure your mower operates efficiently.

Bad Boy Mower Parts Lookup

2020 Maverick - Upper Frame Assembly
  Position Number SKU Product Title Price
1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
2 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
3 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
4 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
5 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
6 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
7 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
8 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
9 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
10 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
11 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
12 026-1016-00 026-1016-00 - Seat Plate
$102.11
13 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
14 029-4010-00 029-4010-00 - Button Bumper
$2.99
15 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
17 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
18 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
19 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
20 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
21 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
23 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
24 064-3050-00 064-3050-00 - Brake Cable - 18.50"
$51.47
25 064-3051-00 064-3051-00 - Brake Cable-24.50" (See Models Used On For Details)
$57.72
26 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
27 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
28 064-8060-00 064-8060-00 - 36" Red Battery Cable (See Models Used On For Details)
$20.93
30 069-1050-01 069-1050-01 - Brake Handle Assembly
$21.39
31 070-5490-18 070-5490-18 - 2018-2020 Maverick Frame
$1099.99
32 071-5080-18 071-5080-18 - 2019-2020 Maverick Seat/Compact Outlaw Seat
$599.99
33 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
34 079-3470-18 079-3470-18 - Floor Panel 2018-2024 Maverick, 2021-2024 ZT Elite
$106.99
35 081-4000-00 081-4000-00 - 2017-2021 Floor Mat (See Models Used On For Details)
$62.48
36 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
37 108-0001-00 108-0001-00 - Solenoid
$29.41
