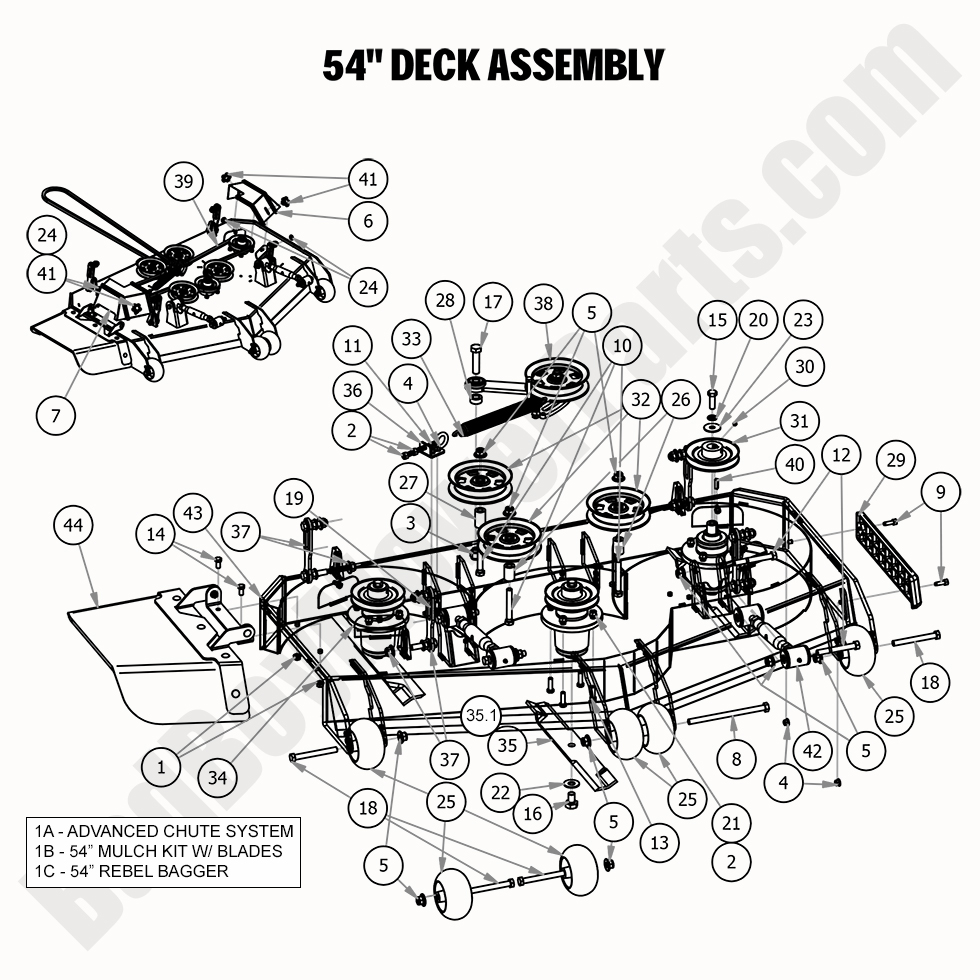

2020 Rebel - 54" Deck Assembly

2020 Rebel - 54" Deck Assembly

The 2020 Rebel 54" Deck Assembly is a vital component of your mower, ensuring smooth and efficient cutting performance. Whether you're replacing a worn-out deck or performing maintenance, it's essential to use the correct Bad Boy Mower Parts for your 54" deck. The Bad Boy Mower Part diagrams will guide you through identifying the specific parts needed for the 2020 Rebel 54" Deck Assembly. With Bad Boy Parts Online, you can easily order parts that are designed to fit perfectly and ensure your mower performs at its best. From spindles and idlers to the deck frame itself, you'll find everything you need. Additionally, enjoy Free Shipping On Orders Over $100, making it easier to get your mower back up and running without the added shipping costs. Visit BadBoyMowerParts.com for all your Bad Boy Lawn Mower Parts, including the 2020 Rebel 54" Deck Assembly.

Bad Boy Mower Parts Lookup

2020 Rebel - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-5419-00 088-5419-00 - Advanced Chute System for 2019-2025 54" Outlaws
$249.00
1B 210-0354-00 210-0354-00 - 54" Mulch Kit w/Blades (Not for MZ or Avenger) (See Models Used On for Detail)
$318.45
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
3 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 014-5050-00 014-5050-00 - 54" Deck Left Pulley Cover 2019-2022 Rebel & Rogue
$17.86
7 014-5051-00 014-5051-00 - 54" Deck Right Pulley Cover 2019-2025 Rebel & Rogue
$17.86
8 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
9 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
10 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
11 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
12 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
13 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
14 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
15 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
16 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
17 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
18 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
19 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
20 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
21 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
22 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
23 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
24 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
25 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
26 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
27 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
28 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
29 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
30 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
31 033-6006-00 033-6006-00 - 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (without set screw)
$35.48
32 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
33 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
34 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
35.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
35 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
36 039-0144-00 039-0144-00 - Deck Eye Bolt Tab For Rebel/Renegade/Rogue (See Models Used On For Details)
$14.19
37 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
38 039-6946-18 039-6946-18 - Deck Idler Assembly
$78.08
39 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
40 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
41 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
42 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
43 060-5551-19 060-5551-19 - 2019 54" Sloped Deck Weldment
$1099.99
44 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
