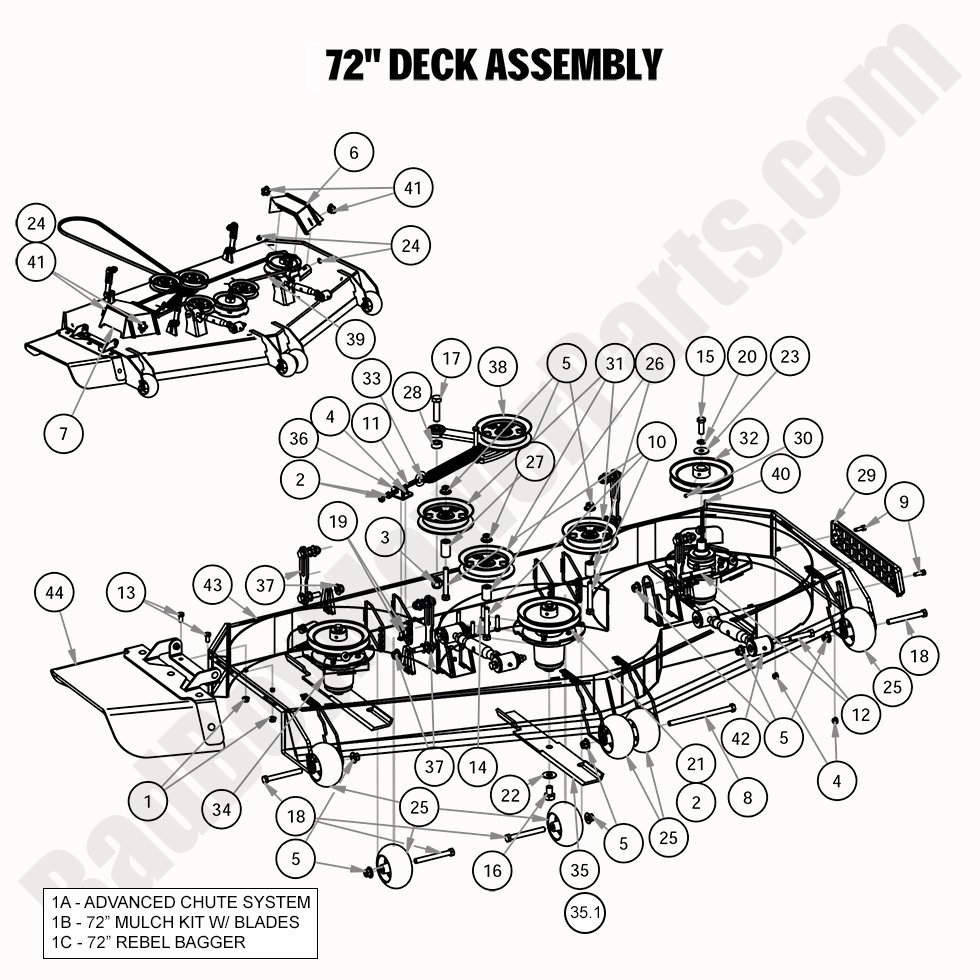

2020 Rebel - 72" Deck Assembly

2020 Rebel - 72" Deck Assembly

The 2020 Rebel 72" Deck Assembly is perfect for those who need a larger cutting width to tackle bigger lawns. To ensure your mower is always working at its best, it's important to have the right Bad Boy Mower Parts for maintenance or replacement. The Bad Boy Mower Part diagrams can help you identify exactly what you need for the 72" deck, whether it's a new spindle, belt, or complete deck assembly. You can conveniently shop for these parts through Bad Boy Parts Online, where you'll find all the Bad Boy Lawn Mower Parts you need. The parts are designed for maximum durability, making sure your mower stays in great shape. Plus, with Free Shipping On Orders Over $100, you can save on your order while ensuring your mower’s deck continues to perform flawlessly. For all your 2020 Rebel 72" Deck Assembly parts, visit

Bad Boy Mower Parts Lookup

2020 Rebel - 72" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0372-00 210-0372-00 - 2019-2025 72" Mulch Kit w/Blades Outlaws
$318.45
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
3 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 014-5054-00 014-5054-00 - 72" Left Deck Pulley Cover 2019 & Up Rebel, Renegade & Rogue
$17.86
7 014-5055-00 014-5055-00 - 72" Right Deck Pulley Cover (See Models Used On For Details)
$17.86
8 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
9 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
10 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
11 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
12 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
13 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
14 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
15 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
16 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
17 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
18 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
19 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
20 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
21 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
22 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
23 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
24 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
25 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
26 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
27 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
28 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
29 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
30 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
31 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
32 033-7203-00 033-7203-00 - 7" Spindle Deck Pulley 72" Decks
$35.48
33 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
34 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
35.1 038-5400-00 038-5400-00 - 72" Gator Mulching Blade
$24.99
35 038-7230-00 038-7230-00 - 72" High Lift Fusion Blade
$24.99
36 039-0144-00 039-0144-00 - Deck Eye Bolt Tab For Rebel/Renegade/Rogue (See Models Used On For Details)
$14.19
37 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
38 039-6946-18 039-6946-18 - Deck Idler Assembly
$78.08
39 041-0202-00 041-0202-00 - B202 Deck Belt for 72" (See Models Used On for Details)
$109.40
40 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
41 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
42 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
43 060-7251-19 060-7251-19 - 72" Sloped Deck Shell 2019-Newer Rebel, Renegade & Rogue
$1461.53
44 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
