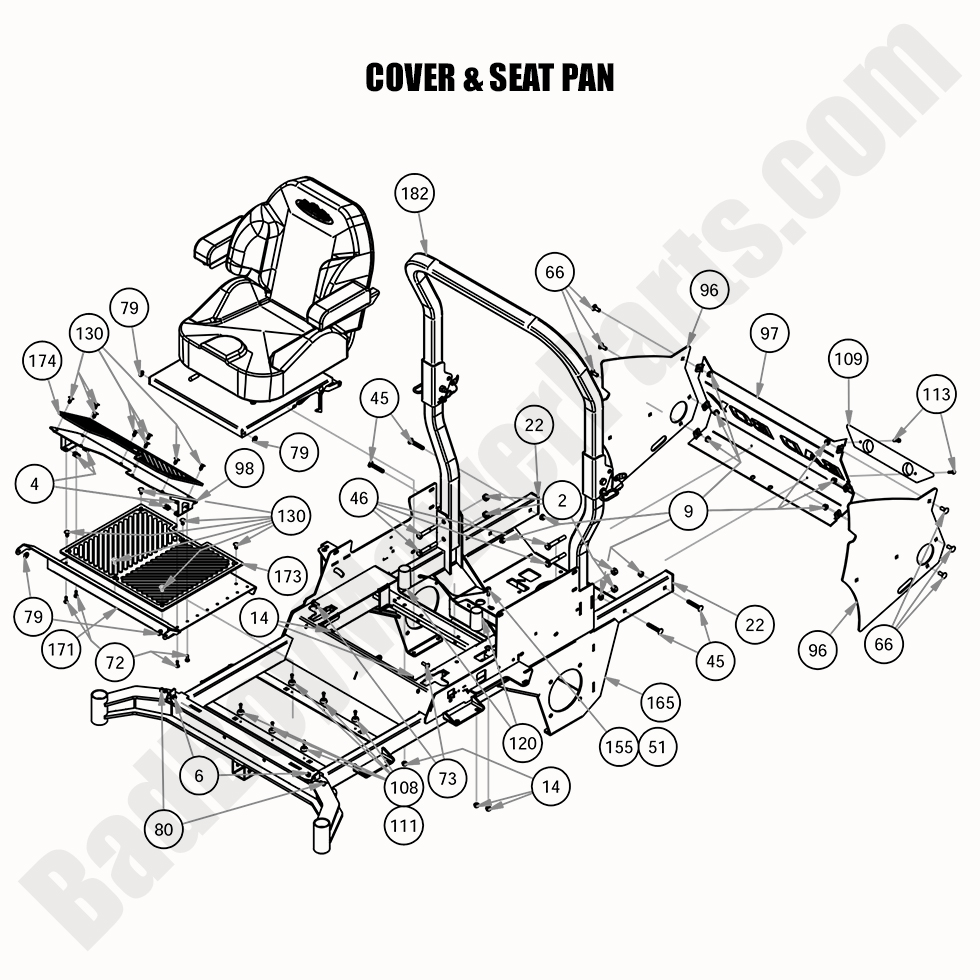

2020 Rebel - Cover & Seat Pan

2020 Rebel - Cover & Seat Pan

Keeping your 2020 Rebel Cover & Seat Pan in top condition is essential for both protection and comfort while mowing. Over time, these parts can wear out, but with the right Bad Boy Mower Parts, you can easily replace them. The Bad Boy Mower Part diagrams provide a detailed view of the components, so you know exactly what you need. Whether you’re replacing a worn seat pan or adding a protective cover to shield your mower from the elements, you can find the perfect parts from Bad Boy Parts Online. The Bad Boy Lawn Mower Parts are specifically designed for your 2020 Rebel, ensuring a seamless fit and long-lasting performance. Best of all, with Free Shipping On Orders Over $100, you can get everything you need without worrying about extra shipping fees. Explore BadBoyMowerParts.com for your 2020 Rebel Cover & Seat Pan and other essential parts.

Bad Boy Mower Parts Lookup

2020 Rebel - Cover & Seat Pan
  Position Number SKU Product Title Price
2 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
4 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
6 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
14 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
22 014-9003-00 014-9003-00 - 1 1/2 x 3 Frame Plug
$2.99
45 018-0044-00 018-0044-00 - 3/8 x 2 1/2 Carriage Bolt
$2.99
46 018-0050-00 018-0050-00 - 1/2-13 X 3.25 Hex Bolt-
$2.99
51 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
66 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
72 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
73 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
79 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
80 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
96 026-2219-00 026-2219-00 - 2019-2022 Vertical Rigid Rear Cover Side Component
$169.99
97 026-2221-00 026-2221-00 - Vertical Rear Cover Tailgate Component (See Models Used On For Detail)
$225.56
98 026-2230-00 026-2230-00 - Adjustable Foot Plate 2019-2022 Rebel, Renegade & Rogue
$70.97
108 029-4010-00 029-4010-00 - Button Bumper
$2.99
109 029-8000-00 029-8000-00 - Front Bumper (See Models Used On For Details)
$31.17
111 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
113 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
120 032-0001-00 032-0001-00 - Rubber Bumper (Seat) 2019-2022 Rebel, Renegade & Rogue
$23.41
130 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
155 064-8081-00 064-8081-00 - Seat Cable
$15.60
165 070-5371-19 070-5371-19 - 2019 - 2021 Rigid Frame Welded Assembly
$1299.99
171 079-3155-00 079-3155-00 - Floorboard (See Models Used On For Detail)
$109.99
173 081-0050-00 081-0050-00 - Floor Mat 2019-2022 Rebel, Renegade & Rogue
$78.10
174 081-0051-00 081-0051-00 - Foot Plate Mat 2019-2024 Rebel, Renegade & Rogue
$78.10
182 089-0006-00 089-0006-00 - 2019-2024 2x2 R SERIES Outlaw Folding Rops Femco # SIP3980
$836.43
