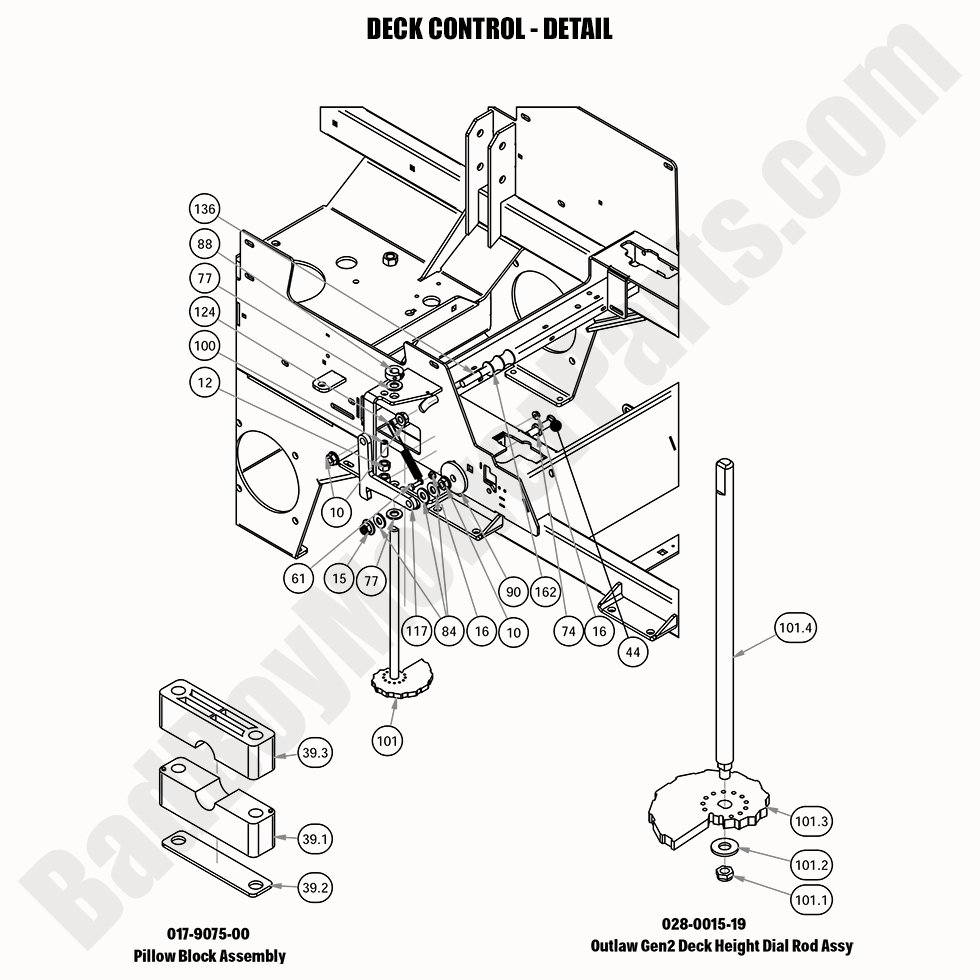

2020 Rebel - Deck Control - Detail

2020 Rebel - Deck Control - Detail

The 2020 Rebel Deck Control - Detail is an important part of your mower’s system, allowing you to adjust the deck height and ensure a consistent cut. If you're having trouble with your deck control, it’s important to replace any worn or damaged parts with the right Bad Boy Mower Parts. You can refer to the Bad Boy Mower Part diagrams for a clear view of all the components that make up the deck control system. Whether it's the cable, lever, or other small parts, Bad Boy Parts Online makes it easy to find everything you need. When you shop for Bad Boy Lawn Mower Parts, you can trust that you're getting high-quality parts that will keep your mower in top condition. Plus, enjoy Free Shipping On Orders Over $100, making it more affordable to repair or replace your 2020 Rebel Deck Control - Detail.

Bad Boy Mower Parts Lookup

2020 Rebel - Deck Control - Detail
  Position Number SKU Product Title Price
10 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
12 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
15 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
16 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
39.0 017-9075-00 017-9075-00 - Pillow Block Assembly (See Models Used On For Details)
$38.51
39.1 017-9000-00 017-9000-00 - Two Piece Pillow Block-Male
$10.99
39.2 017-9025-00 017-9025-00 - Two Piece Pillow Block-Plate
$32.09
39.3 017-9050-00 017-9050-00 - Two Piece Pillow Block-Female
$10.99
44 018-0043-00 018-0043-00 - 2 1/2 X 1/2 Carriage Bolt
$3.29
61 018-4702-00 018-4702-00 - 1/4-20 X 1-1/4 Hex Bolt
$2.99
74 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
77 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
84 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
88 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
90 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
100 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
101.0 028-0015-19 028-0015-19 - Deck Height Dial Rod Assembly 2019-2024 Rebel, Renegade & Rogue
$42.79
101.1 018-4011-00 018-4011-00 - 3/8-24 Zinc Nylon Insert Jam Locknut
$2.99
101.2 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
101.3 026-1101-00 026-1101-00 - Deck Height Cam
$15.55
101.4 028-0015-00 028-0015-00 - "R" Series Dial Rod 2019-2022 Rebel, Renegade & Rogue
$17.64
117 031-0125-00 031-0125-00 - Deck Travel Lock Lever 2019-2022 Rebel, Renegade & Rogue
$28.39
124 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
136 044-4000-00 044-4000-00 - Locking Pin (See Models Used On)
$7.25
162 069-4011-00 069-4011-00 - Travel Lock Rubber Grip
$8.79
