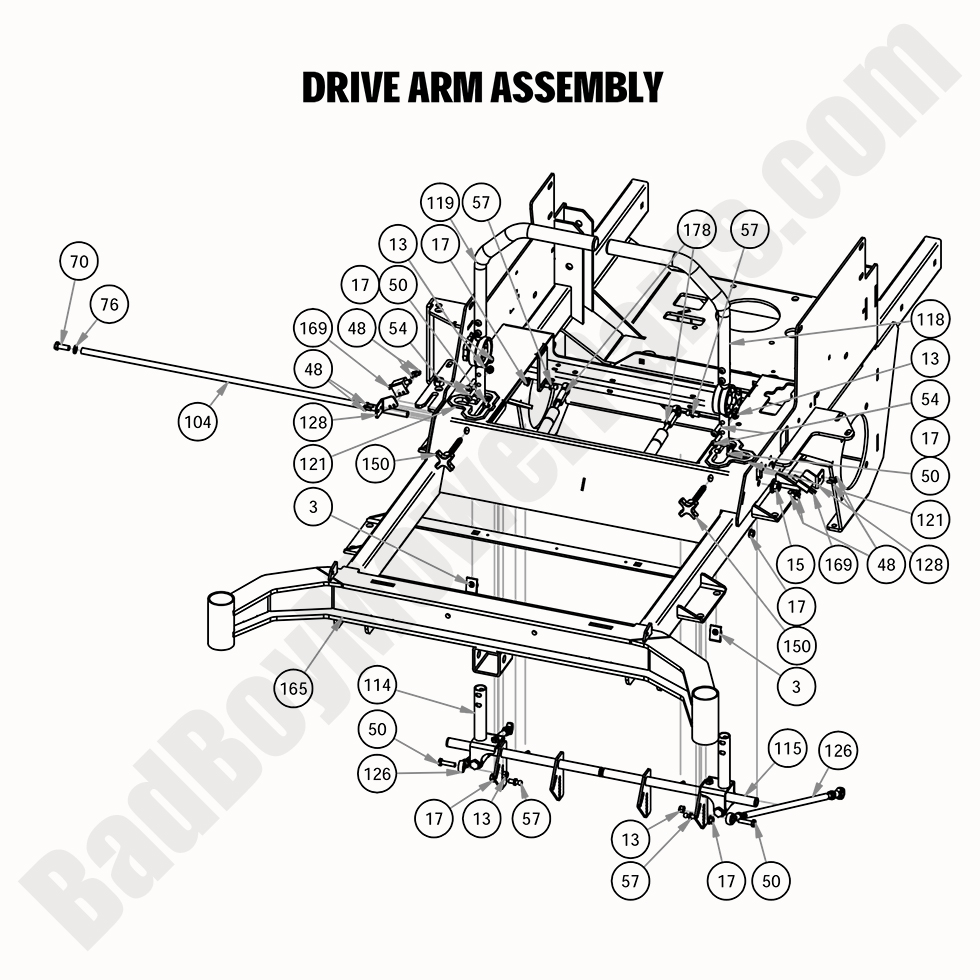

2020 Rebel - Drive Arm Assembly

2020 Rebel - Drive Arm Assembly

The 2020 Rebel Drive Arm Assembly is a crucial component of the mower’s drivetrain, transmitting power from the engine to the wheels for effective motion. If this assembly starts to wear or becomes damaged, it’s important to replace it with authentic Bad Boy Mower Parts to maintain the mower’s performance. Use the Bad Boy Mower Part diagrams to identify the correct part for your specific model. Whether you're replacing the entire drive arm assembly or individual parts, Bad Boy Parts Online makes the process easy by offering a wide selection of parts. These Bad Boy Lawn Mower Parts are designed for durability and compatibility with your 2020 Rebel, ensuring smooth operation for the long term. Don't forget that you can take advantage of Free Shipping On Orders Over $100, making it more affordable to complete your mower's repairs. Visit BadBoyMowerParts.com for the best deals on 2020 Rebel Drive Arm Assembly.

Bad Boy Mower Parts Lookup

2020 Rebel - Drive Arm Assembly
  Position Number SKU Product Title Price

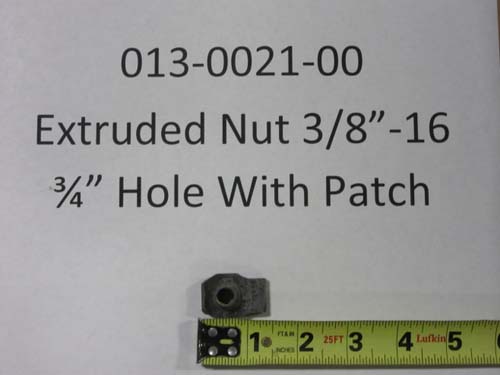

3 013-0021-00 013-0021-00 - Extruded Nut 3/8"-16 3/4"
$4.39

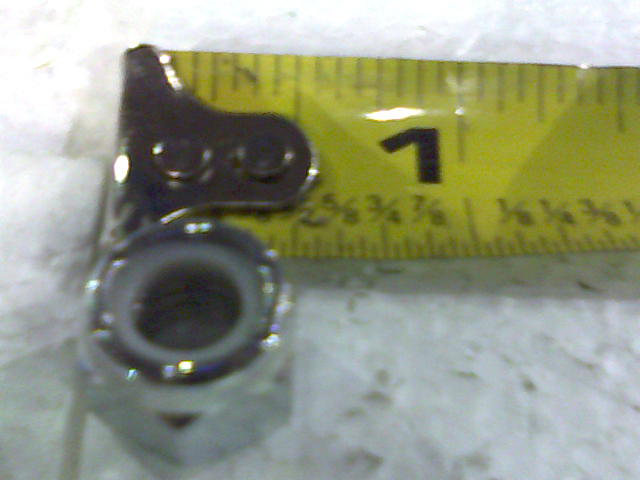

13 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
15 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
17 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
48 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99

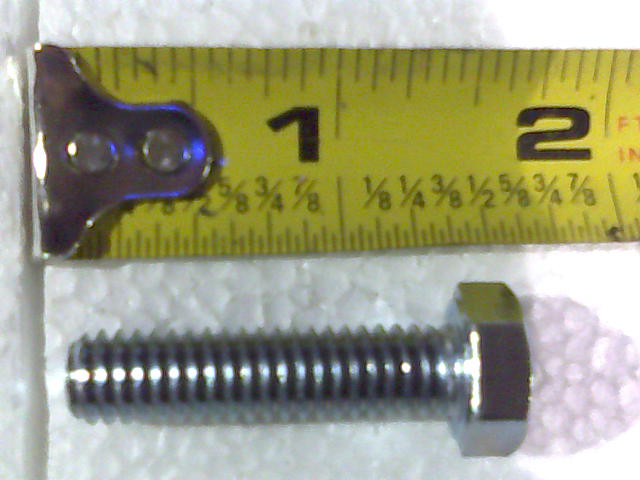

50 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99

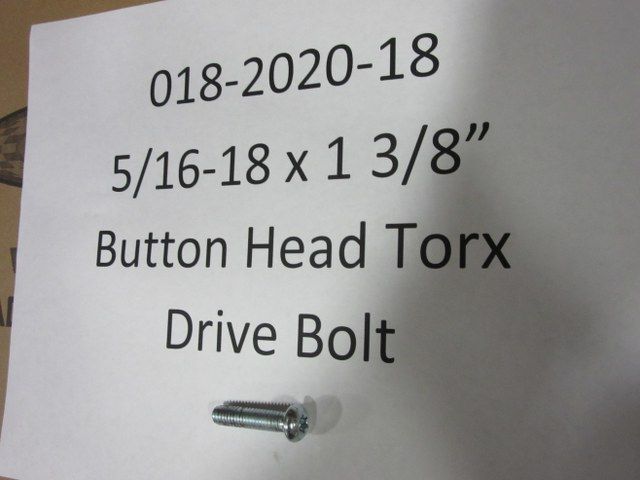

54 018-2020-18 018-2020-18 - 5/16-18 x 1 3/8" Button Head Torx Drive
$2.99

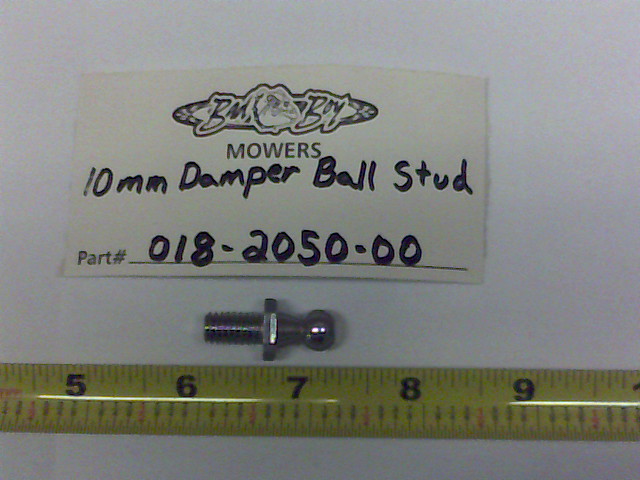

57 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
70 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
76 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
104 028-0051-00 028-0051-00 - Steering Actuator Rod 2019-2025 Rebel, Renegade & Rogue
$23.41
114 031-0030-19 031-0030-19 - R Series Right Arm Rod Assembly (See Models Used On For Details)
$85.17
115 031-0031-19 031-0031-19 - R Series Left Arm Rod Assembly, 2019-2023 Rebel/Renegade/Rogue
$85.17

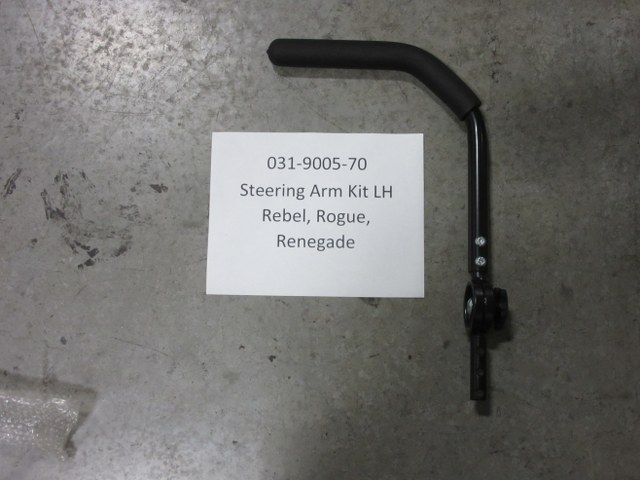

118 031-9005-70 031-9005-70 - Left Hand Adjustable Steering Arm Kit 2019-2022 Rebel, Renegade & Rogue
$132.68
119 031-9055-70 031-9055-70 - Right Hand Adjustable Steering Arm Kit 2019-2022 Rebel, Renegade & Rogue
$115.31
121 032-0002-00 032-0002-00 - Snap-In Bushing 2019-2022 Rebel, Renegade & Rogue
$15.55
126 035-0003-00 035-0003-00 - 2019 - 2022 Rebel Push Rod Assembly
$42.58

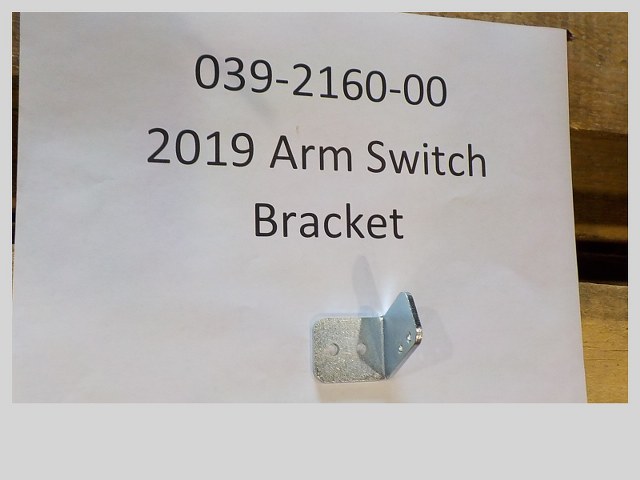

128 039-2160-00 039-2160-00 - Arm Switch Bracket (See Models Used On For More Detail)
$13.90
150 057-5800-00 057-5800-00 - Speed Limiting Knob 3/8-16X 3"
$6.41

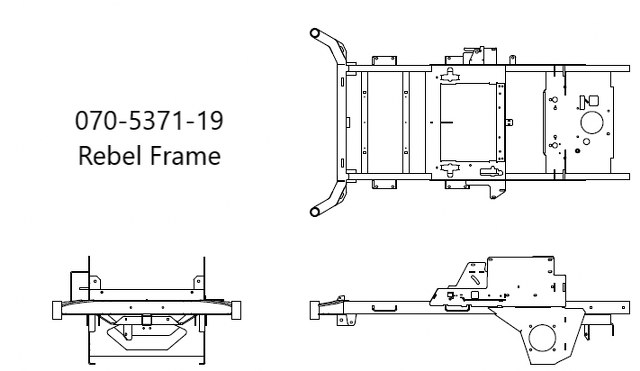

165 070-5371-19 070-5371-19 - 2019 - 2021 Rigid Frame Welded Assembly
$1299.99
169 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
178 087-0001-00 087-0001-00 - Steering Damper (See Models Used On For Details)
$62.40
