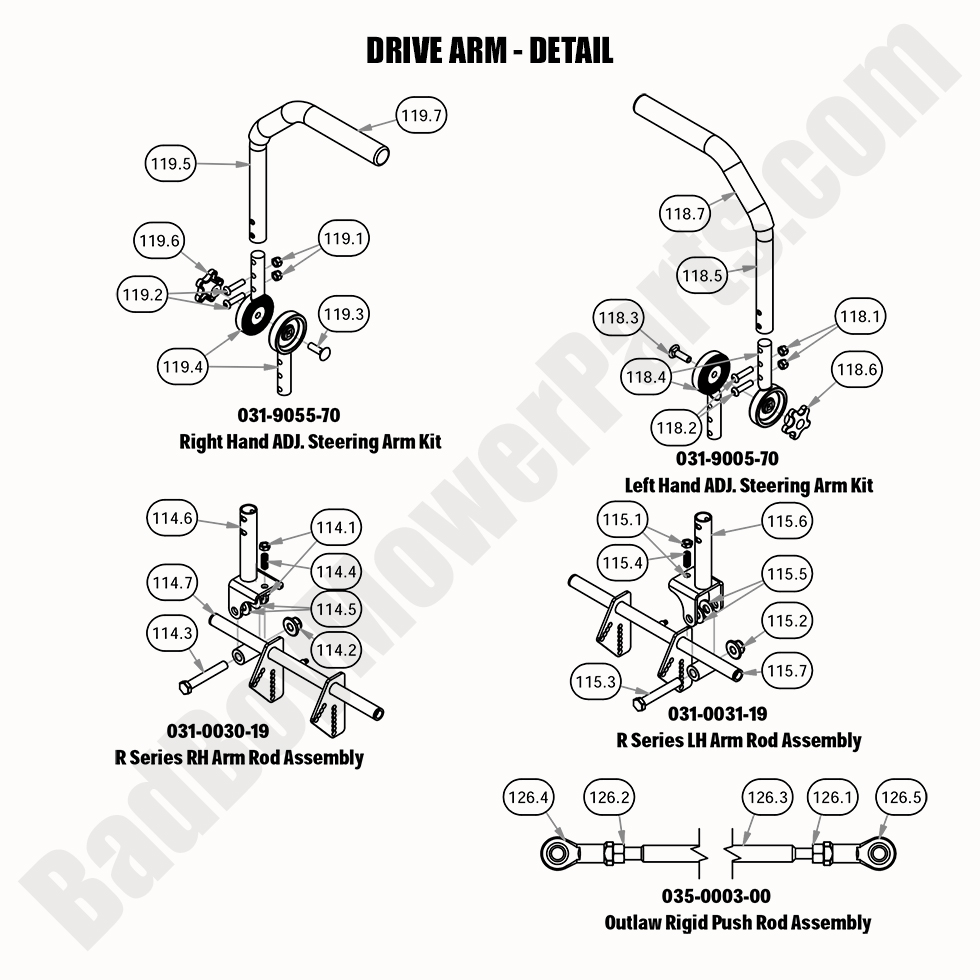

2020 Rebel - Drive Arm - Detail

2020 Rebel - Drive Arm - Detail

The 2020 Rebel Drive Arm - Detail is an important part of your mower’s drive system, helping transmit power from the engine to the wheels. If the drive arm becomes worn or damaged, it can lead to poor performance or even complete failure of your mower. To replace or repair the drive arm, you’ll need the correct Bad Boy Mower Parts, which are easy to find with the help of Bad Boy Mower Part diagrams. These diagrams break down the components, making it simple to identify the parts that need replacing. Bad Boy Parts Online offers a wide selection of Bad Boy Lawn Mower Parts, including drive arms, pulleys, and more. By purchasing from BadBoyMowerParts.com, you can ensure you get quality parts that last. Plus, with Free Shipping On Orders Over $100, your order will be delivered to you without added costs. Get your 2020 Rebel Drive Arm - Detail today.

Bad Boy Mower Parts Lookup

2020 Rebel - Drive Arm - Detail
  Position Number SKU Product Title Price
114.0 031-0030-19 031-0030-19 - R Series Right Arm Rod Assembly (See Models Used On For Details)
$85.17
114.1 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
114.2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
114.3 018-0050-00 018-0050-00 - 1/2-13 X 3.25 Hex Bolt-
$2.99
114.4 018-0063-00 018-0063-00 - 3/8-16 X 1 Socket Set Screw Cup Point
$2.99
114.5 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
114.6 031-0014-00 031-0014-00 - Drive Arm Pivot 2019-2022 Rebel, Renegade & Rogue
$24.92
114.7 031-0030-00 031-0030-00 - Bad Boy Max Right Drive Arm Actuator (See Models Used On For Detail)
$46.78
115.0 031-0031-19 031-0031-19 - R Series Left Arm Rod Assembly, 2019-2023 Rebel/Renegade/Rogue
$85.17
115.7 031-0031-00 031-0031-00 - Left Drive Arm Actuator for Rebel, Renegade & Rogue
$46.78
118.0 031-9005-70 031-9005-70 - Left Hand Adjustable Steering Arm Kit 2019-2022 Rebel, Renegade & Rogue
$132.68
118.1 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
118.2 018-2020-18 018-2020-18 - 5/16-18 x 1 3/8" Button Head Torx Drive
$2.99
118.3 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
118.4 031-9005-00 031-9005-00 - Upper/Lower Steering Arm Casting 2019-2023 Rebel, Renegade & Rogue
$28.39
118.5 031-9006-00 031-9006-00 - Steering Arm Tube
$42.79
118.6 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
118.7 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
119.0 031-9055-70 031-9055-70 - Right Hand Adjustable Steering Arm Kit 2019-2022 Rebel, Renegade & Rogue
$115.31
126.0 035-0003-00 035-0003-00 - 2019 - 2022 Rebel Push Rod Assembly
$42.58
126.1 013-6050-00 013-6050-00 - 5/16 LH Nut For Push Rods
$4.39
126.2 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
126.3 035-0003-01 035-0003-01 - 2019-2023 Rebel Rigid Push Rod
$35.30
126.4 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
126.5 048-3002-00 048-3002-00 - Spherical Rod End - LH Thread (See Models Used On For Details)
$32.09
