2020 Rebel - Engine - Yamaha

2020 Rebel - Engine - Yamaha

For the 2020 Rebel Engine - Yamaha, you want to ensure that all engine components are in optimal working condition to avoid costly repairs. Bad Boy Mower Parts offers a wide selection of parts designed specifically for your Yamaha engine. Whether you need air filters, spark plugs, or carburetors, you can rely on Bad Boy Parts Online to get the right parts for your mower. Use the Bad Boy Mower Part diagrams to identify any worn-out or broken components. These parts are made to last, ensuring your 2020 Rebel Engine - Yamaha runs smoothly throughout the season. When you shop at BadBoyMowerParts.com, you can take advantage of Free Shipping On Orders Over $100, allowing you to save on your purchase. Visit BadBoyMowerParts.com today for all your Bad Boy Lawn Mower Parts and get your 2020 Rebel Engine - Yamaha back in action.

Bad Boy Mower Parts Lookup

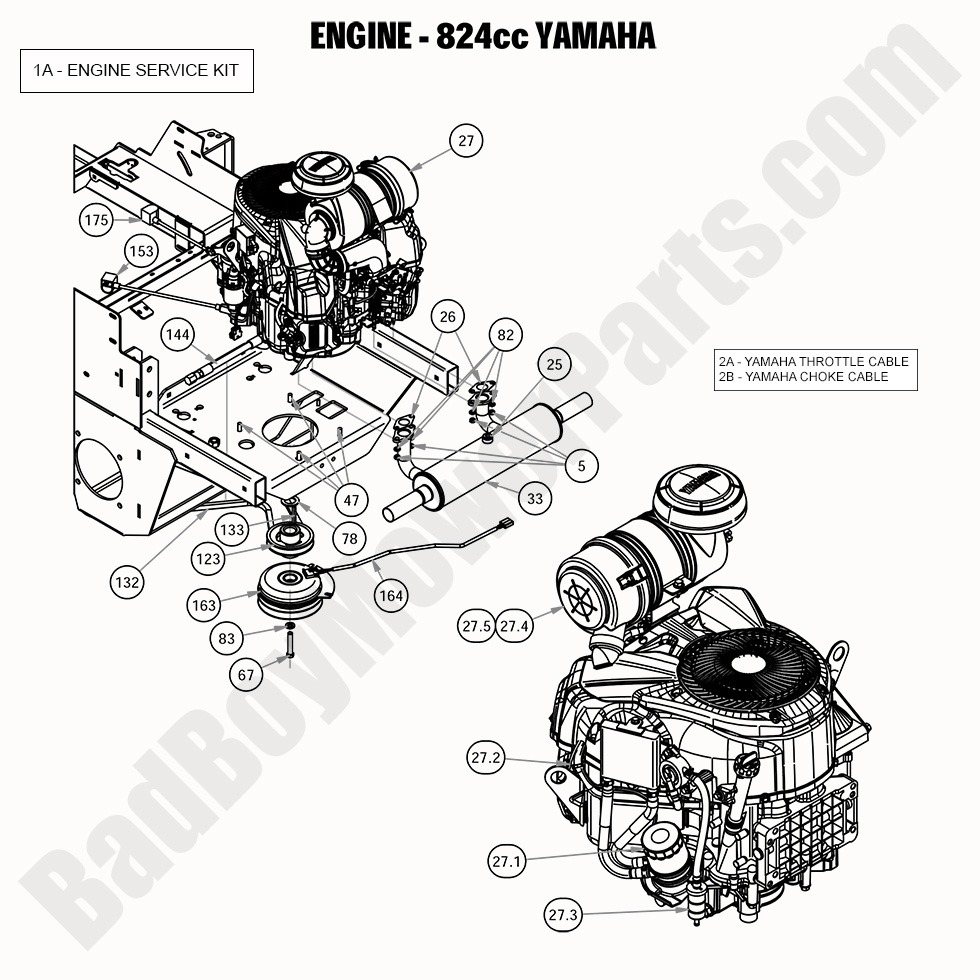

2020 Rebel - Engine - Yamaha
  Position Number SKU Product Title Price
1A 063-2000-11 063-2000-11 - Yamaha 824cc Engine Service Kit
$134.86
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
5 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
25 015-0050-01 015-0050-01 - O2 Bung Plug 12mm x 1.25
$9.89
26 015-0053-01 015-0053-01 - 2017-2022 Yamaha Exhaust Gasket
$8.01
27.0 015-0076-00 015-0076-00 - Yamaha Engine-27.5hp Carbureted
$3981.37
27.1 015-0053-02 015-0053-02 - 2017-2022 Yamaha Oil Filter
$34.23
27.2 015-0053-06 015-0053-06 - 2017-2022 Yamaha Spark Plug
$10.99
27.3 015-0053-21 015-0053-21 - Fuel Filter for Yamaha MX825VJ7X6
$10.99
27.4 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
27.5 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
33 015-1015-00 015-1015-00 - 2019 - 2022 Rebel/Rogue Yamaha 824 EFI/Carb Muffler Catalytic Combustion # 582984-MUF17
$108.90
47 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
67 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
78 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
82 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
83 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
123 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
132 041-8050-00 041-8050-00 - Pump Belt (See Models Used On For Detail)
$80.24
133 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
144 051-5403-00 051-5403-00 - Yamaha Oil Drain
$35.84
153 064-5301-01 064-5301-01 - 12" Red Battery Cable for Rebel/Rebel X
$12.94
163 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
164 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
175 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
