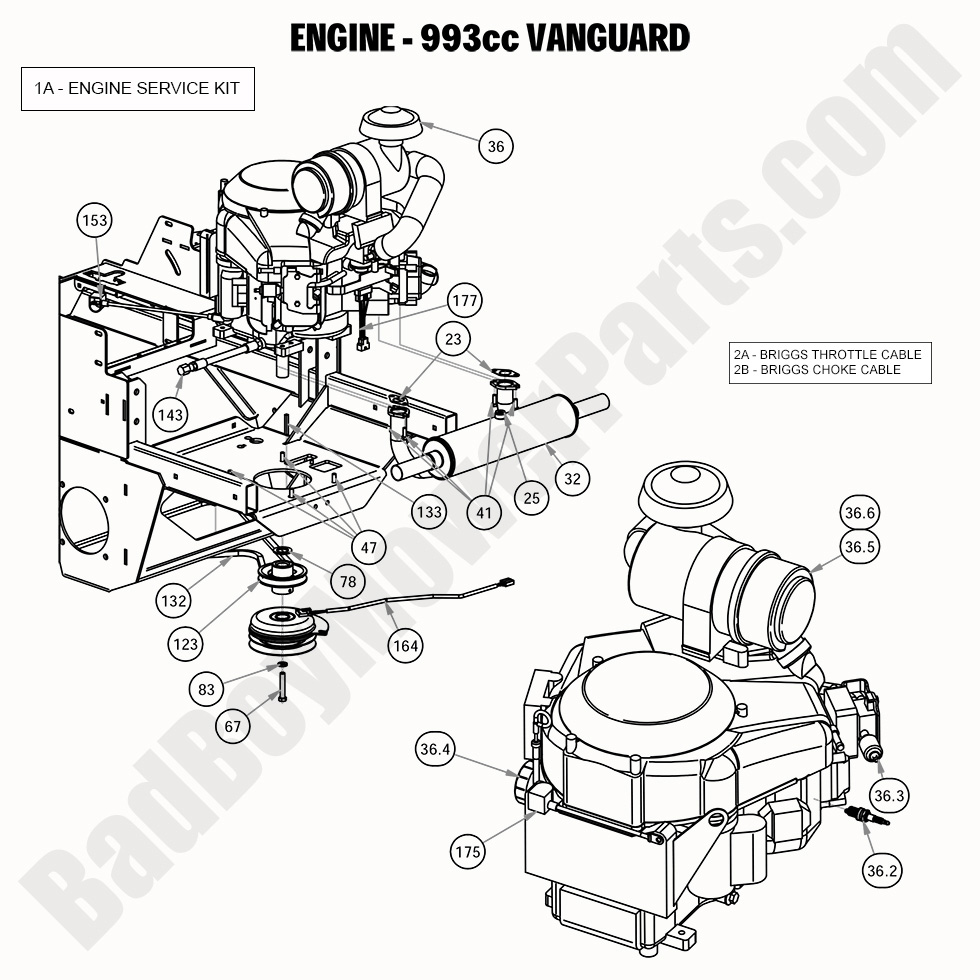

2020 Rebel - Engine - Vanguard

2020 Rebel - Engine - Vanguard

The 2020 Rebel Engine - Vanguard is known for its reliability and power, offering exceptional mowing capabilities. To maintain this engine's performance, it's important to use the correct Bad Boy Mower Parts. Whether you're replacing parts like fuel filters, oil pumps, or gaskets, you can find what you need with the Bad Boy Mower Part diagrams. These diagrams will help you locate and identify the parts that require attention for your 2020 Rebel Engine - Vanguard. You can easily order Bad Boy Lawn Mower Parts through Bad Boy Parts Online, ensuring that you get high-quality, authentic parts that fit your mower perfectly. Additionally, enjoy Free Shipping On Orders Over $100, making it easier and more affordable to keep your engine in top shape. Visit BadBoyMowerParts.com for all your engine maintenance needs, including parts for the 2020 Rebel Engine - Vanguard.

Bad Boy Mower Parts Lookup

2020 Rebel - Engine - Vanguard
  Position Number SKU Product Title Price
1A 063-2000-10 063-2000-10 - Briggs Vanguard 810/993/999cc (Non-EFI Models Only) Engine Service Kit
$127.15
2A 055-8022-00 055-8022-00 - Throttle Cable 35hp Kawasaki (NON-EFI) and 36 Vanguard Engines (NON-EFI) 2019-2025 Rebel & Rogue
$39.03
2B 054-8019-00 054-8019-00 - Choke Cable For 2019-2025 36HP Vanguard and FX1000 Engines
$26.54
23 015-0025-00 015-0025-00 - Exhaust Gasket for Vanguard (obsolete)
use part #015-2708-00
$16.04
25 015-0050-01 015-0050-01 - O2 Bung Plug 12mm x 1.25
$9.89
32 015-1014-00 015-1014-00 - Exhaust (See Models Used On For Details)
$199.00
36.0 015-3600-00 015-3600-00 - 36hp Briggs Vanguard Engine
$4379.44
36.2 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
36.3 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
36.4 063-8018-00 063-8018-00 - Oil Filter
$21.39
36.5 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
36.6 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
41 018-0017-00 018-0017-00 - Vanguard Exhaust Torx Bolt
$5.82
47 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
67 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
78 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
83 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
123 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
132 041-8050-00 041-8050-00 - Pump Belt (See Models Used On For Detail)
$80.24
133 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
143 051-5402-00 051-5402-00 - 14mm Oil Drain Hose-36hp Vanguard
$31.22
153 064-5301-01 064-5301-01 - 12" Red Battery Cable for Rebel/Rebel X
$12.94
164 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
175 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
177 086-9001-19 086-9001-19 - Harness Adaptor-36 Vanguard Carb 2019-2022 Rebel & Renegade Gas
$53.49
