2020 Rebel - Engine - Kawasaki FX1000

2020 Rebel - Engine - Kawasaki FX1000

The 2020 Rebel Engine - Kawasaki FX1000 is a powerful engine that drives your mower to deliver top-notch performance. To keep it running smoothly, you'll need to replace any worn or damaged parts with high-quality Bad Boy Mower Parts. For an accurate guide on which parts to replace, use the Bad Boy Mower Part diagrams, which will provide a clear breakdown of the engine components. Whether you're in need of a new spark plug, fuel filter, or oil filter, Bad Boy Parts Online has you covered with a wide selection of Bad Boy Lawn Mower Parts specifically designed for the 2020 Rebel Engine - Kawasaki FX1000. When you shop at BadBoyMowerParts.com, you can also enjoy Free Shipping On Orders Over $100, ensuring your repair is cost-effective and convenient. Shop today for all your engine needs and keep your 2020 Rebel Engine - Kawasaki FX1000 running like new.

Bad Boy Mower Parts Lookup

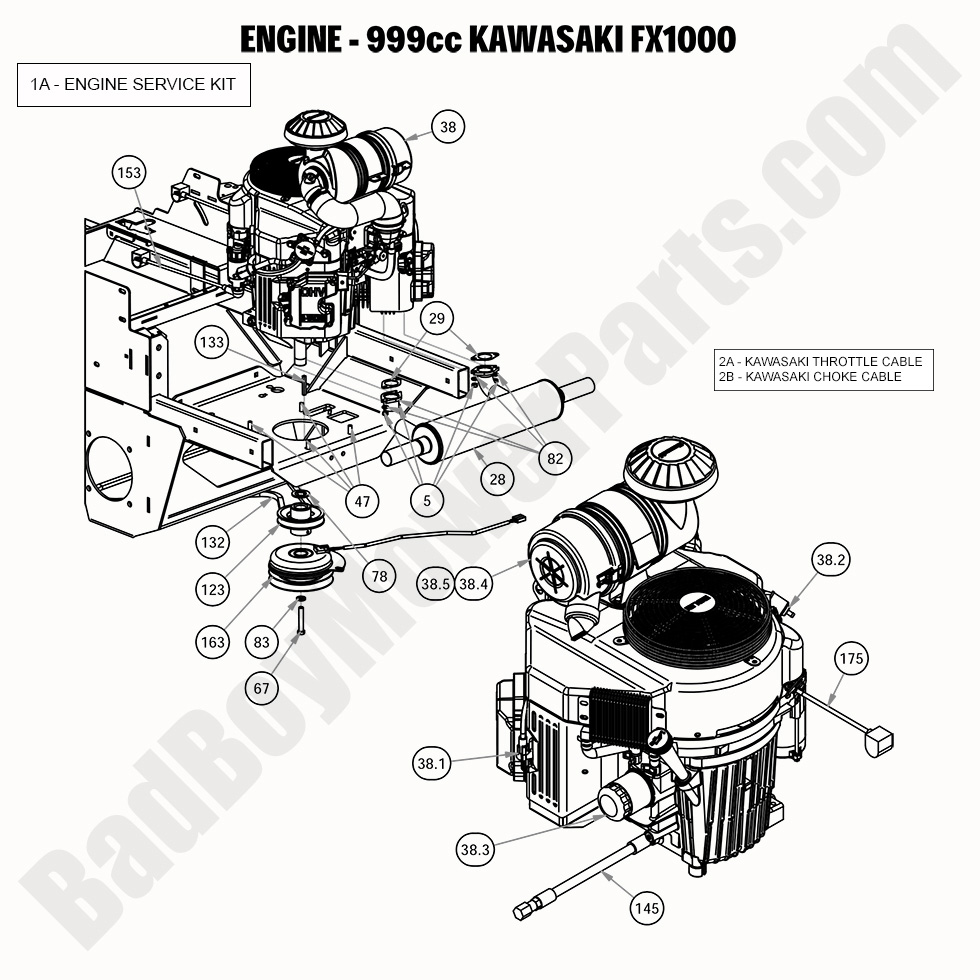

2020 Rebel - Engine - Kawasaki FX1000
  Position Number SKU Product Title Price
1A 063-2000-20 063-2000-20 - Kawasaki FX1000 Engine Service Kit
$123.99
2A 055-8022-00 055-8022-00 - Throttle Cable 35hp Kawasaki (NON-EFI) and 36 Vanguard Engines (NON-EFI) 2019-2025 Rebel & Rogue
$39.03
2B 054-8019-00 054-8019-00 - Choke Cable For 2019-2025 36HP Vanguard and FX1000 Engines
$26.54
5 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
28 015-1010-00 015-1010-00 - Muffler for Kawasaki FX1000V/EFI Engines (See Models Used On For Details)
$199.00
29 015-1010-01 015-1010-01 - Exhaust Gasket for FX1000V Kawasaki
$8.79
38.0 015-9911-00 015-9911-00 - 2019 - 2024 FX1000V Kawasaki Engine
$2799.99
38.1 515-0011-00 515-0011-00 Spark Plug for FX1000
$5.99
38.2 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
38.3 063-8017-00 063-8017-00 - Oil Filter for Kawasaki Fits FX850 and FX1000 and Liquid Cooled /31 KAW
$28.88
38.4 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
38.5 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
47 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
67 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
78 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
82 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
83 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
123 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
132 041-8050-00 041-8050-00 - Pump Belt (See Models Used On For Detail)
$80.24
133 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
145 051-5407-00 051-5407-00 - 12" Kawasaki Oil Drain FX850 / FX1000/ FX730
$42.58
153 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
163 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
175 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
