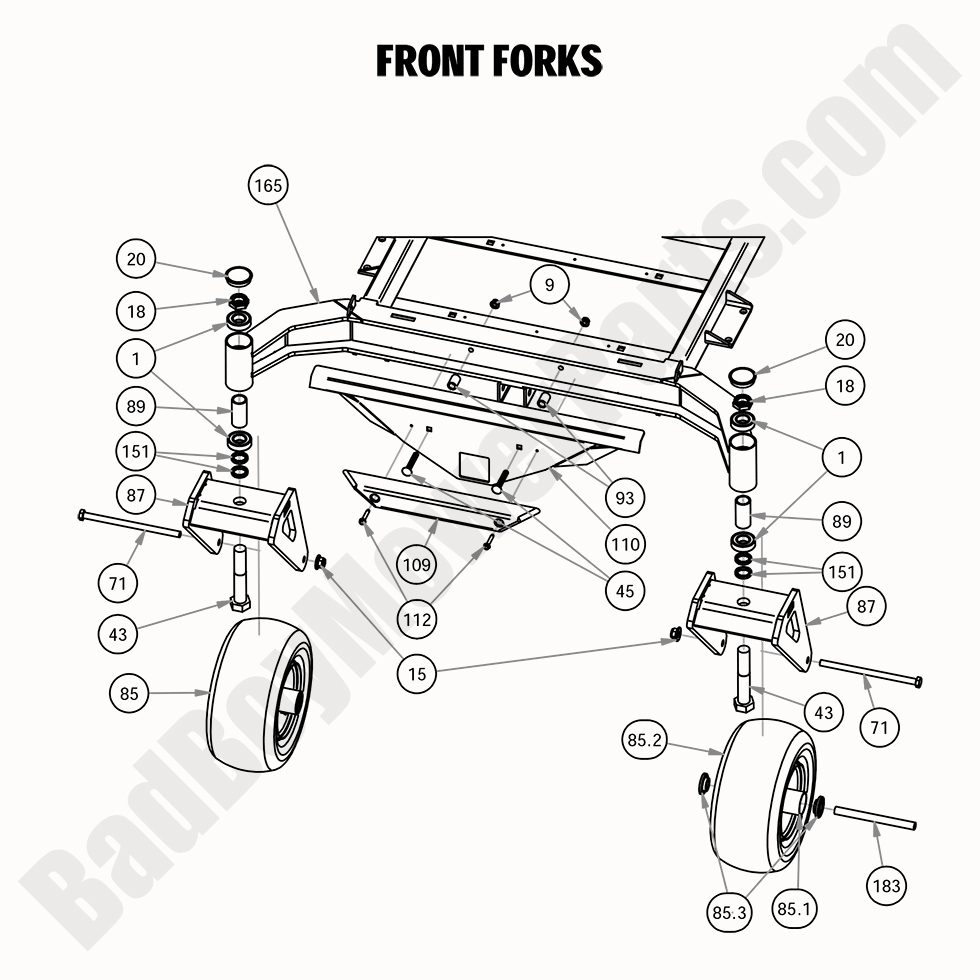

2020 Rebel - Front Forks

2020 Rebel - Front Forks

The 2020 Rebel Front Forks are essential components for ensuring the stability and smooth movement of your mower, particularly when navigating uneven terrain. Over time, these parts may become damaged or worn, affecting the handling of your mower. If you need replacements, look no further than Bad Boy Mower Parts for high-quality, durable components. The Bad Boy Mower Part diagrams can help you find the correct front forks and related parts for your 2020 Rebel model. Whether you're replacing just the forks or need additional components like bearings or bushings, Bad Boy Parts Online offers the convenience of ordering exactly what you need. All Bad Boy Lawn Mower Parts are designed to ensure a perfect fit, so you don’t have to worry about compatibility issues. Plus, enjoy Free Shipping On Orders Over $100, making it easier to get the parts you need without additional shipping costs. Visit BadBoyMowerParts.com for your 2020 Rebel Front Forks.

Bad Boy Mower Parts Lookup

2020 Rebel - Front Forks
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
15 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
18 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
20 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
43 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
45 018-0044-00 018-0044-00 - 3/8 x 2 1/2 Carriage Bolt
$2.99
71 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
85.0 022-3085-00 022-3085-00 - 13x6.50-6 LARGE BORE-Black Front Assembly
$112.99
85.1 022-3090-00 022-3090-00 - Black Front Rim Only (See Models Used For Detail) (obsolete)
use part #022-3085-00
$112.99
85.2 022-5347-00 022-5347-00 - 13 x 6.50 - 6 Tire
$96.29
85.3 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
87 023-0030-00 023-0030-00 - 2019-2021 Rebel Front Fork Weldment
$139.31
89 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
93 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$4.39
109 029-8000-00 029-8000-00 - Front Bumper (See Models Used On For Details)
$31.17
110 029-8019-00 029-8019-00 - Rigid Front Bumper Plate 2019-2022 Rebel
$53.49
112 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
151 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
165 070-5371-19 070-5371-19 - 2019 - 2021 Rigid Frame Welded Assembly
$1299.99
183 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
