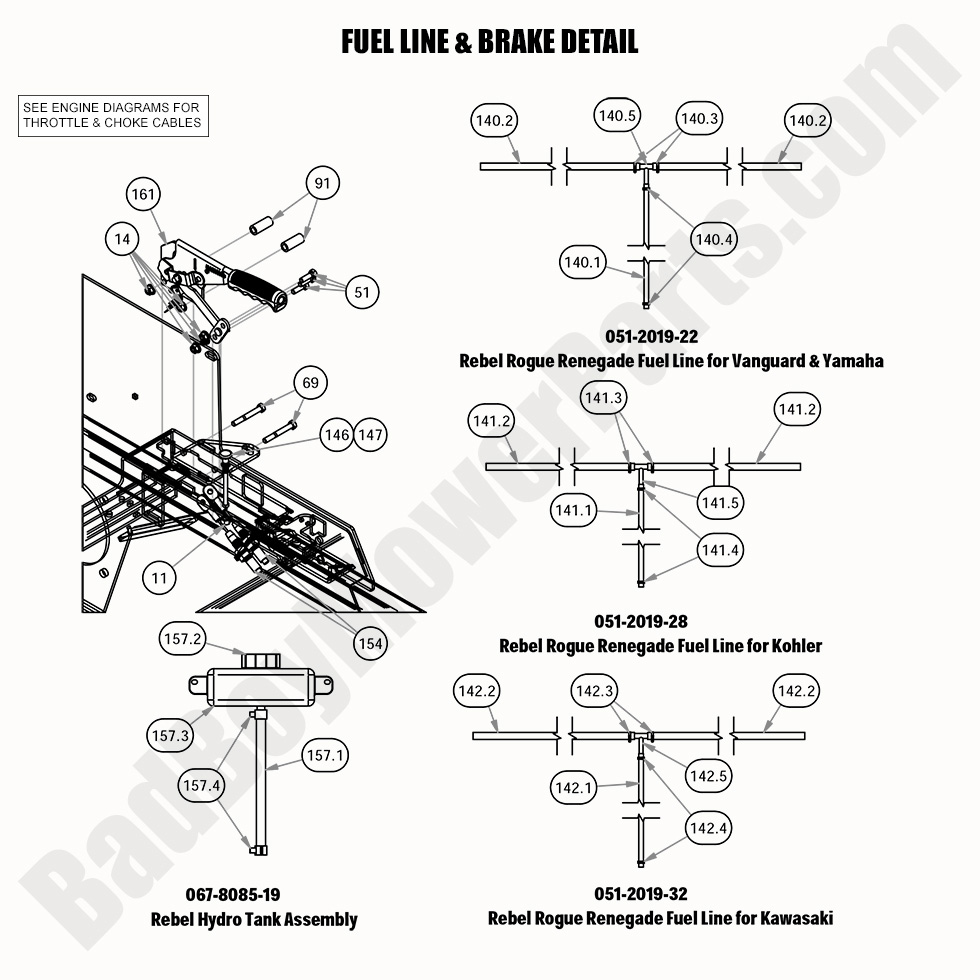

2020 Rebel - Fuel Line & Brake Detail

2020 Rebel - Fuel Line & Brake Detail

The 2020 Rebel Fuel Line & Brake Detail is an important area to focus on when performing regular maintenance or troubleshooting issues. A damaged fuel line can cause performance issues or fuel leakage, while brake problems can affect safety and overall operation. To replace worn or damaged parts, it’s crucial to choose the correct Bad Boy Mower Parts. The Bad Boy Mower Part diagrams provide an easy-to-follow guide for identifying the right components for your fuel line and brake system. Bad Boy Parts Online offers a wide selection of Bad Boy Lawn Mower Parts to ensure proper functionality and performance. Whether you're replacing hoses, fittings, or brake pads, you'll find the parts you need. Additionally, you can take advantage of Free Shipping On Orders Over $100, making it easier and more affordable to complete repairs. For all your fuel line and brake system needs, visit BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2020 Rebel - Fuel Line & Brake Detail
  Position Number SKU Product Title Price
11 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
14 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
51 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
69 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99

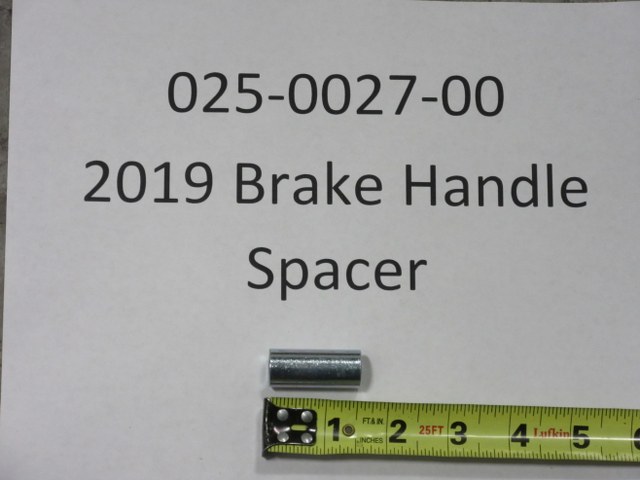

91 025-0027-00 025-0027-00 - Brake Handle Spacer.625 x 1.5 2019-2022 Rebel, Renegade & Rogue
$7.25
140.0 051-2019-22 051-2019-22 - Rebel Rogue Renegade Fuel Line for Vanguard and Yamaha Units
$44.93

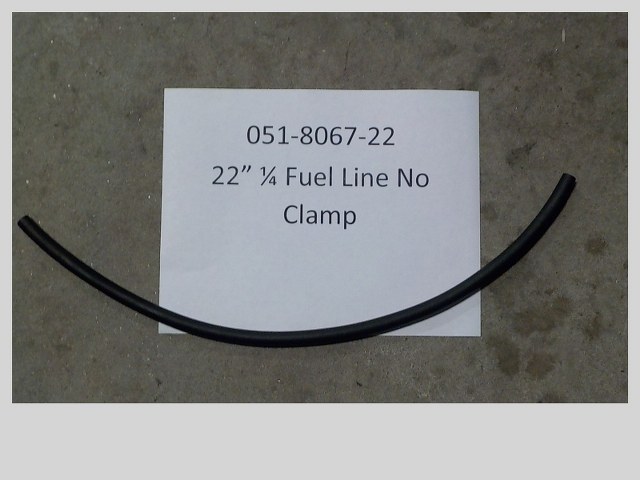

140.1 051-8067-22 051-8067-22 - 22" 1/4" Fuel Line No Clamp
$11.76
140.2 051-8075-26 051-8075-26 - 26" 5/16 Fuel Line No Clamps
$18.72
140.3 072-8068-00 072-8068-00 - 5/16 Fuel Line Clamp
$3.62
140.4 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
140.5 073-8069-00 073-8069-00 - 5/16 x 5/16 x 1/4 Fuel Line T
$9.77

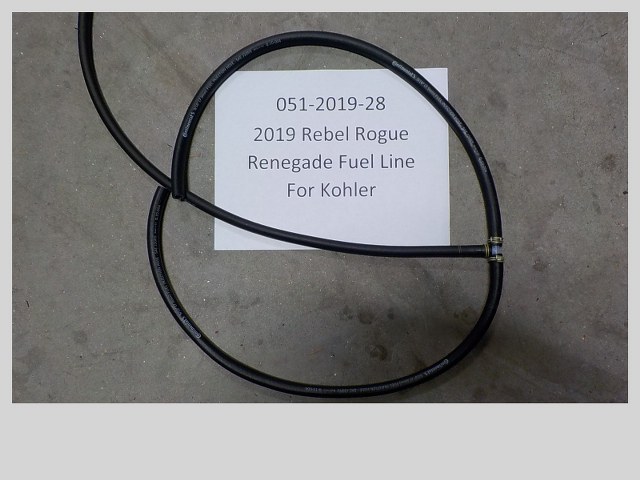

141.0 051-2019-28 051-2019-28 - Rebel Rogue Renegade Fuel Line for Kohler
$53.49
141.1 051-8067-28 051-8067-28 - 28" 1/4 Fuel Line No Clamp
$12.35
142.0 051-2019-32 051-2019-32 - Rebel Rogue Fuel Line for Kawasaki Units
$53.49
142.1 051-8067-32 051-8067-32 - 32" 1/4" Fuel Line No Clamps
$16.04

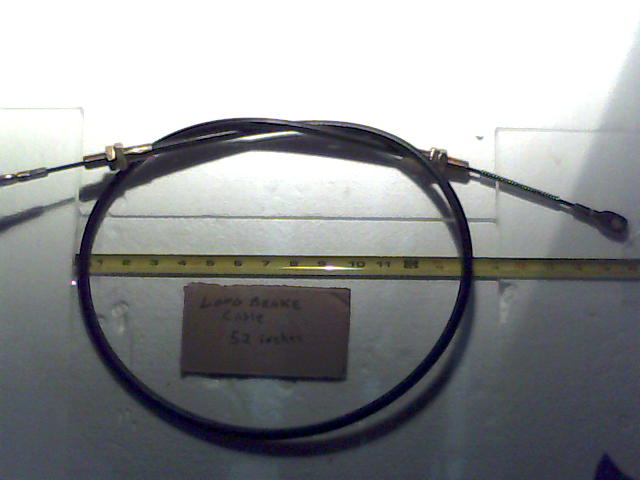

154 064-8056-00 064-8056-00 - Long Brake Cable
$53.49
157.0 067-8085-19 067-8085-19 - Hydro Tank Assembly-Rebel
$49.92
157.1 051-0019-00 051-0019-00 - 7.5" Hydro Tank Hose 2019-2022 Rebel
$11.34
157.2 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
157.3 067-8085-00 067-8085-00 - Expansion Tank for Outlaw (See Models Used On For Details)
$31.22
157.4 072-8074-00 072-8074-00 - 5/8" Wire Clamp - Outlaw & Rebel
$4.81

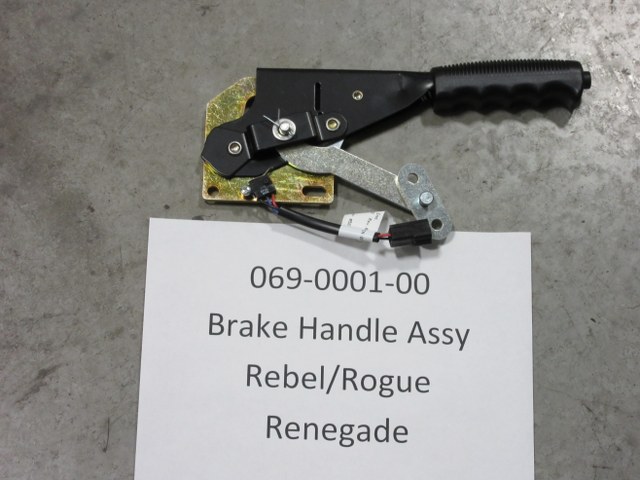

161 069-0001-00 069-0001-00 - Brake Handle Assembly (See Models Used On For Details)
$132.68
