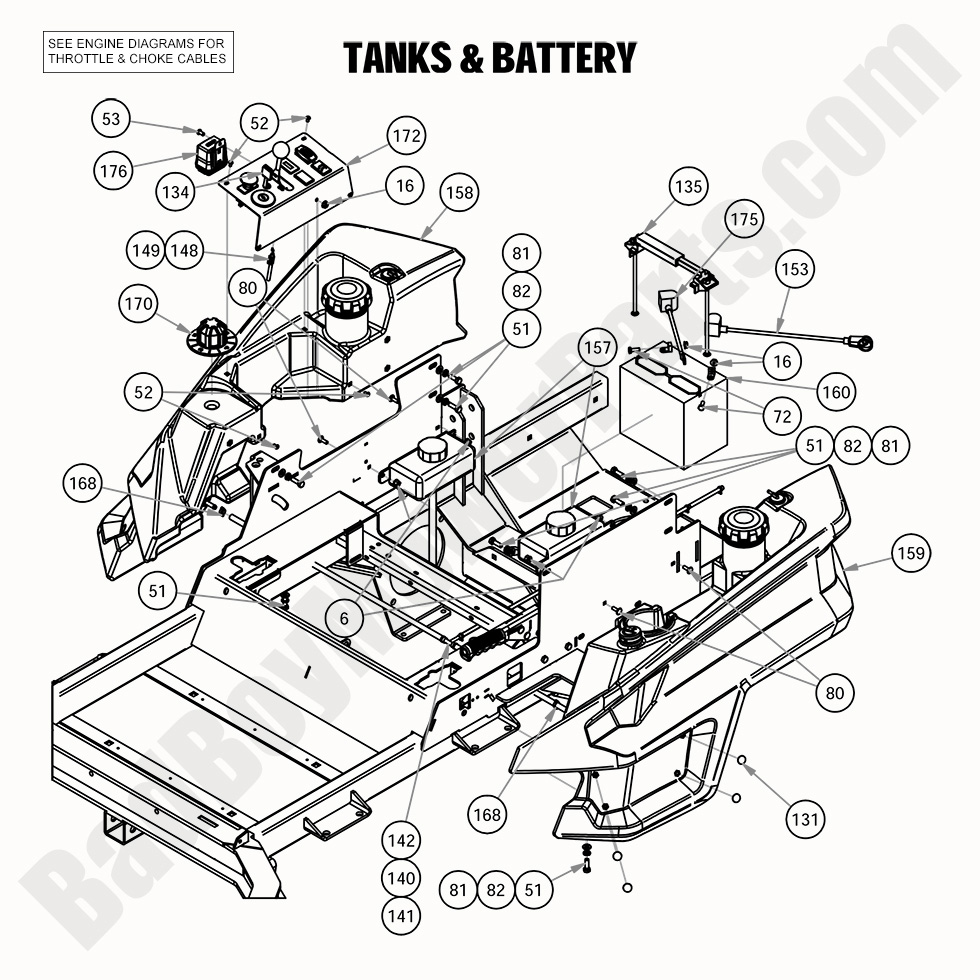

2020 Rebel - Tanks and Battery

2020 Rebel - Tanks and Battery

The 2020 Rebel Tanks and Battery are critical for powering your mower and storing fuel safely. A malfunctioning tank or battery can lead to operational delays or potential hazards, so it’s essential to replace them with high-quality Bad Boy Mower Parts. Use the Bad Boy Mower Part diagrams to help you identify the specific tanks and batteries for your 2020 Rebel. Whether you need a new fuel tank or a replacement battery, Bad Boy Parts Online offers a wide range of parts designed for perfect compatibility. These Bad Boy Lawn Mower Parts are durable and made to handle the rigors of outdoor use. You’ll also enjoy Free Shipping On Orders Over $100, making it more affordable to complete your mower’s repairs. Visit BadBoyMowerParts.com for all your 2020 Rebel Tanks and Battery needs and ensure your mower runs smoothly.

Bad Boy Mower Parts Lookup

2020 Rebel - Tanks and Battery
  Position Number SKU Product Title Price
6 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
16 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
51 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
52 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
53 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
72 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
80 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
81 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
82 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
131 040-6081-00 040-6081-00 - 3/16 x.48 Christmas Tree Nylon Black
$2.99
134 042-9000-00 042-9000-00 - Ignition Key
$4.06
135 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
140 051-2019-22 051-2019-22 - Rebel Rogue Renegade Fuel Line for Vanguard and Yamaha Units
$44.93
141 051-2019-28 051-2019-28 - Rebel Rogue Renegade Fuel Line for Kohler
$53.49
142 051-2019-32 051-2019-32 - Rebel Rogue Fuel Line for Kawasaki Units
$53.49
153 064-5301-01 064-5301-01 - 12" Red Battery Cable for Rebel/Rebel X
$12.94
157 067-8085-19 067-8085-19 - Hydro Tank Assembly-Rebel
$49.92
158 067-9950-50 067-9950-50 - Rebel/Rogue/Renegade Right Fuel Tank
$341.99
159 067-9960-50 067-9960-50 - Rebel/Rogue/Renegade Left Fuel Tank
$262.99
168 072-8076-00 072-8076-00 - 12.5mm/15mm OETIKER 2 Ear Clamp
$2.99
170 077-9002-00 077-9002-00 - Deck Dial 1.5 to 5.5 2019-2022 Rebel
$31.17
172 079-3481-19 079-3481-19 - Rebel/Rogue Control Panel Assy (See Models Used On for Detail)
$109.00
175 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
176 086-2050-19 086-2050-19 - Wiring Harness-No Display 2019-2025 Rebel & Rogue
$363.44
