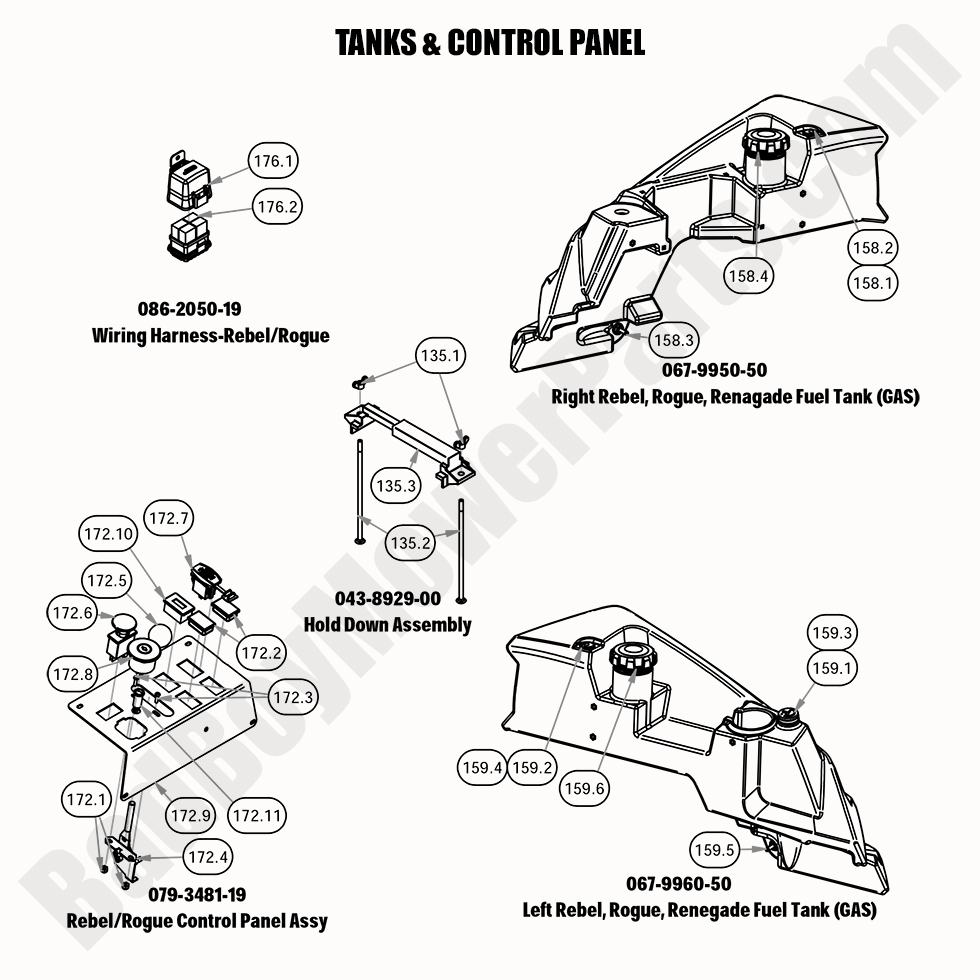

2020 Rebel - Tanks and Control Panel

2020 Rebel - Tanks and Control Panel

The 2020 Rebel Tanks and Control Panel are vital parts of your mower’s system, ensuring proper fuel storage and control over your mower’s settings. If either the fuel tanks or control panel become damaged or worn, it’s important to replace them promptly with genuine Bad Boy Mower Parts. Refer to the Bad Boy Mower Part diagrams for guidance on identifying the correct tanks and control panel for your 2020 Rebel. Bad Boy Parts Online offers a wide selection of Bad Boy Lawn Mower Parts to ensure you get the perfect fit for your mower. Whether it’s a new fuel tank or a replacement control panel, you can find what you need easily. Plus, when you shop at BadBoyMowerParts.com, you’ll enjoy Free Shipping On Orders Over $100, helping you save on delivery costs. Get your 2020 Rebel Tanks and Control Panel parts today and keep your mower in top condition.

Bad Boy Mower Parts Lookup

2020 Rebel - Tanks and Control Panel
  Position Number SKU Product Title Price
135.0 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
135.1 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
135.2 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
158.0 067-9950-50 067-9950-50 - Rebel/Rogue/Renegade Right Fuel Tank
$341.99
158.2 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
158.3 067-9901-00 067-9901-00 - Bulkhead Fitting for Fuel Tanks 2019-2025 Rebel, Renegade & Rogue
$22.71
158.4 067-9904-00 067-9904-00 - Fuel Cap for Fuel Tank 2019-2025 Rebel, Renegade Gas & Rogue
$28.39
159.0 067-9960-50 067-9960-50 - Rebel/Rogue/Renegade Left Fuel Tank
$262.99
159.1 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
159.3 067-6056-00 067-6056-00 - Fuel Gauge Grommet (See Models Used On For Detail)
$7.14
172.0 079-3481-19 079-3481-19 - Rebel/Rogue Control Panel Assy (See Models Used On for Detail)
$109.00
172.1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
172.2 018-1040-00 018-1040-00 - Light Plug
$2.99
172.3 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
172.4 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
172.5 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
172.6 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
172.7 077-2076-00 077-2076-00 - USB Port
$46.84
172.8 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
172.9 079-3481-00 079-3481-00 - Control Panel
$10.99
172.10 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
172.11 089-1000-00 089-1000-00 - Oil Light
$12.63
176.0 086-2050-19 086-2050-19 - Wiring Harness-No Display 2019-2025 Rebel & Rogue
$363.44
176.1 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
176.2 086-1202-19 086-1202-19 - Relay Terminal
$24.97
