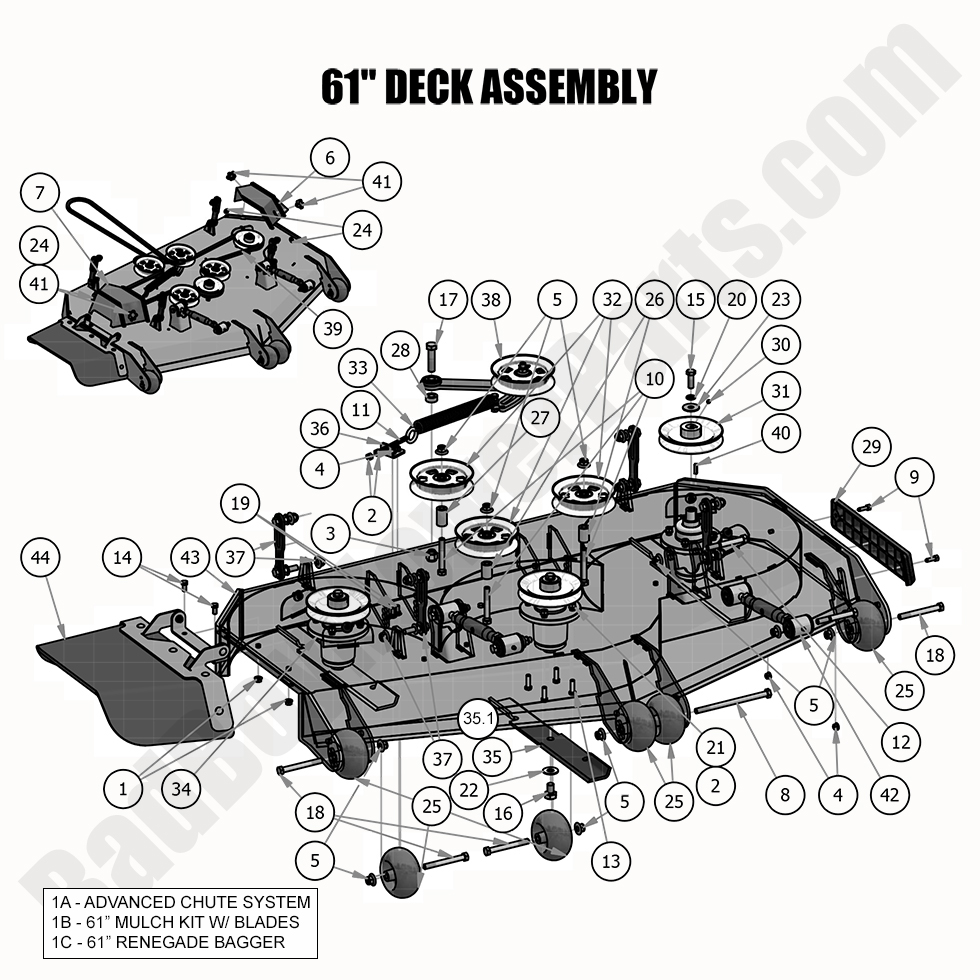

2020 Renegade - Diesel - 61" Deck Assembly

2020 Renegade - Diesel - 61" Deck Assembly

The 2020 Renegade - Diesel 61" Deck Assembly is built for superior cutting performance and durability. Whether you're replacing worn-out components or upgrading your mower, using genuine Bad Boy Mower Parts ensures a long-lasting, high-quality cut. At BadBoyMowerParts.com, we provide everything from deck belts and spindles to blades and pulleys, keeping your 2020 Renegade - Diesel performing at its best. If you're unsure about part compatibility, our Bad Boy Mower Part diagrams make it easy to identify the correct deck assembly components. Ordering through Bad Boy Parts Online is simple, ensuring you receive the exact parts you need without delays. Plus, with Free Shipping On Orders Over $100, you can save on shipping while getting the best replacement parts available. Keep your mower’s 61" deck assembly in peak condition with our premium selection of Bad Boy Lawn Mower Parts, designed for lasting performance.

Bad Boy Mower Parts Lookup

2020 Renegade - Diesel - 61" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0361-00 210-0361-00 - Revolt/Rebel/Rogue/Renegade 61" Mulch Kit w/Blades
$318.45
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
3 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 014-5052-00 014-5052-00 - 61" Left Deck Pulley Cover - Rebel, Renegade & Rogue
$17.86
7 014-5053-00 014-5053-00 - 61" Right Deck Pulley Cover 2019-& Up Rebel, Renegade & Rogue
$17.86
8 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
9 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
10 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
11 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
12 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
13 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
14 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
15 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
16 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
17 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
18 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
19 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
20 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
21 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
22 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
23 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
24 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
25 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
26 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
27 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
28 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
29 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
30 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
31 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
32 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
33 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
34 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
35.1 038-6081-00 038-6081-00 - 61" Gator Blade for Outlaw
$22.99
35 038-6080-00 038-6080-00 - 61" High Lift Fusion Blade
$22.99
36 039-0144-00 039-0144-00 - Deck Eye Bolt Tab For Rebel/Renegade/Rogue (See Models Used On For Details)
$14.19
37 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
38 039-6946-17 039-6946-17 - 2019-2025 Renegade Deck Idler Assembly
$78.08
39 041-0222-00 041-0222-00 - B222 Deck Belt for 60" 28hp/1100cc Diesels (Not AOS Diesels) & 61" Renegade Gas/Diesel
$122.06
40 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
41 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
42 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
43 060-6151-19 060-6151-19 - 61" Sloped Deck Shell 2019-Newer Rebel, Renegade & Rogue
$1461.53
44 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
