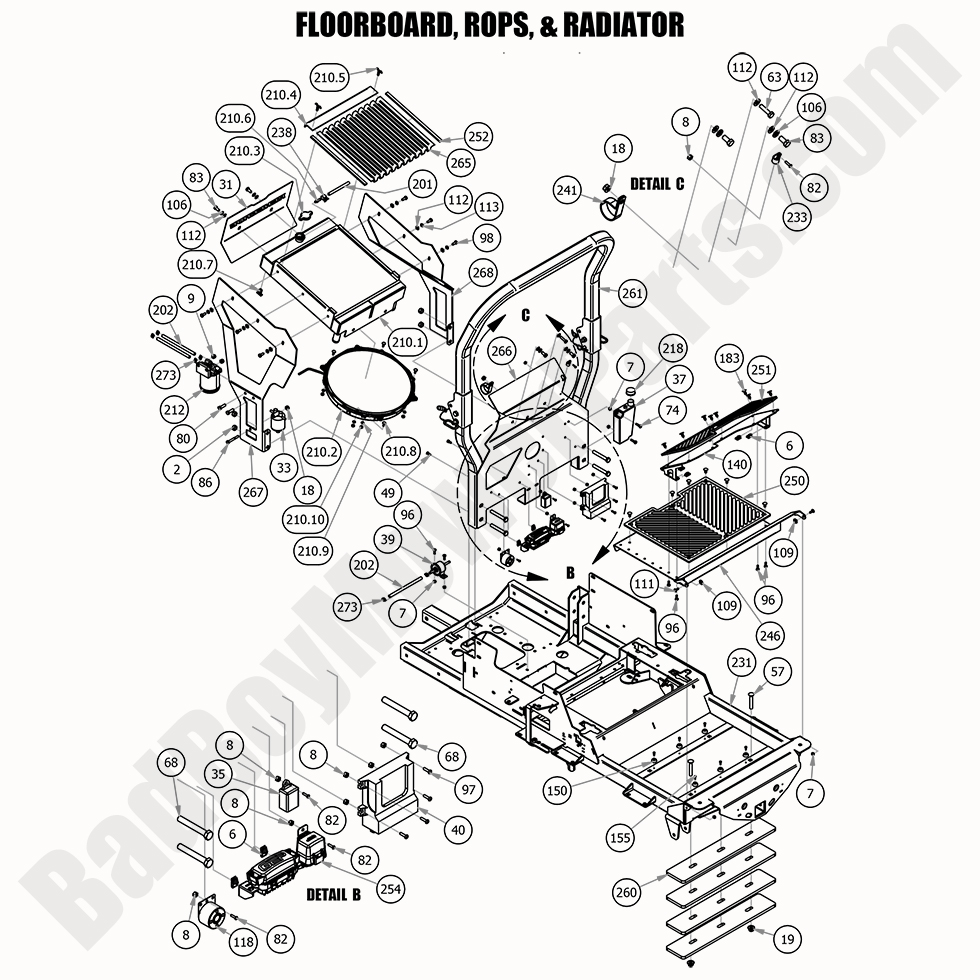

2020 Renegade - Diesel - Floorboard, ROPS & Radiator

2020 Renegade - Diesel - Floorboard, ROPS & Radiator

The 2020 Renegade - Diesel Floorboard, ROPS & Radiator are essential structural and cooling components that keep your mower safe and efficient. The ROPS (Roll-Over Protection System) enhances operator safety, while the radiator ensures the diesel engine remains cool during extended use. Keeping these parts in top condition requires high-quality Bad Boy Mower Parts that fit perfectly. At BadBoyMowerParts.com, we stock a full selection of Bad Boy Lawn Mower Parts, including floorboards, ROPS, and radiator components. If you're unsure which part you need, our Bad Boy Mower Part diagrams simplify identification and installation. Ordering through Bad Boy Parts Online guarantees factory-approved replacements that maintain durability and safety. Plus, take advantage of Free Shipping On Orders Over $100, making repairs more cost-effective. Keep your 2020 Renegade - Diesel running smoothly with our reliable, high-performance replacement parts.

Bad Boy Mower Parts Lookup

2020 Renegade - Diesel - Floorboard, ROPS & Radiator
  Position Number SKU Product Title Price
2 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
6 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
7 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
8 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
9 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
18 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
19 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
31 014-5065-00 014-5065-00 - Upper Rear Cover 2019-2021 Renegade Diesel
$21.39
33 015-0007-00 015-0007-00 - Caterpillar Fuel Bowl Kit
$150.99
35 015-0015-00 015-0015-00 - Auto Shut Down for Cat Diesels
$699.99
37 015-0111-00 015-0111-00 - Overflow Reservoir-27 Kaw
$74.89
39 015-4000-00 015-4000-00 - Fuel Pump for 1100cc Diesel
$331.72
49 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
57 018-0067-00 018-0067-00 - 1/2-13 x 3 Carriage Bolt
$3.29
63 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
68 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
74 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
80 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
82 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
83 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
86 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
96 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
97 018-8058-00 018-8058-00 - 10-24 X 1 BS C/S 18-8 SS
$2.99
98 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
106 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
109 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
111 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
112 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
113 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
118 021-8059-00 021-8059-00 - Heat Warning Piezo Buzzer
$36.37
140 026-2230-00 026-2230-00 - Adjustable Foot Plate 2019-2022 Rebel, Renegade & Rogue
$70.97
150 029-4010-00 029-4010-00 - Button Bumper
$2.99
155 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
183 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
201 051-8069-00 051-8069-00 - 5/16 Clear Hose (Priced Per Foot)
$2.99
202 051-8075-00 051-8075-00 - 5/16 Fuel Line Hose Priced per Foot
$7.69
210.0 061-5001-98 061-5001-98 - 2019 Diesel Radiator Kit No Longer Available
Obsolete.
210.1 061-5001-00 061-5001-00 - 2019 Diesel Radiator
$1399.99
210.2 014-3005-00 014-3005-00 - Electric Fan for Radiator (See Models Used On For Details)
$729.99
210.3 015-0104-00 015-0104-00 - CAT Diesel Radiator Cap
$31.22
210.4 026-2008-00 026-2008-00 - Screen Retention Plate for 2019 Diesel Radiator Ki
$26.74
210.5 030-0090-00 030-0090-00 - 1/4-20 x 3/4 Thumb Screw
$7.36
210.6 024-0015-00 024-0015-00 - 1/4 Barb to 3/16 NPT Overflow Fitting fits the 2019-2024 Renegade Diesel Radiator
$16.04
210.7 015-0098-00 015-0098-00 - 1/4 NPT Drain Plug for the Radiator 2019-2025 Renegade Diesel
$8.79
210.9 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
210.10 013-8039-00 013-8039-00 - 1/4-20 Hex Nut
$2.99
212 063-2011-00 063-2011-00 - CAT Fuel Filter - Big
$29.95
218 066-8075-00 066-8075-00 - Reservoir Tank Cap-Overflow Tank
$6.48
231 070-5374-19 070-5374-19 - Horizontal Diesel Renegade Frame
$1299.99
233 072-0001-00 072-0001-00 - 3/8 Cable Clamp-Black Nylon
$5.49
238 072-8067-00 072-8067-00 - 5/8 Hose Clamp SS
$2.99
241 072-8090-00 072-8090-00 - Diesel Clamp - 1 3/4 Vinyl
$3.63
246 079-3155-00 079-3155-00 - Floorboard (See Models Used On For Detail)
$109.99
250 081-0050-00 081-0050-00 - Floor Mat 2019-2022 Rebel, Renegade & Rogue
$78.10
251 081-0051-00 081-0051-00 - Foot Plate Mat 2019-2024 Rebel, Renegade & Rogue
$78.10
252 084-4015-00 084-4015-00 - Rubber Trim
$10.99
254 086-0247-19 086-0247-19 - 2019-2021 24.7 Renegade Diesel Harness
$509.41
260 088-1999-00 088-1999-00 - Outlaw Counter Weight (See Models Used On For Details)
$74.99
261 089-0006-00 089-0006-00 - 2019-2024 2x2 R SERIES Outlaw Folding Rops Femco # SIP3980
$836.43
265 094-5088-00 094-5088-00 - Radiator Screen Diesel
$129.99
266 201-8025-00 201-8025-00 - 2019 Diesel Radiator Mount-Front
$42.79
267 201-8026-00 201-8026-00 - 2019 Diesel Radiator Mount-Right
$42.79
268 201-8027-00 201-8027-00 - 2019 Diesel Radiator Mount-Left
$43.86
273 072-8076-00 072-8076-00 - 12.5mm/15mm OETIKER 2 Ear Clamp
$2.99
