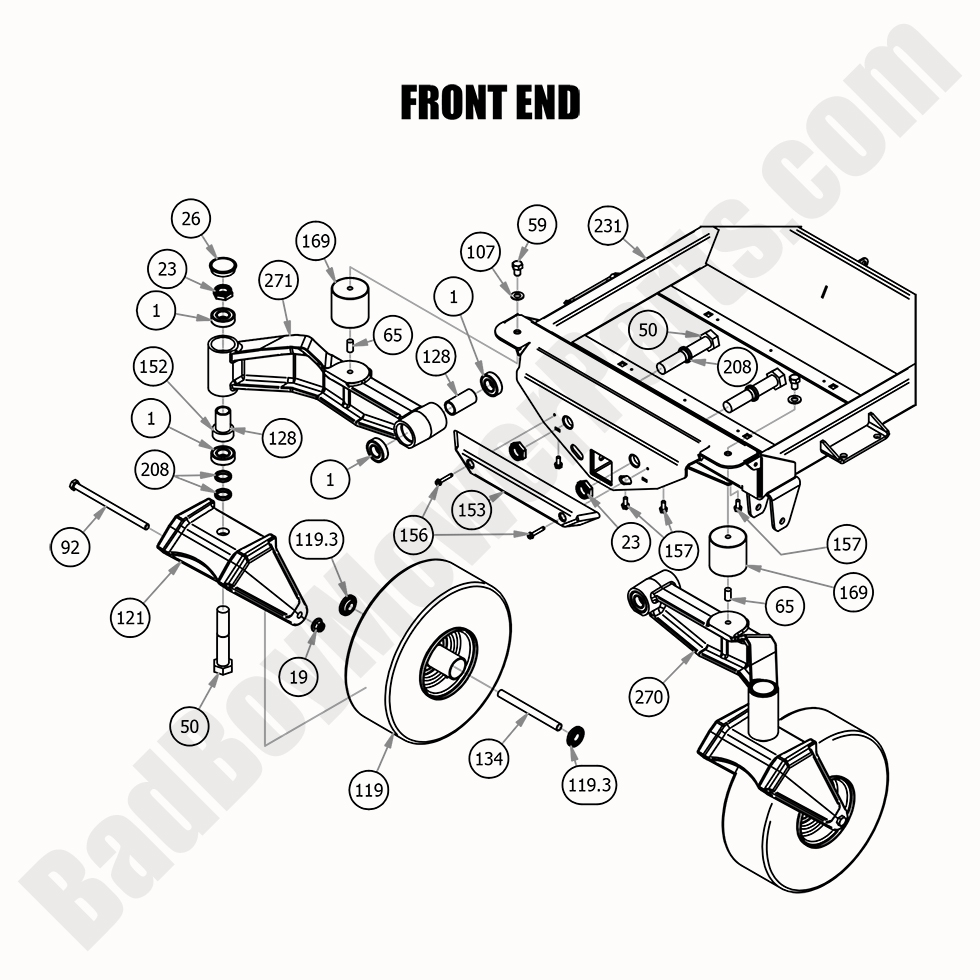

2020 Renegade - Diesel - Front End

2020 Renegade - Diesel - Front End

The 2020 Renegade - Diesel Front End is built for strength and stability, supporting the mower’s maneuverability and durability. Whether you need to replace worn-out bushings, spindles, or caster wheels, using genuine Bad Boy Mower Parts ensures long-lasting performance. At BadBoyMowerParts.com, we provide a comprehensive selection of Bad Boy Lawn Mower Parts, including everything necessary to maintain the 2020 Renegade - Diesel front end. Our Bad Boy Mower Part diagrams help you locate the exact components required, making repairs quick and hassle-free. Shopping through Bad Boy Parts Online ensures that you receive factory-grade parts tailored to your model. Plus, we offer Free Shipping On Orders Over $100, allowing you to save on essential front-end repairs. Keep your mower in top condition by investing in high-quality replacement parts designed for durability and performance, ensuring a smooth and reliable mowing experience.

Bad Boy Mower Parts Lookup

2020 Renegade - Diesel - Front End
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
19 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
23 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
26 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
50 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
59 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
65 018-2009-00 018-2009-00 - 1/2-13 x 1" Stud
$5.82
92 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
107 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
119.0 022-0003-00 022-0003-00 - 15x6.00-6 No-Flat Black Front Assembly
$159.99
119.3 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
121 023-0004-00 023-0004-00 - 2019-2020 Renegade & Rogue Front Fork
$169.99
128 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
134 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
152 029-7050-00 029-7050-00 - Rubber Stabilizer (Front Fork)
$8.74
153 029-8000-00 029-8000-00 - Front Bumper (See Models Used On For Details)
$31.17
156 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
157 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
169 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
208 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
222.0 067-9990-50 067-9990-50 - Left Outlaw Renegade Diesel Fuel Tank
$259.99
223.0 067-9995-50 067-9995-50 - Right Outlaw Renegade Diesel Fuel Tank
$261.99
231 070-5374-19 070-5374-19 - Horizontal Diesel Renegade Frame
$1299.99
270 250-0032-00 250-0032-00 - Left Front I-Beam 2019-2021 Renegade & Rogue
$248.99
271 250-0033-00 250-0033-00 - Right Front I-Beam 2019-2021 Renegade & Rogue
$320.99
