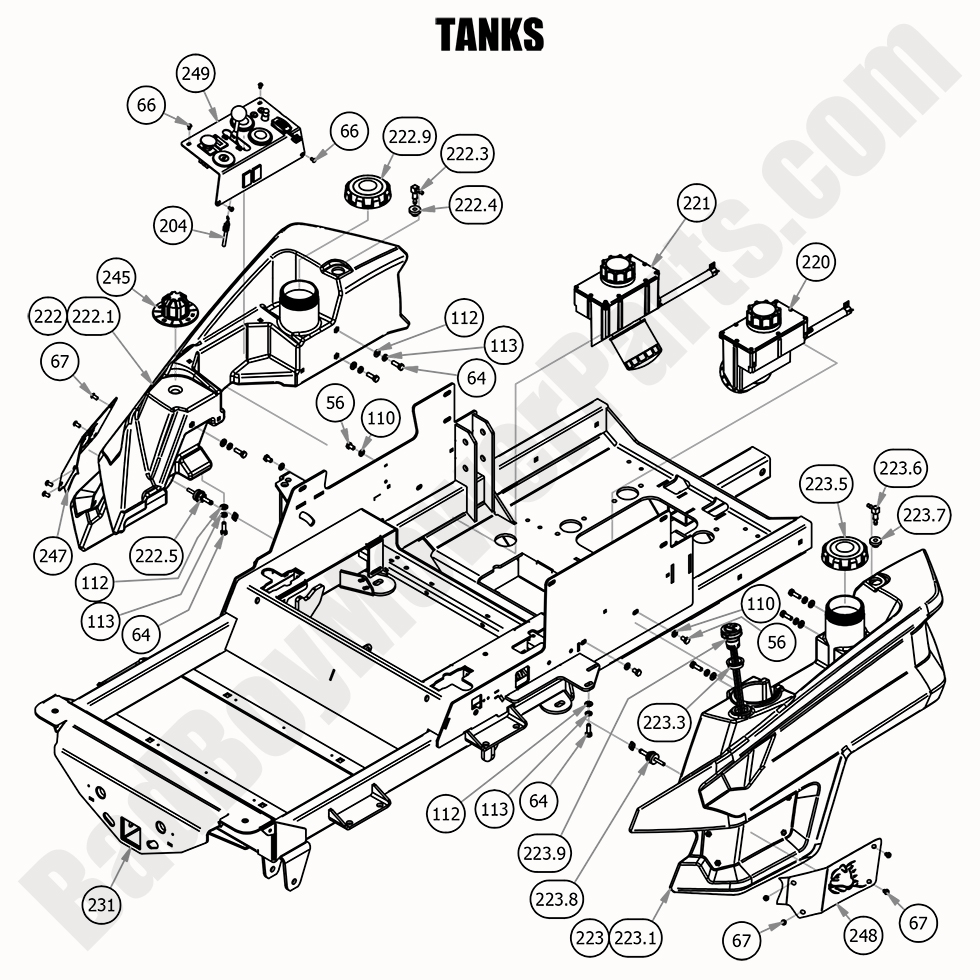

2020 Renegade - Diesel - Fuel Tanks

2020 Renegade - Diesel - Fuel Tanks

The 2020 Renegade - Diesel Fuel Tanks are designed for long mowing sessions, providing the capacity and durability needed for extended use. Over time, fuel tanks may develop cracks, leaks, or clogs, requiring high-quality replacements to maintain optimal performance. At BadBoyMowerParts.com, we offer a full selection of Bad Boy Mower Parts, including OEM fuel tanks, fuel caps, and fuel lines to keep your mower running efficiently. Our Bad Boy Mower Part diagrams make it easy to find the correct fuel tank components for your 2020 Renegade - Diesel, ensuring a perfect fit. Ordering through Bad Boy Parts Online is simple, providing access to factory-approved parts that deliver long-lasting durability. Plus, take advantage of Free Shipping On Orders Over $100, saving money while keeping your mower fueled and ready for action. Trust our selection of Bad Boy Lawn Mower Parts to maintain your mower’s fuel system.

Bad Boy Mower Parts Lookup

2020 Renegade - Diesel - Fuel Tanks
  Position Number SKU Product Title Price
56 018-0057-00 018-0057-00 - 5/16-18 x 1/2 Hex Bolt-
$2.99
64 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
66 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
67 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
110 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
112 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
113 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
220 067-8053-18 067-8053-18 - LH Renegade Hydro Tank Assy
$201.96
221 067-8054-18 067-8054-18 - RH Renegade Hydro Tank Assy
$201.96
222.1 067-9990-50 067-9990-50 - Left Outlaw Renegade Diesel Fuel Tank
$259.99
222.3 024-9903-00 024-9903-00 - 90 Degree Elbow Fitting for 2019-2024 Renegade Diesel Fuel Tank
$8.79
222.4 032-9902-00 032-9902-00 - Nitrile Bushing for 2019-2024 Renegade Diesel Fuel Tank
$4.39
222.5 067-9901-00 067-9901-00 - Bulkhead Fitting for Fuel Tanks 2019-2025 Rebel, Renegade & Rogue
$22.71
222.9 067-9905-00 067-9905-00 - Diesel Fuel Tank Cap for 2019 - 2024 Fuel Tank
$32.09
223.1 067-9995-50 067-9995-50 - Right Outlaw Renegade Diesel Fuel Tank
$261.99
223.9 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
231 070-5374-19 070-5374-19 - Horizontal Diesel Renegade Frame
$1299.99
245 077-9001-00 077-9001-00 - Deck Height Dial Knob 2 to 6 2019-2022 Renegade & Rogue
$21.39
247 079-3290-00 079-3290-00 - Right Fuel Tank Insert 2019-& Up Rebel, Renegade, & Rogue
$8.79
248 079-3291-00 079-3291-00 - Renegade/Rogue/Rebel Left Fuel Tank Insert
$8.79
249 079-3480-19 079-3480-19 - Renegade Diesel Control Panel Assy
$119.00
