2020 Renegade - Diesel - Rear Cover & Hydraulic Cooler

2020 Renegade - Diesel - Rear Cover & Hydraulic Cooler

The 2020 Renegade - Diesel Rear Cover & Hydraulic Cooler play a crucial role in protecting key components and ensuring proper cooling for the hydraulic system. A damaged rear cover can expose sensitive parts to debris, while a failing hydraulic cooler can lead to overheating and reduced mower efficiency. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts to replace worn-out covers and hydraulic cooling components. Our Bad Boy Mower Part diagrams make it easy to find the exact replacement needed for your 2020 Renegade - Diesel, ensuring hassle-free repairs. Shopping through Bad Boy Parts Online guarantees you receive durable, factory-approved parts built for reliability. Plus, enjoy Free Shipping On Orders Over $100, saving on essential maintenance. Protect your mower’s rear components and maintain proper hydraulic cooling with our premium selection of Bad Boy Lawn Mower Parts, designed for lasting performance.

Bad Boy Mower Parts Lookup

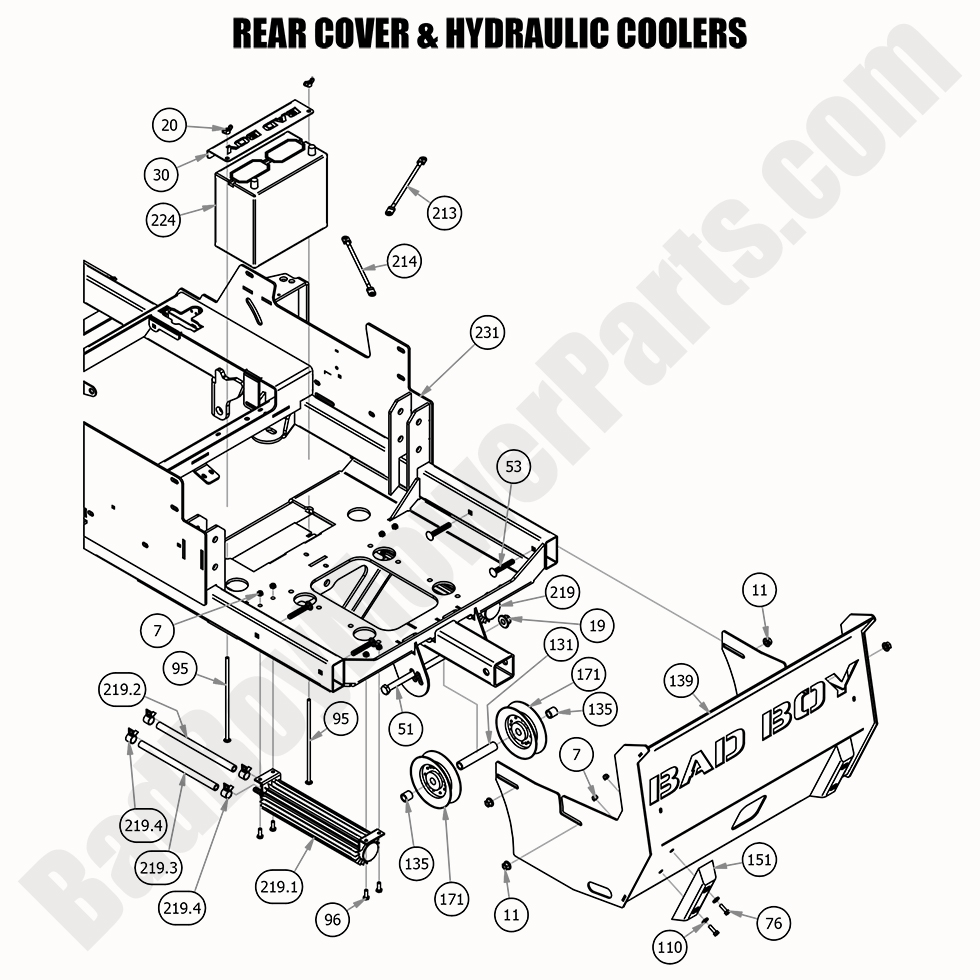

2020 Renegade - Diesel - Rear Cover & Hydraulic Cooler
  Position Number SKU Product Title Price
7 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
19 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
20 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
30 014-5063-00 014-5063-00 - Battery Hold Down Cover 2019-2025 Renegade
$10.99
51 018-0040-00 018-0040-00 - 1/2-13 x 8 1/2 Gr5 Hex Bolt
$7.18
53 018-0044-00 018-0044-00 - 3/8 x 2 1/2 Carriage Bolt
$2.99
76 018-4702-00 018-4702-00 - 1/4-20 X 1-1/4 Hex Bolt
$2.99
95 018-8051-00 018-8051-00 - 1/4-20 X 9 Carriage Bolts Zinc
$2.99
96 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
110 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
131 025-0028-00 025-0028-00 - Pulley Spacer.75 x 4.375 x.5 ID 2019-2022 Renegade
$9.61
135 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
139 026-2224-00 026-2224-00 - Rear Side Cover 2019-2022 Renegade
$199.99
151 029-7038-00 029-7038-00 - 8 Bumper
$28.32
171 033-7027-00 033-7027-00 - Horizontal Rear V Pulley
$46.84
213 064-4000-00 064-4000-00 - Red Battery Cable (See Models Used On For Details)
$23.53
214 064-4001-00 064-4001-00 - Black Battery Cable (See Models Used On For Details)
$22.31
219.0 067-8052-19 067-8052-19 - Renegade Oil Cooler-Assy
$70.97
219.1 067-8052-00 067-8052-00 - 2019-2022 12" Oil Cooler With Fittings (See Models Used On For Details)
$62.46
219.2 051-8063-14 051-8063-14 - 14" 3/8 Clear Hose No Clamp
$6.04
219.3 051-8063-24 051-8063-24 - 24" 3/8 Clear Hose No Clamps
$12.48
219.4 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
231 070-5374-19 070-5374-19 - Horizontal Diesel Renegade Frame
$1299.99
