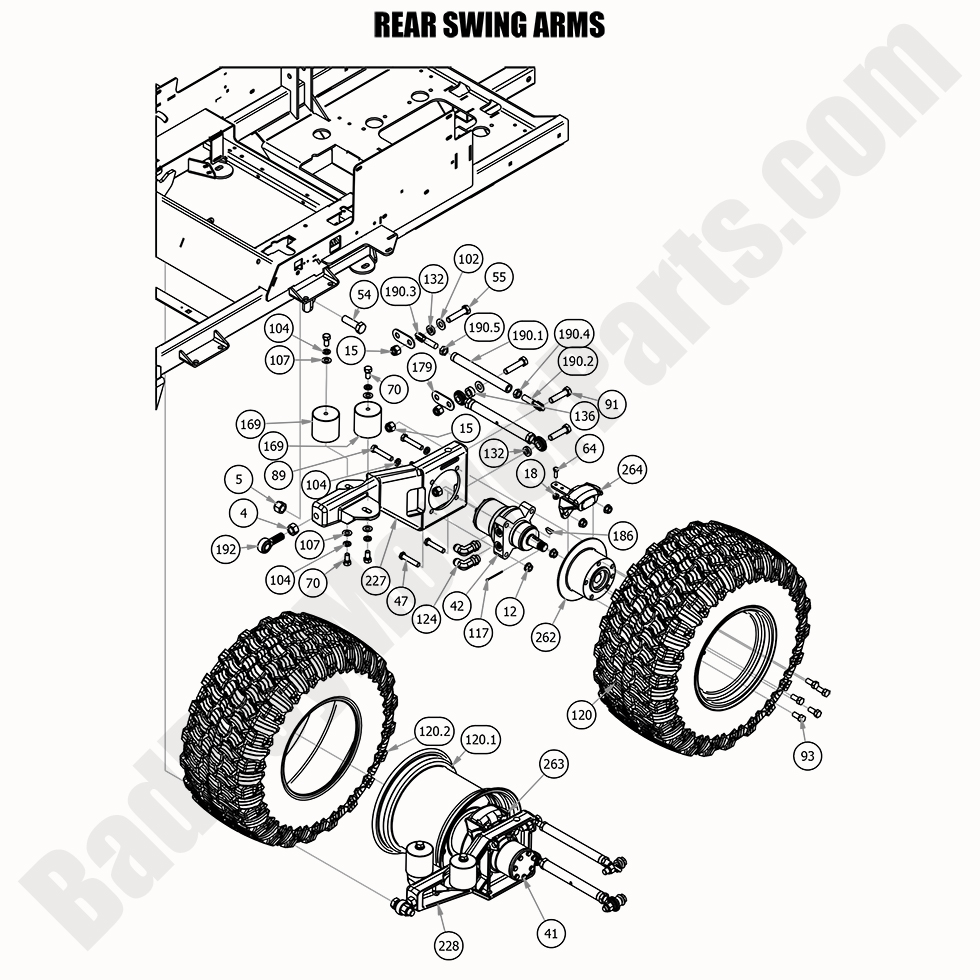

2020 Renegade - Diesel - Rear Swing Arm

2020 Renegade - Diesel - Rear Swing Arm

The 2020 Renegade - Diesel Rear Swing Arm is an essential component that supports the mower’s suspension and movement, ensuring smooth operation over uneven terrain. A worn or damaged swing arm can cause instability and reduce overall performance. To keep your mower in top condition, replace faulty parts with genuine Bad Boy Mower Parts from BadBoyMowerParts.com. Our selection of Bad Boy Lawn Mower Parts includes durable swing arms, bushings, and hardware designed for heavy-duty use. Unsure of which part to order? Our Bad Boy Mower Part diagrams simplify the process, allowing you to find the exact component needed. Ordering through Bad Boy Parts Online is quick and convenient, ensuring fast delivery of top-quality replacements. Plus, take advantage of Free Shipping On Orders Over $100, maximizing your savings while keeping your 2020 Renegade - Diesel operating at peak efficiency.

Bad Boy Mower Parts Lookup

2020 Renegade - Diesel - Rear Swing Arm
  Position Number SKU Product Title Price
4 013-0022-00 013-0022-00 - 3/4"-16 Fine Full Nut
$7.36
5 013-0023-00 013-0023-00 - 3/4" Course Thread Nylon Lock Nut
$7.36
12 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
15 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
18 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
41 015-4600-00 015-4600-00 - 18cc Parker Wheel Motor-Right (See Models Used On for Detail)
$599.99
42 015-4601-00 015-4601-00 - 18cc Parker Wheel Motor
$599.99
47 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
54 018-0045-00 018-0045-00 - 3/4 x 2 1/2 Course Thread Bolt
$2.99
55 018-0049-00 018-0049-00 - 5/8-11 x 2 3/4 Hex Head Bolt
$4.39
64 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
70 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
89 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
91 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
93 018-7033-00 018-7033-00 - 1/2-20 X 1-1/2 Lug Bolts Zinc
$2.99
102 019-0009-00 019-0009-00 - 5/8" Flat Washer SAE Spec Grade 8
$2.99
104 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
107 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
117 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
120.0 022-4090-00 022-4090-00 - 26x12-12 Reaper Tire/Wheel Assembly
$371.99
120.1 022-4086-00 022-4086-00 - 2019-2022 10.5" Wheel Fits 022-4090-00
$190.99
120.2 022-4085-00 022-4085-00 - 2019-2025 26x12-12 Reaper Turf
$249.99
124 024-2065-00 024-2065-00 - Rogue/Renegade Wheel Motor 90 Degree Fitting
$18.67
132 025-0071-00 025-0071-00 - Spacer 1.125 OD X .625 ID X .250 Length
$14.19
136 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
169 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
179 039-2145-00 039-2145-00 - Suspension Gusset (See Models Used On For Details)
$14.19
186 042-7041-00 042-7041-00 - Woodruff Key-Wheel Motor
$14.19
190.0 048-6061-00 048-6061-00 - Rear Radius Rod W/ Greaseable Heim (See Models Used On For Detail)
$58.84
190.1 048-0001-00 048-0001-00 - Suspension Link Body-RH and LH Threads 2019-& Up Renegade & Rogue
$28.32
190.2 048-6062-00 048-6062-00 - RH 5/8" Heim For Suspension (See Models Used On For Details)
$42.58
190.3 048-6063-00 048-6063-00 - LH 5/8" Heim For Suspension (See Models Used On For Details)
$42.58
190.4 013-0019-00 013-0019-00 - Nut, 5/8-18 RH
$4.39
190.5 013-0020-00 013-0020-00 - Nut, 5/8-18 LH
$4.39
191.0 048-6064-00 048-6064-00 - Suspension linkage (3/4 body | 5/8 Hole)
$78.08
191.1 048-0002-00 048-0002-00 - Rear Radius Rod (3/4 Body) [Rogue, Reneg No Longer Available
Obsolete.
191.3 048-6066-00 048-6066-00 - 3/4 Body 5/8 Hole, Heim LH (See Models Used On For Details)
$42.58
191.5 013-0028-00 013-0028-00 - 3/4-16 LH Half Nut
$2.99
192 048-7001-00 048-7001-00 - 3/4-16 RH Male Rod End for suspension mowers -CMX12
$28.39
227 070-0001-00 070-0001-00 - Left Trailing Arm 2019-2022 Renegade & Rogue
$291.91
228 070-0002-00 070-0002-00 - Right Trailing Arm 2019-2022 Renegade & Rogue
$219.99
262 092-5201-00 092-5201-00 - 2007-2008 AOS/Diesel, 2014-2020 Diesel/Outlaw XP, 2019-2025 Renegade/Rogue Brake Disc 8
$119.36
263 092-7001-00 092-7001-00 - 2014-2018 Left Brake Caliper Outlaw XP/Diesel, 2019-2025 Renegade/Rogue
$99.32
264 092-7000-00 092-7000-00 - 2014-2018 Right Brake Caliper Outlaw XP/Diesel, 2019-2024 Renegade/Rogue Left Brake Caliper w/bracket
$99.32
