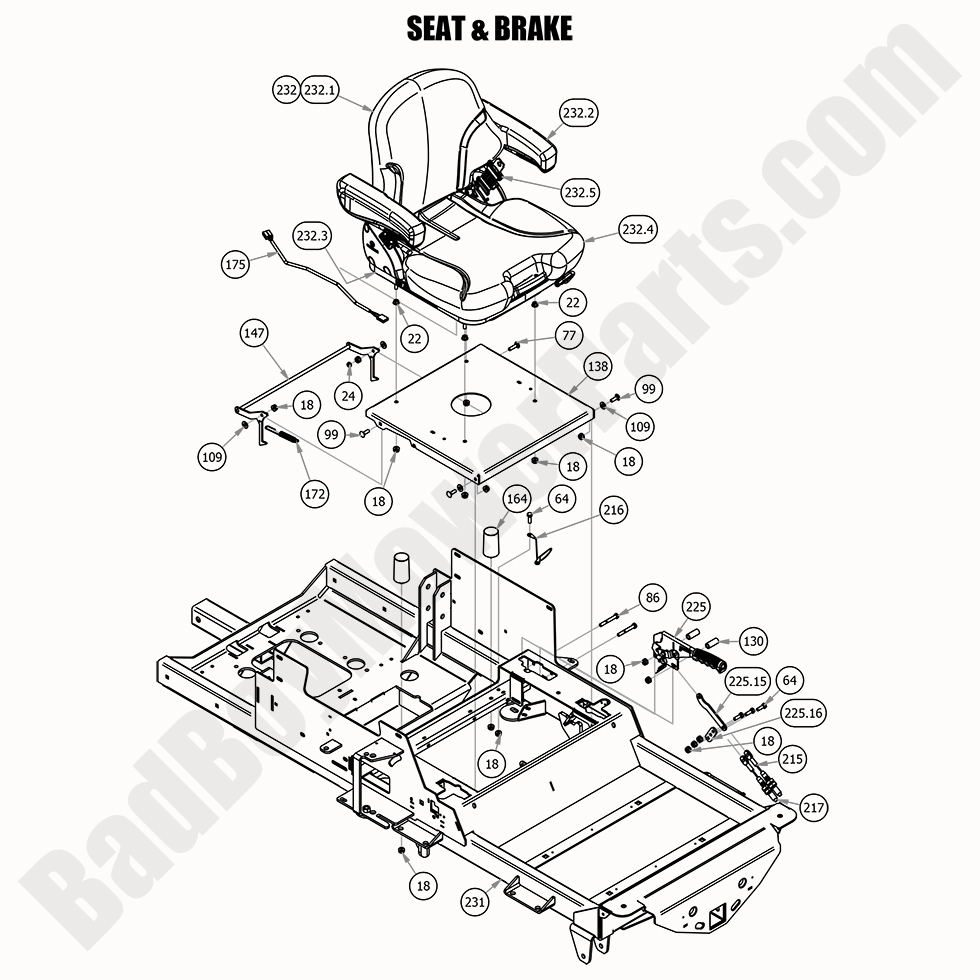

2020 Renegade - Diesel - Seat & Brake

2020 Renegade - Diesel - Seat & Brake

Comfort and safety are essential when operating a 2020 Renegade - Diesel, making the Seat & Brake components crucial to the mower’s performance. Over time, seats can wear out, reducing operator comfort, while brake systems may require new pads, cables, or hydraulic components to maintain stopping power. When it’s time for replacements, trust Bad Boy Mower Parts for high-quality, durable options. At BadBoyMowerParts.com, we provide a wide selection of Bad Boy Lawn Mower Parts, ensuring you find the right seat cushions, brake assemblies, and related hardware for your mower. Our Bad Boy Mower Part diagrams simplify the selection process, helping you locate the exact components you need. Ordering through Bad Boy Parts Online ensures a smooth shopping experience, and with Free Shipping On Orders Over $100, you can save on necessary repairs while keeping your mower comfortable and safe to operate.

Bad Boy Mower Parts Lookup

2020 Renegade - Diesel - Seat & Brake
  Position Number SKU Product Title Price
1A 071-5065-07 071-5065-07 - Seat Switch fits the 071-5065-00 (See Models Used On For Details)
$42.58
18 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
22 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
24 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
64 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
77 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
86 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
99 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
109 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
130 025-0027-00 025-0027-00 - Brake Handle Spacer.625 x 1.5 2019-2022 Rebel, Renegade & Rogue
$7.25
138 026-2019-00 026-2019-00 - Seat Plate 2019-2024 Rebel, Renegade & Rogue
$99.32
147 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
164 032-0001-00 032-0001-00 - Rubber Bumper (Seat) 2019-2022 Rebel, Renegade & Rogue
$23.41
172 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
175 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
215 064-8054-00 064-8054-00 - Short Brake Cable-Suspension Models (See Models Used On For Details)
$51.47
216 064-8081-00 064-8081-00 - Seat Cable
$15.60
217 064-9002-00 064-9002-00 - Long Brake Cable- 2019-2025 Renegade, Rogue
$51.47
225.0 069-0001-00 069-0001-00 - Brake Handle Assembly (See Models Used On For Details)
$132.68
225.15 039-2136-00 039-2136-00 - 2019 Brake Load Balancer Tab-Upper
$21.39
225.16 039-2138-00 039-2138-00 - 2019 Brake Load Balancer Tab-Lower
$21.39
231 070-5374-19 070-5374-19 - Horizontal Diesel Renegade Frame
$1299.99
232.0 071-5065-00 071-5065-00 - 2019 - 2021 Seat with Seatbelt with ROPS (See Models Used On For Details)
$899.99
232.1 071-5065-03 071-5065-03 - Backrest Cushion fits the 071-5065-00 for 2019-2021 Rebel & Renegade
$180.99
232.2 071-5065-06 071-5065-06 - Armrest Kit fits the 071-5065-00 for 2019-2021 Rebel & Renegade
$139.99
232.3 071-5065-05 071-5065-05 - Seat Rail Kit fits the 071-5065-00 (See Models Used On For Details)
$85.17
232.4 071-5065-04 071-5065-04 - Seat Cushion fits the 071-5065-00 for 2019-2021 Rebel & Renegade
$191.99
232.5 071-5065-02 071-5065-02 - Seatbelt for 2019-2021 Rebel & Renegade
$132.68
