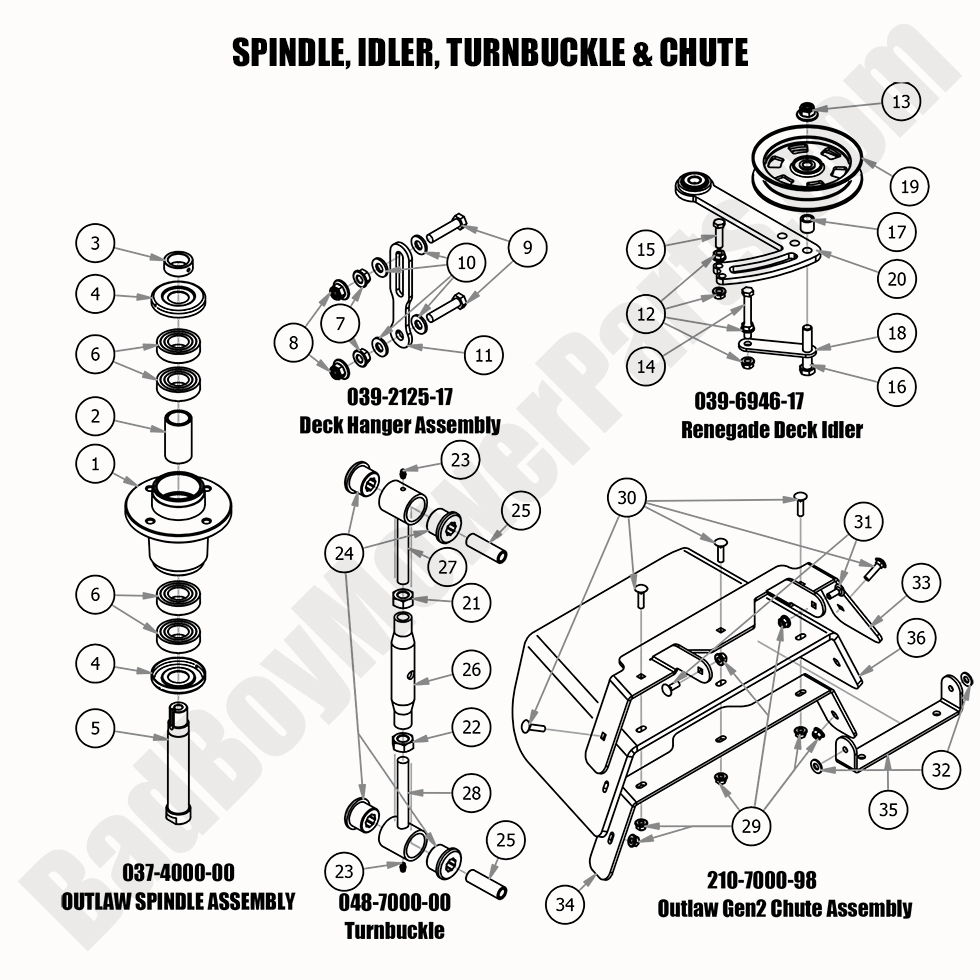

2020 Renegade - Diesel - Spindle, Idler, Turnbuckle & Chute

2020 Renegade - Diesel - Spindle, Idler, Turnbuckle & Chute

The 2020 Renegade - Diesel Spindle, Idler, Turnbuckle & Chute are vital components that contribute to the mower's cutting efficiency and deck stability. A worn-out spindle can lead to uneven cuts, while a faulty idler affects belt tension, and a damaged chute impacts grass discharge. For top-tier performance, trust Bad Boy Mower Parts for durable, factory-approved replacements. At BadBoyMowerParts.com, we provide a full range of Bad Boy Lawn Mower Parts, including spindles, idlers, turnbuckles, and chutes designed for the 2020 Renegade - Diesel. If you're unsure which part to order, our Bad Boy Mower Part diagrams simplify identification and installation. Ordering through Bad Boy Parts Online ensures you receive the correct components quickly and hassle-free. Plus, take advantage of Free Shipping On Orders Over $100, maximizing savings while keeping your mower running smoothly. Upgrade your cutting system with our premium replacement parts today.

Bad Boy Mower Parts Lookup

2020 Renegade - Diesel - Spindle, Idler, Turnbuckle & Chute
  Position Number SKU Product Title Price
1.0 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
2 037-4002-00 037-4002-00 - Spindle Spacer (See Models Used On For Details)
$7.28
3 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
4 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
5 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
6 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
7.0 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
7 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
8 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
9 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
10 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
11 039-2125-00 039-2125-00 - Outlaw Deck Hanger Bracket (See Models Used On For Details) (obsolete)
use part #039-2125-17
$15.60
12.0 039-6946-17 039-6946-17 - 2019-2025 Renegade Deck Idler Assembly
$78.08
12 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
14 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
15 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
16 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
17 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
18 026-0167-00 026-0167-00 - Belt Tensioner Retainer Plate 2019-2022 Rebel, Renegade & Rogue
$26.74
19 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
20 039-6946-00 039-6946-00 - Deck Tensioner 2019-2025 Rebel, Renegade & Rogue
$35.48
21.0 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
21 013-0007-00 013-0007-00 - 11/16-12 Hex Nut Toplink
$2.99
22 013-0008-00 013-0008-00 - 11/16-12 Lefthand Hex Nut-Topl ink
$2.99
23 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
24 032-2000-00 032-2000-00 - Toplink Bushing (See Models Used On For Detail)
$4.37
25 032-2001-00 032-2001-00 - Toplink Sleeve (See Models Used On For Detail)
$4.37
26 048-7020-00 048-7020-00 - Outlaw Toplink Body (See Models Used On For Details)
$28.32
27 048-7021-00 048-7021-00 - Outlaw Toplink RH End (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
28 048-7022-00 048-7022-00 - Outlaw Toplink LH End (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
29.0 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
29 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
30 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
31 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
32 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
33 039-4893-00 039-4893-00 - Upper Chute Bracket (See Models Used On For Details)
$46.84
34 039-4894-00 039-4894-00 - Lower Chute Bracket (See Models Used On For Details)
$43.72
35 206-6018-00 206-6018-00 - Chute Hanger 2019-2025 Rebel, Revolt, Renegade & Rogue
$9.67
36 210-6025-00 210-6025-00 - Belted Chute with Logo 2019-& Up Rebel, Revolt, Renegade & Rogue
$62.40
