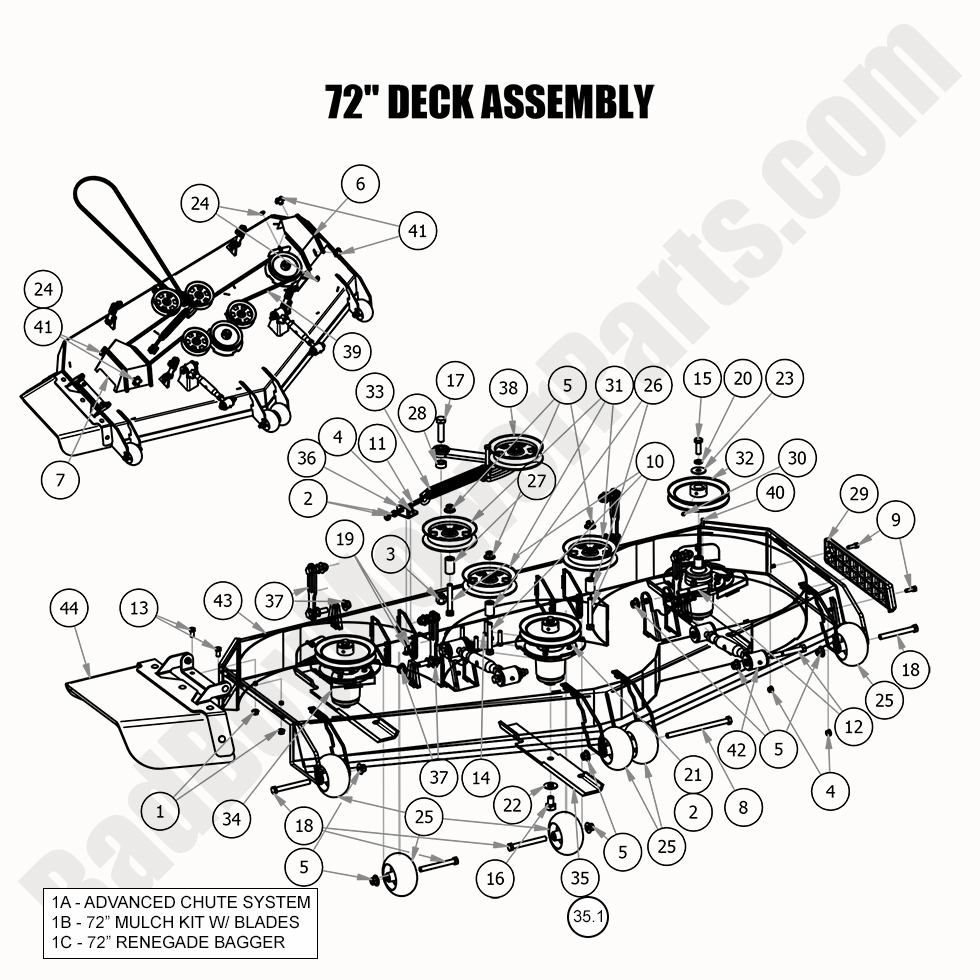

2020 Renegade - Gas - 72" Deck Assembly

2020 Renegade - Gas - 72" Deck Assembly

Maximize cutting efficiency with the 2020 Renegade - Gas 72" Deck Assembly, designed for large-scale mowing with precision and power. Keeping your deck in peak condition requires top-quality Bad Boy Mower Parts, including durable blades, spindles, and belts. At BadBoyMowerParts.com, we provide a full inventory of Bad Boy Lawn Mower Parts to keep your machine running smoothly. With our detailed Bad Boy Mower Part diagrams, finding the right replacements is quick and hassle-free. Whether you need new pulleys or a full spindle rebuild, we make it easy to order Bad Boy Parts Online for a perfect fit. A well-maintained deck assembly ensures a cleaner cut and reduces strain on your mower’s engine. Plus, take advantage of Free Shipping On Orders Over $100 for even more savings. Trust high-quality components to keep your 2020 Renegade - Gas 72" Deck Assembly performing at its best.

Bad Boy Mower Parts Lookup

2020 Renegade - Gas - 72" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0372-00 210-0372-00 - 2019-2025 72" Mulch Kit w/Blades Outlaws
$318.45
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
3 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 014-5054-00 014-5054-00 - 72" Left Deck Pulley Cover 2019 & Up Rebel, Renegade & Rogue
$17.86
7 014-5055-00 014-5055-00 - 72" Right Deck Pulley Cover (See Models Used On For Details)
$17.86
8 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
9 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
10 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
11 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
12 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
13 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
14 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
15 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
16 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
17 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
18 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
19 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
20 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
21 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
22 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
23 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
24 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
25 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
26 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
27 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
28 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
29 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
30 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
31 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
32 033-7203-00 033-7203-00 - 7" Spindle Deck Pulley 72" Decks
$35.48
33 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
34 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
35.1 038-5400-00 038-5400-00 - 72" Gator Mulching Blade
$24.99
35 038-7230-00 038-7230-00 - 72" High Lift Fusion Blade
$24.99
36 039-0144-00 039-0144-00 - Deck Eye Bolt Tab For Rebel/Renegade/Rogue (See Models Used On For Details)
$14.19
37 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
38 039-6946-17 039-6946-17 - 2019-2025 Renegade Deck Idler Assembly
$78.08
39 041-2375-00 041-2375-00 - B237.50 Deck Belt for 60" AOS Diesel & 72" AOS Gas Models (NOT FOR 72" DIESEL)
$131.30
40 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
41 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
42 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
43 060-7251-19 060-7251-19 - 72" Sloped Deck Shell 2019-Newer Rebel, Renegade & Rogue
$1461.53
44 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
