2020 Renegade - Gas - Deck Height

2020 Renegade - Gas - Deck Height

The 2020 Renegade - Gas Deck Height adjustment is a critical feature for ensuring precise cutting on various terrains. A well-adjusted deck height allows you to maintain the desired grass length, promoting a healthy lawn. At BadBoyMowerParts.com, we offer a complete range of Bad Boy Mower Parts to keep your deck functioning properly. Bad Boy Mower Part diagrams help you locate the right parts for your deck height system. Whether you need a replacement deck height lever, springs, or pins, we have the parts you need. Our Bad Boy Lawn Mower Parts ensure your mower remains in peak condition for optimal performance. You can easily find and order Bad Boy Parts Online, and enjoy Free Shipping On Orders Over $100 for added convenience. Keep your 2020 Renegade - Gas Deck Height adjustment system working smoothly for an even and clean cut every time.

Bad Boy Mower Parts Lookup

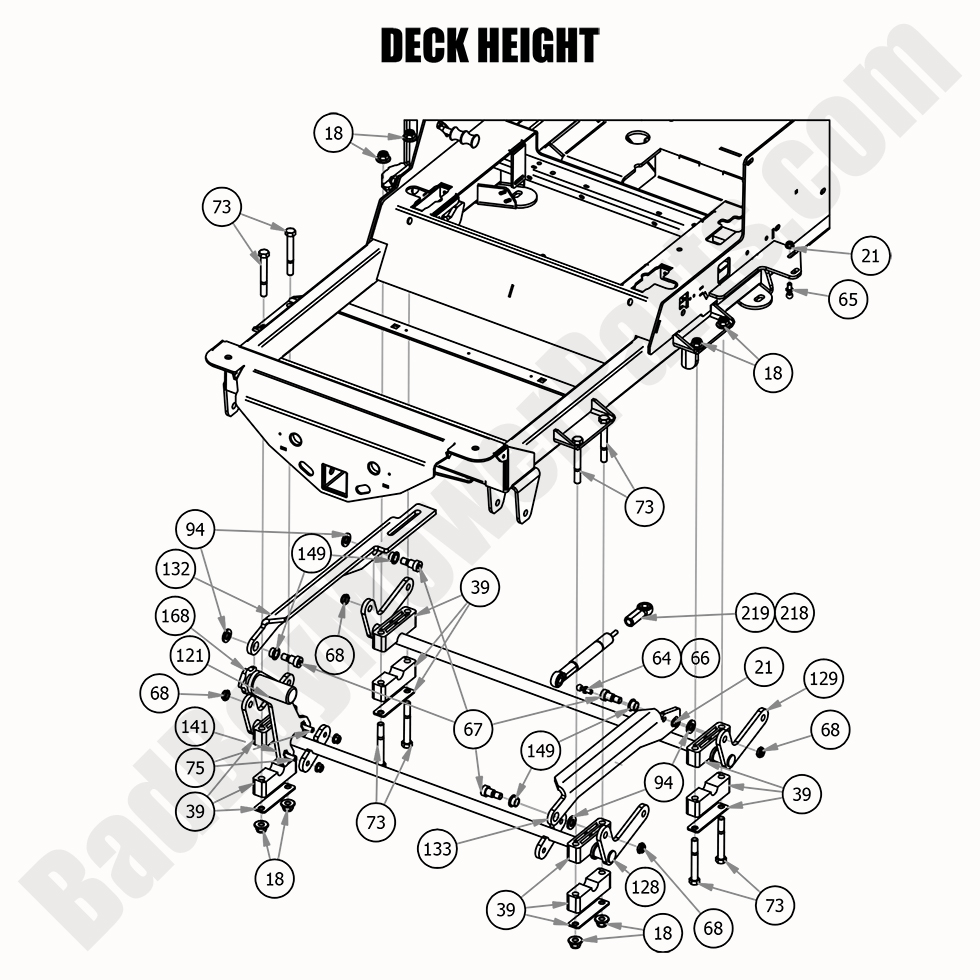

2020 Renegade - Gas - Deck Height
  Position Number SKU Product Title Price
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
21 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
39 017-9075-00 017-9075-00 - Pillow Block Assembly (See Models Used On For Details)
$38.51
64 018-2049-00 018-2049-00 - 13mm Ball Stud for 72" Deck Damper (See Models Used On For Details)
$4.83
65 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
66 018-2055-00 018-2055-00 - 10mm Damper Stud-XP Linkage
$2.99
67 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
68 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
73 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
75 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
94 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
121 026-0026-00 026-0026-00 - Knurled Foot Pedal
$39.03
128 028-0026-00 028-0026-00 - Front Actuator Bar 2019-2022 Rebel, Renegade & Rogue
$119.41
129 028-0027-00 028-0027-00 - Rear Actuator Bar 2019-2022 Rebel, Renegade & Rogue
$82.38
132 028-6075-00 028-6075-00 - Actuator Linkage-Right 2019-2021 Rebel, Renegade & Rogue
$53.49
133 028-6076-00 028-6076-00 - Actuator Linkage-Left 2019-2021 Rebel, Renegade & Rogue
$12.94
141 031-0003-00 031-0003-00 - Foot Lift Upright Lever
$17.11
149 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
168 045-6044-00 045-6044-00 - Foot Pedal Knob 1/2-13
$12.48
218 087-6100-00 087-6100-00 - 250lb Gas Spring - 61" Outlaw Deck Damper
$78.01
219 087-7200-00 087-7200-00 - 300 lb Gas Spring -72" Deck Damper
$62.40
