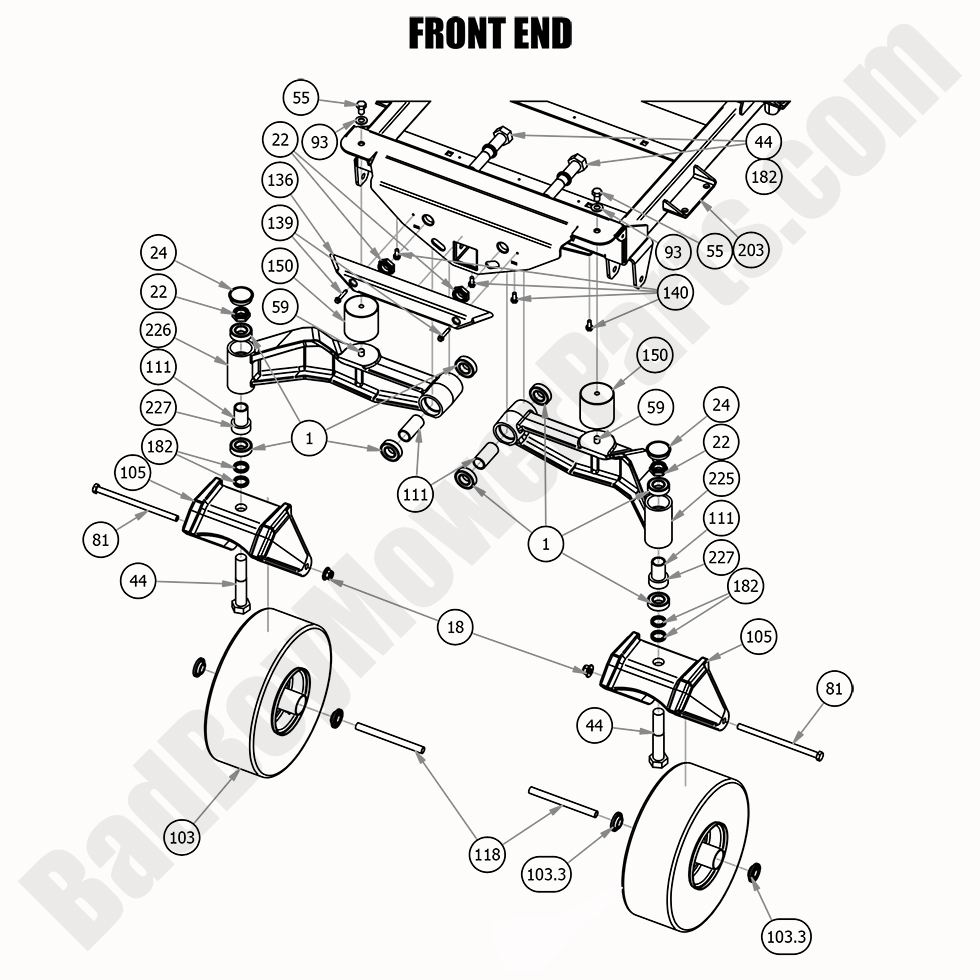

2020 Renegade - Gas - Front End

2020 Renegade - Gas - Front End

The 2020 Renegade - Gas Front End is a crucial part of your mower, providing stability and strength to the overall structure. It houses critical components such as the front axle and suspension, which work together to ensure a smooth and efficient mowing experience. If you're experiencing issues with the front end, Bad Boy Mower Parts can provide the exact components you need for repairs or upgrades. At BadBoyMowerParts.com, we offer a wide range of Bad Boy Lawn Mower Parts to keep your front end performing at its best. Use our Bad Boy Mower Part diagrams to find the right parts, from axles to tie rods. Plus, shopping Bad Boy Parts Online is easy and convenient, and with Free Shipping On Orders Over $100, you can keep your 2020 Renegade - Gas running smoothly while saving on shipping costs. Ensure your mower's front end is always in top condition with quality parts.

Bad Boy Mower Parts Lookup

2020 Renegade - Gas - Front End
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
22 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
24 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
44 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90

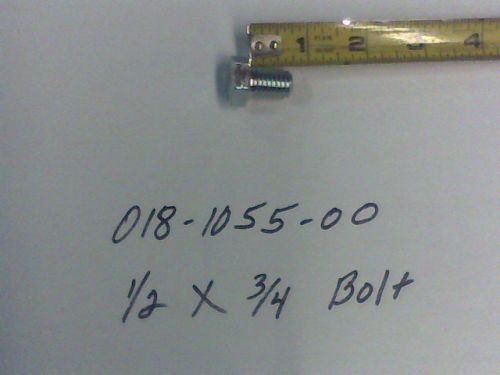

55 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99

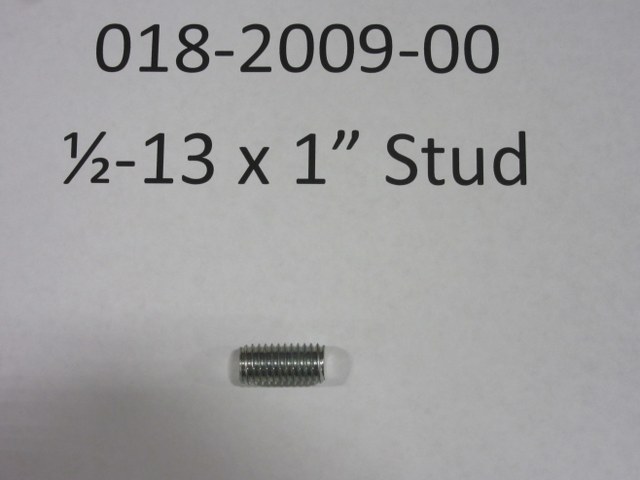

59 018-2009-00 018-2009-00 - 1/2-13 x 1" Stud
$5.82

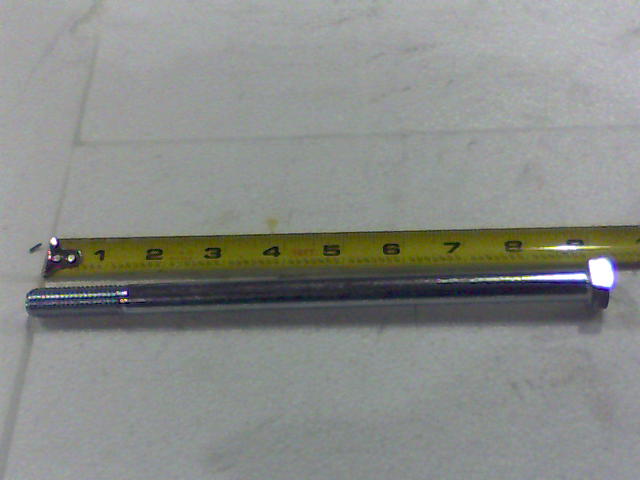

81 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
93 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99

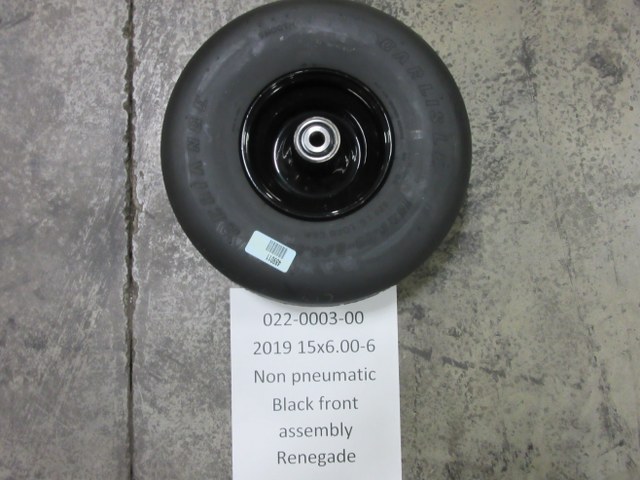

103.0 022-0003-00 022-0003-00 - 15x6.00-6 No-Flat Black Front Assembly
$159.99
103.3 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
105 023-0004-00 023-0004-00 - 2019-2020 Renegade & Rogue Front Fork
$169.99

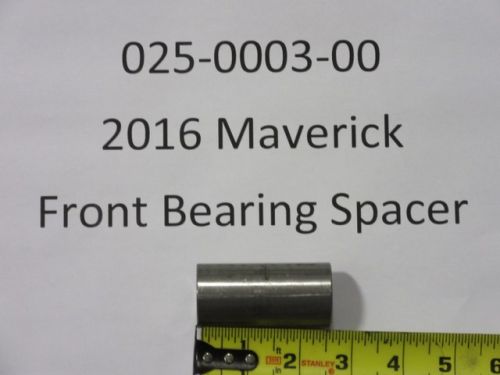

111 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04

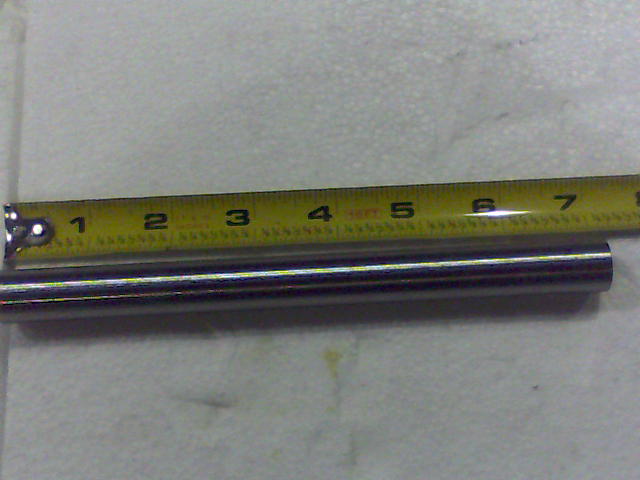

118 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44

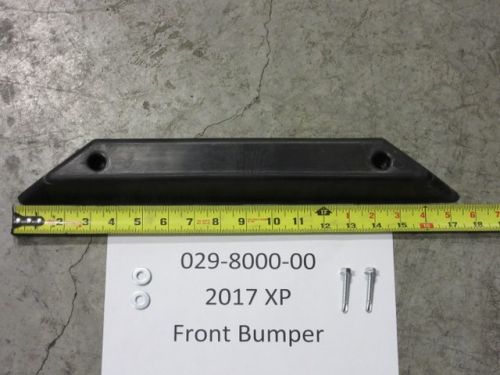

136 029-8000-00 029-8000-00 - Front Bumper (See Models Used On For Details)
$31.17
139 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99

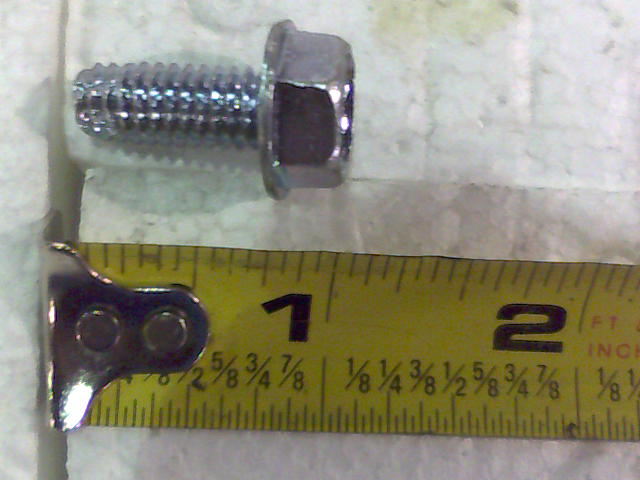

140 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99

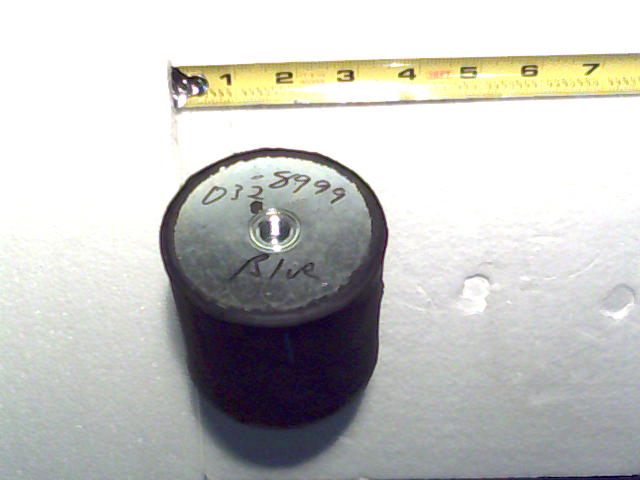

150 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22

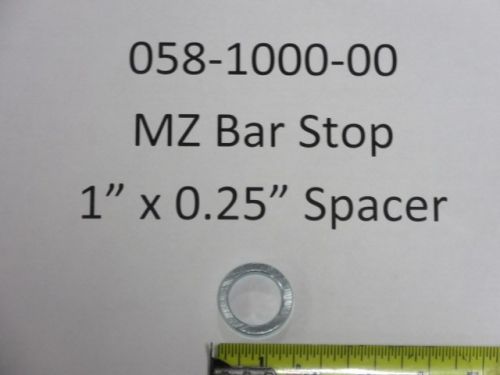

182 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
203 070-5373-19 070-5373-19 - 2019-2022 Horizontal Gas Frame Welded Assembly
$1461.53

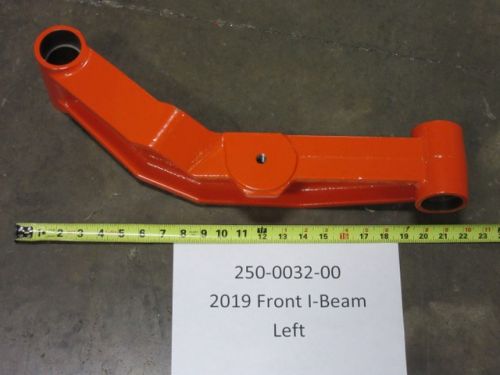

225 250-0032-00 250-0032-00 - Left Front I-Beam 2019-2021 Renegade & Rogue
$248.99

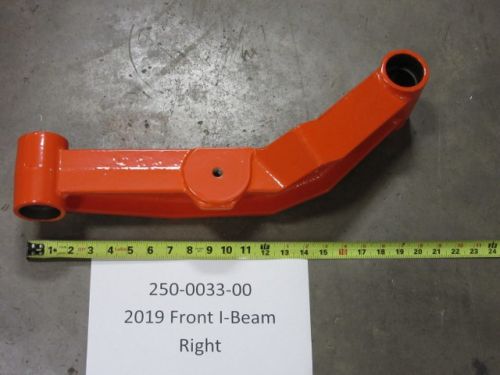

226 250-0033-00 250-0033-00 - Right Front I-Beam 2019-2021 Renegade & Rogue
$320.99
227 029-7050-00 029-7050-00 - Rubber Stabilizer (Front Fork)
$8.74
