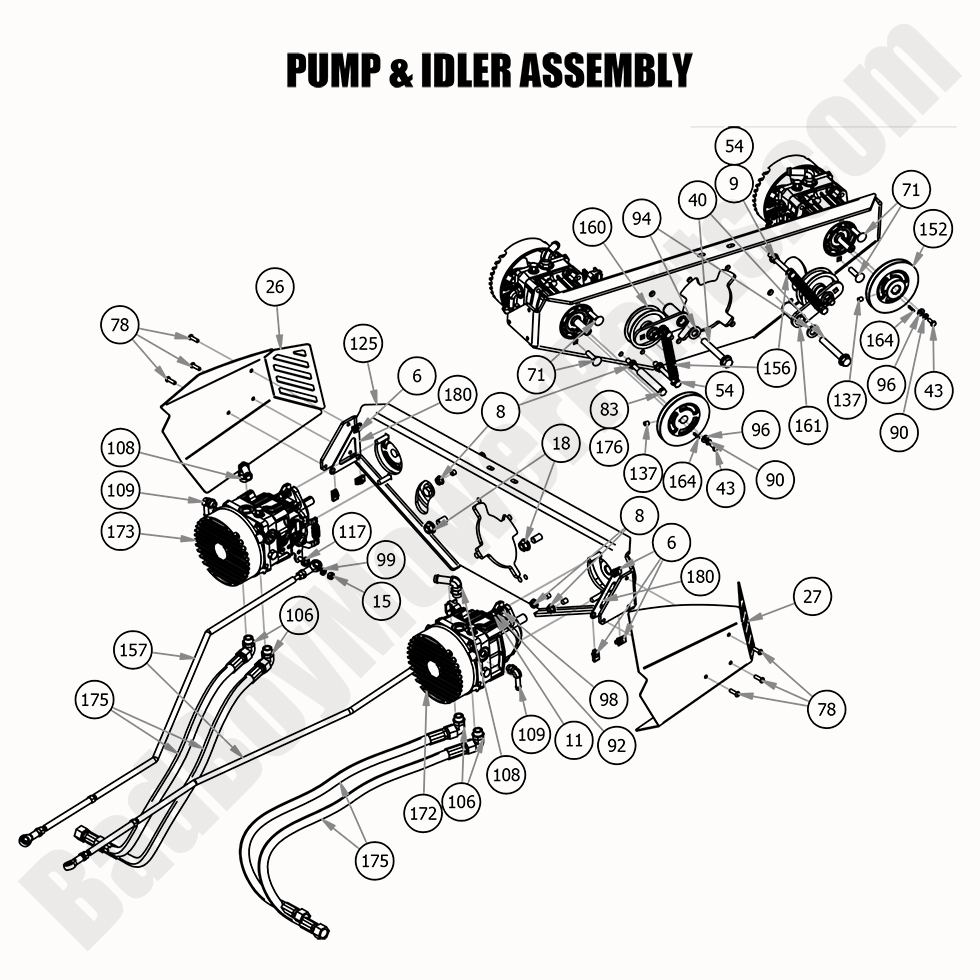

2020 Renegade - Gas - Pump & Idler Assembly

2020 Renegade - Gas - Pump & Idler Assembly

The 2020 Renegade - Gas Pump & Idler Assembly plays a key role in maintaining your mower’s performance. The pump delivers fuel to the engine, while the idler assembly ensures the proper tension for belts and components, making sure everything runs smoothly. If either part becomes worn or damaged, it’s crucial to replace them with high-quality Bad Boy Mower Parts. At BadBoyMowerParts.com, we provide the components you need, including pumps, idlers, and related parts. Use our Bad Boy Mower Part diagrams to find the exact part for your 2020 Renegade - Gas. Ordering Bad Boy Lawn Mower Parts is easy with Bad Boy Parts Online, and we offer Free Shipping On Orders Over $100, making it more affordable to maintain your equipment. Ensure your mower continues to run efficiently with quality replacement parts for your 2020 Renegade - Gas Pump & Idler Assembly.

Bad Boy Mower Parts Lookup

2020 Renegade - Gas - Pump & Idler Assembly
  Position Number SKU Product Title Price
6 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
8 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
11 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
15 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99

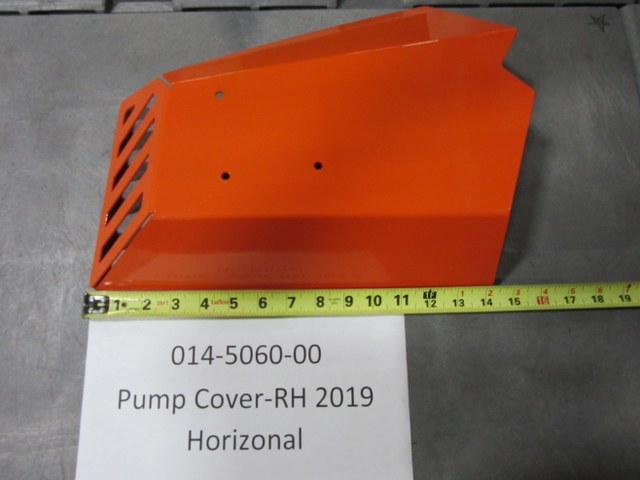

26 014-5060-00 014-5060-00 - 2019-2021 Renegade Pump Cover-RH
$21.39
27 014-5061-00 014-5061-00 - 2019-2021 Renegade Pump Cover-LH
$32.09
40 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
43 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
54 018-1010-00 018-1010-00 - 3/8-16 x 3-1/2 Hex Bolt
$2.99
71 018-4706-00 018-4706-00 - 3/8 x 1 1/2 Carriage Bolt
$2.99
78 018-6014-00 018-6014-00 - 1/4-20 x 1" BS C/S 18-8 SS
$5.82
83 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
90 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
92 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
94 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
96 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
98 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
99 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
106 024-2052-00 024-2052-00 - 2019-2022 Renegade Horizontal Pump Fitting 90 Degree # 6801-10-8
$12.48
108 024-5002-00 024-5002-00 - 90 Degree Fitting, 1/2 x 3/4, 986741
$17.63
109 024-5206-00 024-5206-00 - 90 Degree Fitting, 3/8 x 9/16, 4601-6-6
$12.42
117 025-2001-00 025-2001-00 - ACS Spacer 3/4x3/8x1/4
$15.60
125 026-8010-00 026-8010-00 - Pump Plate Horizontal Gas
$106.99

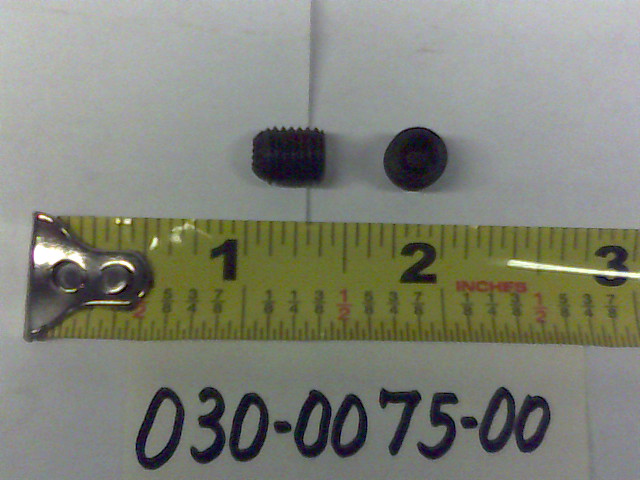

137 030-0075-00 030-0075-00 - 5/16-24 X 3/8 Set Screw
$2.99
152 033-5011-00 033-5011-00 - Cast Pump Pulley - 17mm AOS/Diesel Models
$35.48
156 034-9000-00 034-9000-00 - SPRING (See Models Used On For Details)
$15.55
157 035-0005-00 035-0005-00 - Push Rod Assembly 2019-2025 Renegade
$46.84
160 039-6950-98 039-6950-98 - 2020-2025 Renegade Gas Belt Tensioner LH
$85.17
161 039-6950-99 039-6950-99 - 2020-2022 Renegade Gas Belt Tensioner RH
$85.17

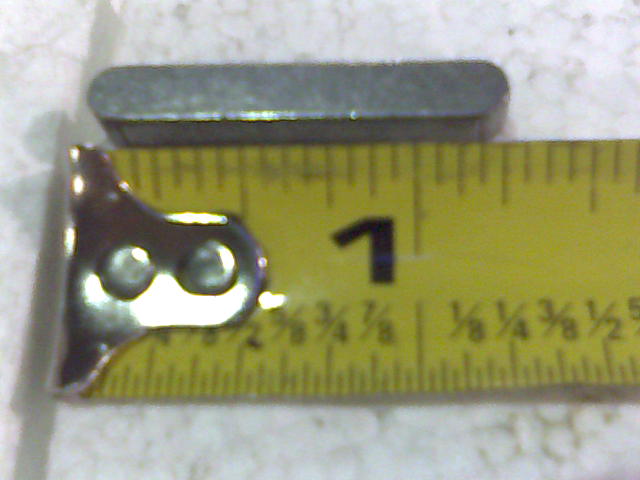

164 042-5012-00 042-5012-00 - 5MM X 1.25 Square Key (obsolete)
use part #042-5013-00
$2.99
172 050-3001-00 050-3001-00 - Rogue/Renegade Left Pump 16cc Hydro-Gear# PR-2KCC-GB1C-XXXX (See Models Used On For Details)
$699.99
173 050-3003-00 050-3003-00 - 2019-2024 Renegade Right Pump 16cc Hydro-Gear # PR-2HCC-GA1C-XXXX
$649.99
175 051-6007-00 051-6007-00 - 2019-& Up Renegade Hydro Hose
$54.64
176 051-8076-00 051-8076-00 - 3/8 Fuel Line-Priced per Foot
$6.59
180 057-5915-00 057-5915-00 - Pump Plate Clip Nut Holder
$17.11
