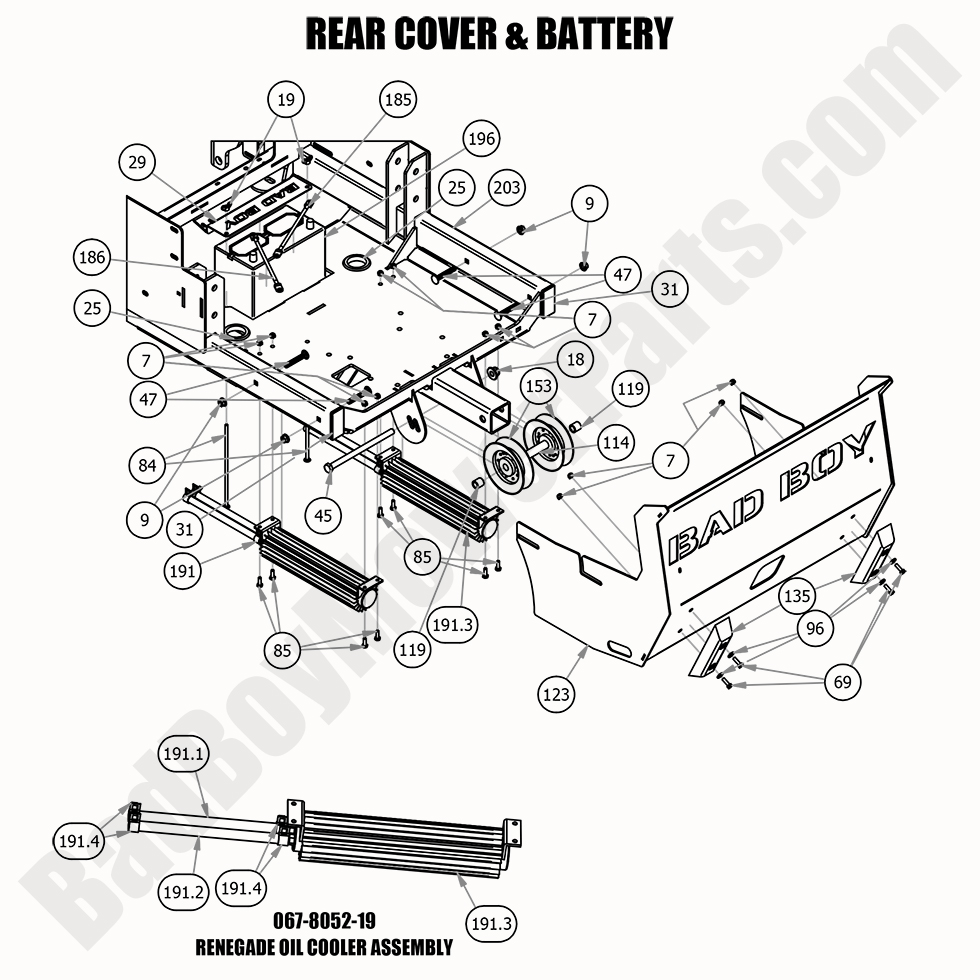

2020 Renegade - Gas - Rear Cover & Battery

2020 Renegade - Gas - Rear Cover & Battery

The 2020 Renegade - Gas Rear Cover & Battery are essential parts that protect key components and ensure reliable power. The rear cover shields the mower’s interior components, while the battery powers the electrical system, enabling smooth starts and operation. If either part is worn or malfunctioning, replacing them promptly with quality Bad Boy Mower Parts is crucial. At BadBoyMowerParts.com, we offer an extensive selection of Bad Boy Lawn Mower Parts, including rear covers and batteries specifically designed for your 2020 Renegade - Gas. Our Bad Boy Mower Part diagrams make it easy to find the right parts for the rear cover and battery replacement. Shopping for Bad Boy Parts Online is quick and convenient, and you can take advantage of Free Shipping On Orders Over $100 to save on shipping. Ensure your mower stays in top shape by replacing the rear cover and battery with reliable, high-quality parts.

Bad Boy Mower Parts Lookup

2020 Renegade - Gas - Rear Cover & Battery
  Position Number SKU Product Title Price
7 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
19 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
25 014-2052-00 014-2052-00 - 2 x .25 Rubber Grommet (See Models Used On For Details)
$12.83
29 014-5063-00 014-5063-00 - Battery Hold Down Cover 2019-2025 Renegade
$10.99
31 014-9003-00 014-9003-00 - 1 1/2 x 3 Frame Plug
$2.99
45 018-0040-00 018-0040-00 - 1/2-13 x 8 1/2 Gr5 Hex Bolt
$7.18
47 018-0044-00 018-0044-00 - 3/8 x 2 1/2 Carriage Bolt
$2.99
69 018-4702-00 018-4702-00 - 1/4-20 X 1-1/4 Hex Bolt
$2.99
84 018-8051-00 018-8051-00 - 1/4-20 X 9 Carriage Bolts Zinc
$2.99
85 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
96 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
114 025-0028-00 025-0028-00 - Pulley Spacer.75 x 4.375 x.5 ID 2019-2022 Renegade
$9.61
119 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
123 026-2224-00 026-2224-00 - Rear Side Cover 2019-2022 Renegade
$199.99
135 029-7038-00 029-7038-00 - 8 Bumper
$28.32
153 033-7027-00 033-7027-00 - Horizontal Rear V Pulley
$46.84
185 064-4000-00 064-4000-00 - Red Battery Cable (See Models Used On For Details)
$23.53
186 064-4001-00 064-4001-00 - Black Battery Cable (See Models Used On For Details)
$22.31
191.0 067-8052-19 067-8052-19 - Renegade Oil Cooler-Assy
$70.97
191.1 051-8063-14 051-8063-14 - 14" 3/8 Clear Hose No Clamp
$6.04
191.2 051-8063-24 051-8063-24 - 24" 3/8 Clear Hose No Clamps
$12.48
191.3 067-8052-00 067-8052-00 - 2019-2022 12" Oil Cooler With Fittings (See Models Used On For Details)
$62.46
191.4 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
203 070-5373-19 070-5373-19 - 2019-2022 Horizontal Gas Frame Welded Assembly
$1461.53
