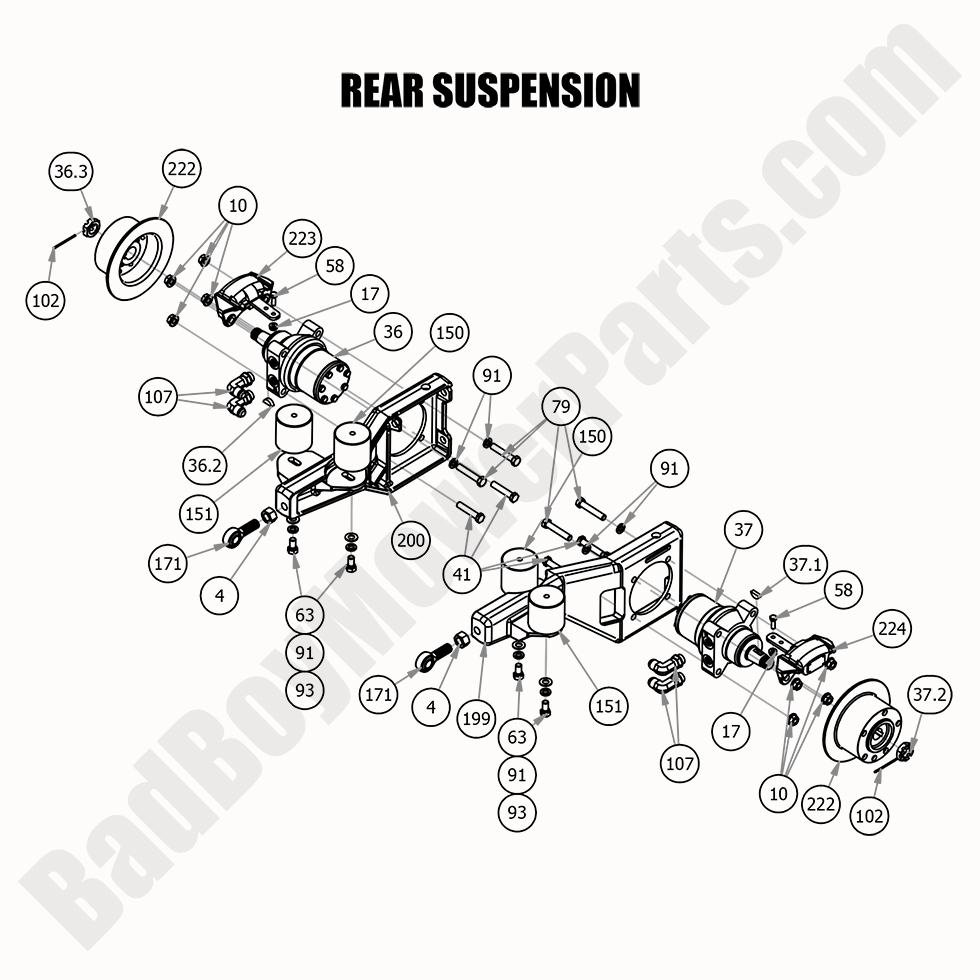

2020 Renegade - Gas - Rear Suspension

2020 Renegade - Gas - Rear Suspension

The 2020 Renegade - Gas Rear Suspension is a vital component that ensures a smooth ride over uneven terrain. This system absorbs shocks and vibrations, enhancing the operator's comfort and reducing strain on the mower's frame. If the rear suspension begins to wear out or lose its effectiveness, it can impact the quality of the ride and the mower’s performance. At BadBoyMowerParts.com, we offer Bad Boy Mower Parts specifically designed for your 2020 Renegade - Gas model, including suspension components such as springs, shock absorbers, and mounting hardware. Our Bad Boy Mower Part diagrams will help you easily locate the parts needed for repairs or upgrades. With Bad Boy Lawn Mower Parts available Bad Boy Parts Online, you can quickly find what you need and get your mower back to optimal performance. Plus, enjoy Free Shipping On Orders Over $100 to save on parts and shipping.

Bad Boy Mower Parts Lookup

2020 Renegade - Gas - Rear Suspension
  Position Number SKU Product Title Price
4 013-0022-00 013-0022-00 - 3/4"-16 Fine Full Nut
$7.36
10 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
36.0 015-4600-00 015-4600-00 - 18cc Parker Wheel Motor-Right (See Models Used On for Detail)
$599.99
36.2 042-7041-00 042-7041-00 - Woodruff Key-Wheel Motor
$14.19
36.3 013-7050-00 013-7050-00 - 1" Castle Nut for Wheel Motor (obsolete)
use part #013-7055-00
$18.18
37.0 015-4601-00 015-4601-00 - 18cc Parker Wheel Motor
$599.99
41 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
58 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
63 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
79 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
91 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
93 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
102 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
107 024-2065-00 024-2065-00 - Rogue/Renegade Wheel Motor 90 Degree Fitting
$18.67
150 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
151 032-9000-00 032-9000-00 - Isolator - Green Dot
$70.97
171 048-7001-00 048-7001-00 - 3/4-16 RH Male Rod End for suspension mowers -CMX12
$28.39
199 070-0001-00 070-0001-00 - Left Trailing Arm 2019-2022 Renegade & Rogue
$291.91
200 070-0002-00 070-0002-00 - Right Trailing Arm 2019-2022 Renegade & Rogue
$219.99
222 092-5201-00 092-5201-00 - 2007-2008 AOS/Diesel, 2014-2020 Diesel/Outlaw XP, 2019-2025 Renegade/Rogue Brake Disc 8
$119.36
223 092-7001-00 092-7001-00 - 2014-2018 Left Brake Caliper Outlaw XP/Diesel, 2019-2025 Renegade/Rogue
$99.32
224 092-7000-00 092-7000-00 - 2014-2018 Right Brake Caliper Outlaw XP/Diesel, 2019-2024 Renegade/Rogue Left Brake Caliper w/bracket
$99.32
