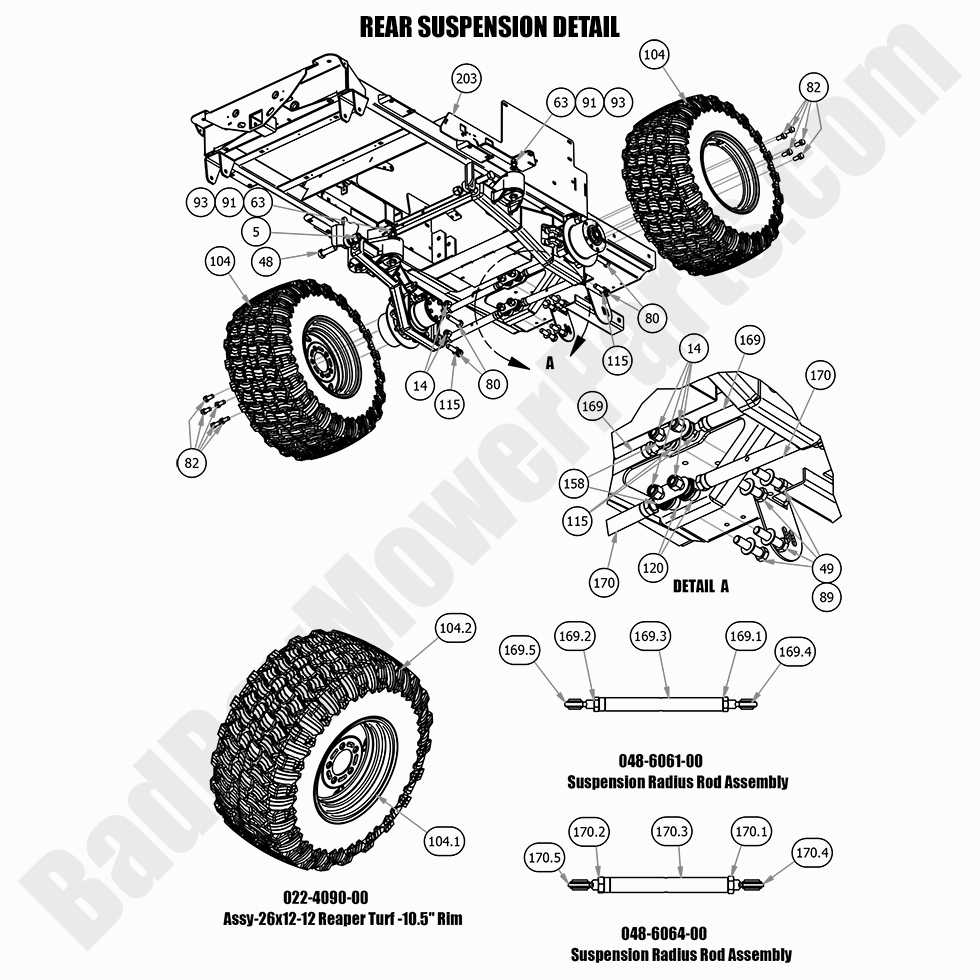

2020 Renegade - Gas - Rear Suspension Detail

2020 Renegade - Gas - Rear Suspension Detail

The 2020 Renegade - Gas Rear Suspension Detail provides an in-depth look at the individual components that make up the rear suspension system. These include shock absorbers, springs, and various bushings that work together to ensure the mower handles rough terrain smoothly. If any of these parts are damaged or worn, it can cause a rougher ride and potential damage to other components. At BadBoyMowerParts.com, we offer Bad Boy Mower Parts that are specifically designed for your 2020 Renegade - Gas rear suspension. Our detailed Bad Boy Mower Part diagrams help you easily identify the right parts for your repair needs. Shopping Bad Boy Parts Online is simple, and we provide Free Shipping On Orders Over $100, making it even more convenient and affordable to maintain your mower’s rear suspension. Keep your 2020 Renegade - Gas performing at its best with reliable, high-quality replacement parts.

Bad Boy Mower Parts Lookup

2020 Renegade - Gas - Rear Suspension Detail
  Position Number SKU Product Title Price
5 013-0023-00 013-0023-00 - 3/4" Course Thread Nylon Lock Nut
$7.36
14 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
48 018-0045-00 018-0045-00 - 3/4 x 2 1/2 Course Thread Bolt
$2.99
49 018-0049-00 018-0049-00 - 5/8-11 x 2 3/4 Hex Head Bolt
$4.39
63 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
80 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
82 018-7033-00 018-7033-00 - 1/2-20 X 1-1/2 Lug Bolts Zinc
$2.99
89 019-0009-00 019-0009-00 - 5/8" Flat Washer SAE Spec Grade 8
$2.99
91 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
93 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
104.0 022-4090-00 022-4090-00 - 26x12-12 Reaper Tire/Wheel Assembly
$371.99
104.1 022-4086-00 022-4086-00 - 2019-2022 10.5" Wheel Fits 022-4090-00
$190.99
104.2 022-4085-00 022-4085-00 - 2019-2025 26x12-12 Reaper Turf
$249.99
115 025-0071-00 025-0071-00 - Spacer 1.125 OD X .625 ID X .250 Length
$14.19
120 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
158 039-2145-00 039-2145-00 - Suspension Gusset (See Models Used On For Details)
$14.19
169.0 048-6061-00 048-6061-00 - Rear Radius Rod W/ Greaseable Heim (See Models Used On For Detail)
$58.84
169.1 013-0019-00 013-0019-00 - Nut, 5/8-18 RH
$4.39
169.2 013-0020-00 013-0020-00 - Nut, 5/8-18 LH
$4.39
169.3 048-0001-00 048-0001-00 - Suspension Link Body-RH and LH Threads 2019-& Up Renegade & Rogue
$28.32
169.4 048-6062-00 048-6062-00 - RH 5/8" Heim For Suspension (See Models Used On For Details)
$42.58
169.5 048-6063-00 048-6063-00 - LH 5/8" Heim For Suspension (See Models Used On For Details)
$42.58
170.0 048-6064-00 048-6064-00 - Suspension linkage (3/4 body | 5/8 Hole)
$78.08
170.2 013-0028-00 013-0028-00 - 3/4-16 LH Half Nut
$2.99
170.3 048-0002-00 048-0002-00 - Rear Radius Rod (3/4 Body) [Rogue, Reneg No Longer Available
Obsolete.
170.4 048-6065-00 048-6065-00 - 3/4 Body 5/8 Hole, Heim RH (See Models Used On For Details)
$42.58
170.5 048-6066-00 048-6066-00 - 3/4 Body 5/8 Hole, Heim LH (See Models Used On For Details)
$42.58
203 070-5373-19 070-5373-19 - 2019-2022 Horizontal Gas Frame Welded Assembly
$1461.53
