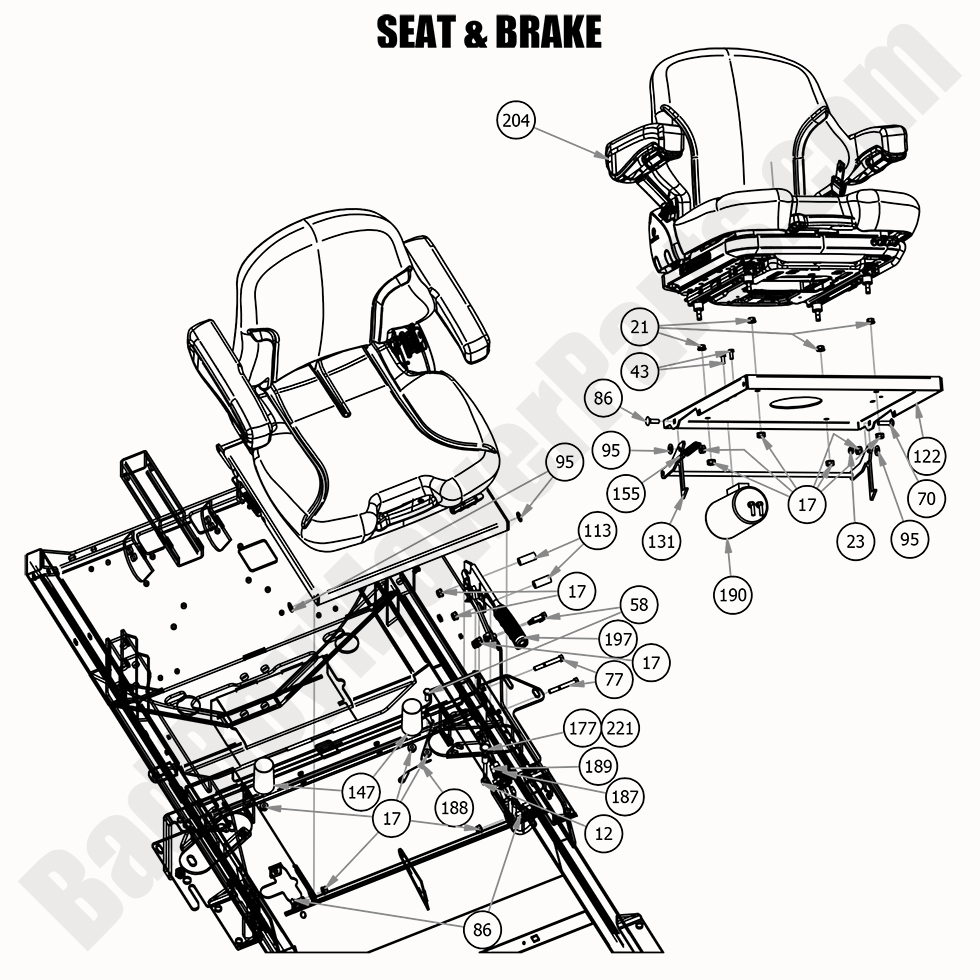

2020 Renegade - Gas - Seat & Brake

2020 Renegade - Gas - Seat & Brake

The 2020 Renegade - Gas Seat & Brake system is crucial for both comfort and safety while operating your mower. The seat provides a comfortable platform for the operator, while the brake system ensures control and stability. If either part starts to degrade, it’s important to replace it with high-quality Bad Boy Mower Parts to maintain both comfort and safety. At BadBoyMowerParts.com, we offer a full range of Bad Boy Lawn Mower Parts, including seats, brake components, and related parts. Our Bad Boy Mower Part diagrams will help you easily locate the exact parts you need for your 2020 Renegade - Gas. You can easily order Bad Boy Parts Online, and with Free Shipping On Orders Over $100, keeping your mower in top condition has never been easier. Enhance your comfort and ensure your safety with the right replacement parts for your seat and brake system.

Bad Boy Mower Parts Lookup

2020 Renegade - Gas - Seat & Brake
  Position Number SKU Product Title Price
12 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
21 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
23 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
43 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
58 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
70 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
77 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
86 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
95 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
113 025-0027-00 025-0027-00 - Brake Handle Spacer.625 x 1.5 2019-2022 Rebel, Renegade & Rogue
$7.25
122 026-2019-00 026-2019-00 - Seat Plate 2019-2024 Rebel, Renegade & Rogue
$99.32
131 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
147 032-0001-00 032-0001-00 - Rubber Bumper (Seat) 2019-2022 Rebel, Renegade & Rogue
$23.41
155 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
187 064-8054-00 064-8054-00 - Short Brake Cable-Suspension Models (See Models Used On For Details)
$51.47
188 064-8081-00 064-8081-00 - Seat Cable
$15.60
189 064-9002-00 064-9002-00 - Long Brake Cable- 2019-2025 Renegade, Rogue
$51.47
190 067-0020-19 067-0020-19 - EPA Cannister Assembly Rebel/Renegade Gas/Rogue (See Models Used On For Details)
$47.62
197 069-0001-00 069-0001-00 - Brake Handle Assembly (See Models Used On For Details)
$132.68
204 071-5065-00 071-5065-00 - 2019 - 2021 Seat with Seatbelt with ROPS (See Models Used On For Details)
$899.99
221 089-2000-00 089-2000-00 - Code Indicator Light-Yamaha
$21.39
