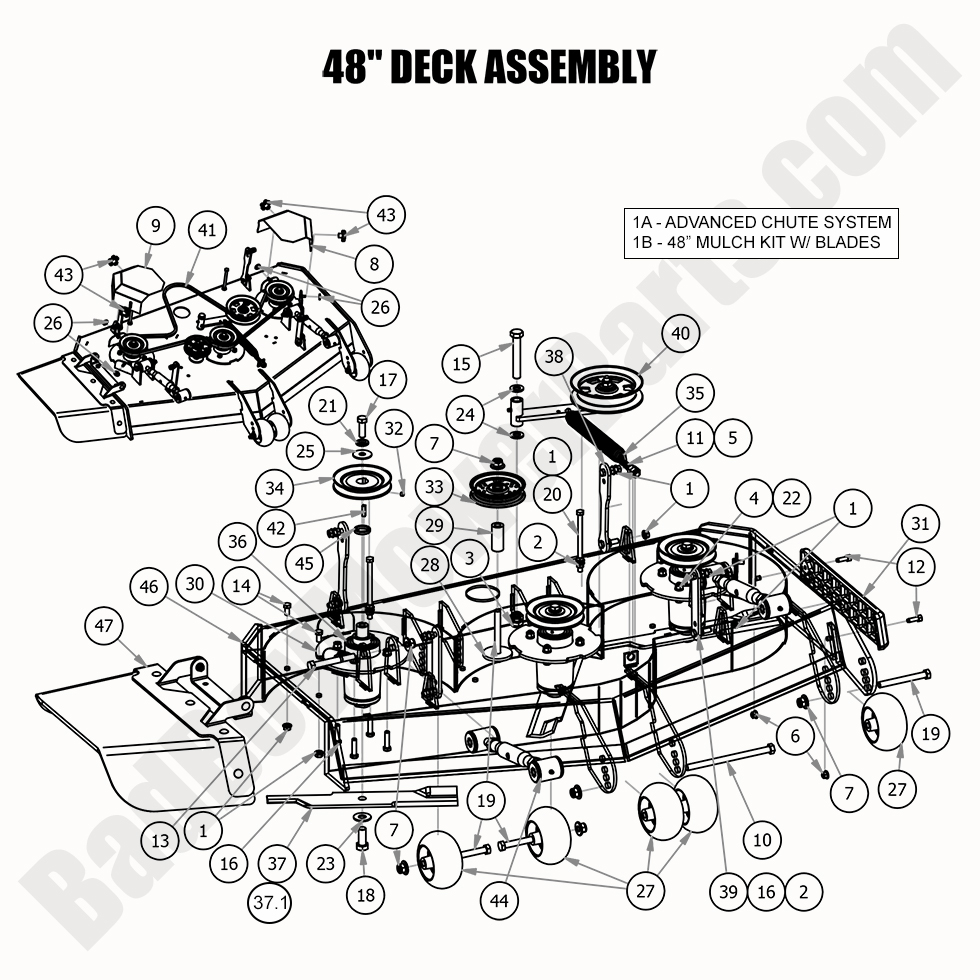

2020 Revolt - 48" Deck Assembly

2020 Revolt - 48" Deck Assembly

The 2020 Revolt 48" Deck Assembly provides superior cutting performance for larger yards, and BadBoyMowerParts.com offers all the necessary parts to keep it in optimal working condition. From blades and pulleys to belt assemblies and spindles, we carry a wide selection of Bad Boy Mower Parts for your deck. The 48" deck is engineered for precision, durability, and maximum efficiency, ensuring your mowing experience is smooth and effortless. We provide Bad Boy Lawn Mower Parts and offer easy access to detailed Bad Boy Mower Part diagrams to assist you in selecting the right components for your mower. With Free Shipping On Orders Over $100, you can easily find the parts you need and have them delivered directly to your door. Whether you're replacing parts or performing regular maintenance, our online store makes it simple to order Bad Boy Parts Online and keep your 2020 Revolt running at its best.

Bad Boy Mower Parts Lookup

2020 Revolt - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6048-00 088-6048-00 - Advanced Chute System for Revolt 48", 54", and 61" Decks
$249.00
1B 210-0349-00 210-0349-00 - Revolt 48" Mulch Kit w/Blades
$318.45
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
4 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
5 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-4813-00 014-4813-00 - 48" Trim Side Pulley Cover
$26.74
9 014-4814-00 014-4814-00 - 48" Discharge Side Pulley Cover
$25.88
10 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
11 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
12 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
13 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
14 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
15 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
16 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
17 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
18 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
19 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
20 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
21 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
22 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
23 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
24 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
25 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
26 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
27 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
28 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
29 025-0032-00 025-0032-00 - Stationary Idler Spacer (See Models Used On For Details)
$8.46
30 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
31 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
32 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
33 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
34 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
35 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
36 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
37.1 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
37 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
38 039-2128-00 039-2128-00 - Stand On Deck Hanger Rear (See Models Used On For Details)
$14.19
39 039-2129-00 039-2129-00 - Stand On Deck Hanger Front (See Models Used On For Detail)
$16.04
40 039-6945-19 039-6945-19 - Revolt Deck Idler Assembly
$70.97
41 041-5200-00 041-5200-00 - Deck Belt (Not for 48"/50" ZT)
$80.24
42 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
43 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
44 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
45 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
46 060-1148-19 060-1148-19 - 2019-2022 Revolt 48" Sloped Deck Welded Assembly
$799.99
47 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
