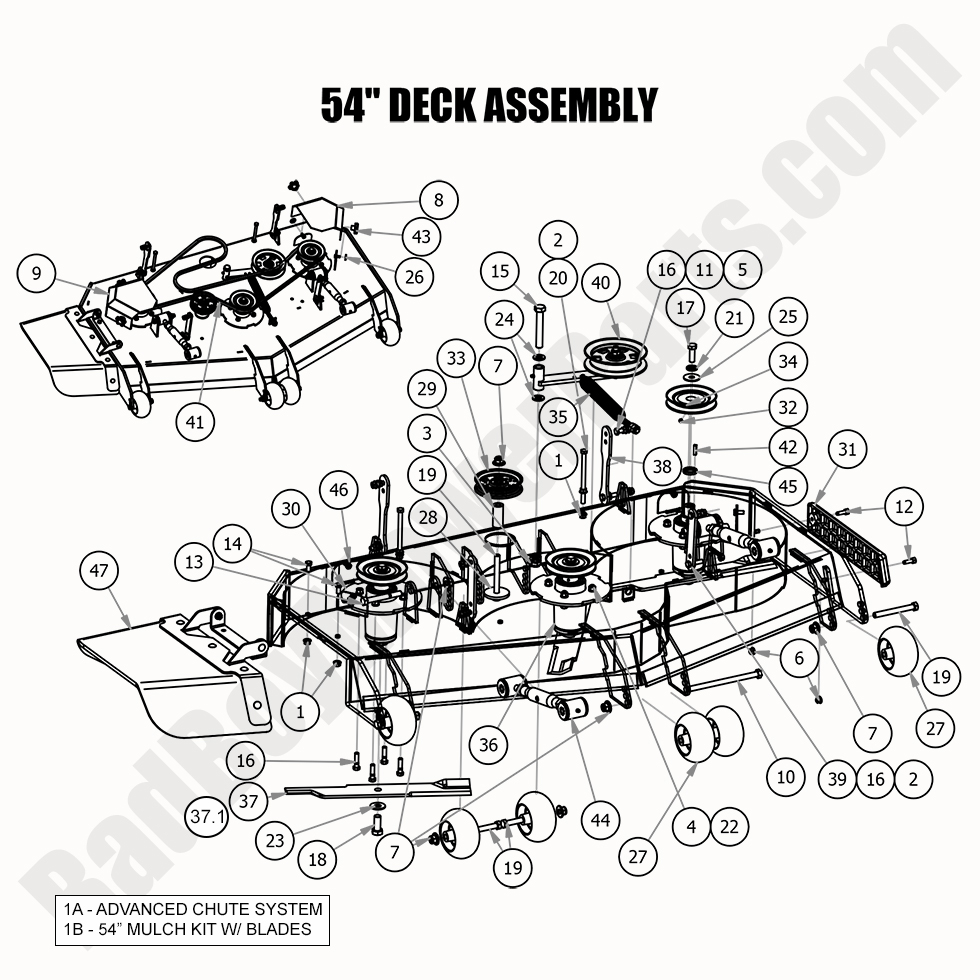

2020 Revolt - 54" Deck Assembly

2020 Revolt - 54" Deck Assembly

The 2020 Revolt 54" Deck Assembly is built for those who require larger cutting width and enhanced efficiency. At BadBoyMowerParts.com, we stock a comprehensive range of Bad Boy Mower Parts for this deck, including replacement blades, belt assemblies, and other essential components. Our Bad Boy Lawn Mower Parts are designed to provide a perfect fit and exceptional durability, ensuring that your mower performs at its peak. We also offer Bad Boy Mower Part diagrams that make it easy to identify the exact parts you need for your deck. With Free Shipping On Orders Over $100, shopping for the parts you require has never been easier. Keep your 2020 Revolt in top condition with the right parts for the 54" deck. Order Bad Boy Parts Online from our website and get everything you need for a smooth, efficient mowing experience. We are committed to providing quality parts and outstanding service.

Bad Boy Mower Parts Lookup

2020 Revolt - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6048-00 088-6048-00 - Advanced Chute System for Revolt 48", 54", and 61" Decks
$249.00
1B 210-0354-00 210-0354-00 - 54" Mulch Kit w/Blades (Not for MZ or Avenger) (See Models Used On for Detail)
$318.45
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
4 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
5 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-4811-00 014-4811-00 - Trim Side Pulley Cover (See Models Used On For Details)
$16.04
9 014-4812-00 014-4812-00 - 54" Discharge Side Pulley Cover (See Models Used On For Detail)
$26.74
10 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
11 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
12 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
13 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
14 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
15 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
16 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
17 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
18 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
19 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
20 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
21 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
22 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
23 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
24 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
25 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
26 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
27 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
28 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
29 025-0032-00 025-0032-00 - Stationary Idler Spacer (See Models Used On For Details)
$8.46
30 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
31 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
32 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
33 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
34 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
35 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
36 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
37.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
37 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
38 039-2128-00 039-2128-00 - Stand On Deck Hanger Rear (See Models Used On For Details)
$14.19
39 039-2129-00 039-2129-00 - Stand On Deck Hanger Front (See Models Used On For Detail)
$16.04
40 039-6945-19 039-6945-19 - Revolt Deck Idler Assembly
$70.97
41 041-0120-00 041-0120-00 - Deck Belt (See Models Used On For More Details - Not for 54" MZ)
$88.80
42 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
43 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
44 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
45 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
46 060-1154-19 060-1154-19 - 2019-2022 Revolt 54" Sloped Deck Welded Assembly
$1299.99
47 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
